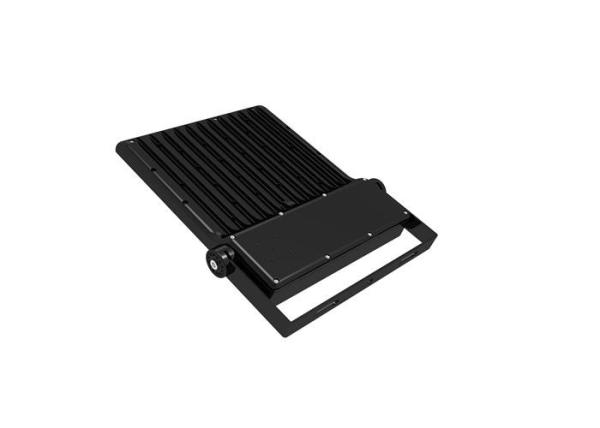

50W Aluminium Housing LED Flood Light IP66 Waterproof With Adjustable Beam Angle
50W Aluminium Housing LED Flood Light IP66 Waterproof With Adjustable Beam Angle
50W Aluminium Housing LED Flood Light IP66 Waterproof With Adjustable Beam Angle
50W Aluminium Housing LED Flood Light IP66 Waterproof With Adjustable Beam Angle
Specifications
Brand Name :
DUALRAYS
Model Number :
DR-FL050-CGXX
Certification :
CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Place of Origin :
Shenzhen,China
MOQ :
2PCS
Price :
Negotiated
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
5-15 Bussiness Day
Packaging Details :
Netural Package/OEM and ODM Package Available
Supply Ability :
50000PCS/Month
Material :
Aluminium Alloy
LED's Brand :
LUMILEDS
CRI :
>83Ra
IP Rating :
IP66
Warranty :
5 Years
Life Span :
50,000 Hours
Description

50W Aluminium Housing LED Flood Light IP66 Waterproof With Adjustable Beam Angle
50W Aluminium Housing LED Flood Light IP66 Waterproof With Adjustable Beam Angle

Options:
> Driver: Sosen,Meanwell ELG/HLG driver;
> Controls and Dimming: 1-10V, DALI,PWM,Zigbee;
> Surge Protection Device: Meanwell SPD-20 20KV Surge Protector;
> Lens : Symmetrical 30°/60°/90°/120°,Asymmetrical/Type II / Type III / Type IV;
> Microwave Motion Sensor;

50W Aluminium Housing LED Flood Light IP66 Waterproof With Adjustable Beam Angle
> Airports & Harbors
> Billboard illumination
> Large recreational sports facilities
> Industrial areas & Landscape buildings
> Roundabouts and motorway junctions

50W Aluminium Housing LED Flood Light IP66 Waterproof With Adjustable Beam Angle
Model No.
 DR-FL050-CGXX DR-FL100-CGXX DR-FL150-CGXX DR-FL200-CGXX DR-FL300-CGXX
System Watts/W
 50W 100W 150W 200W
300W
System Efficiency/LPW
 120~125LPW
Lumen Output/lm
 6.500±5% 12.500±5% 18.750±5% 25.000±5% 37.500±5%
Rated Input Voltage/V
 AC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional)
LEDs Light Source
 SMD3030
SDCM
 <5
CCT/K
 5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra
 >70Ra (>80Ra for Option)
Power Factor
 >0.95
THD
 <10%
Beam Angle(Optional)
 Symmetrical 30°/60°/90°/120°,Asymmetrical/Type II / Type III / Type IV beam angle optional
UGR
 <25
Surge Protection
 6~10KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver
 Sosen,Meanwell ELG / HLG Optional
IP Rating
 IP65
Dimming(Optional)
 1-10V, DALI,PWM,Zigbee for Option
Safety Protection Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection
Sensor (Optional) Motion Sensor
Protection Class
 ClassⅠ
Finishing Color(Optional)
 Black RAL9017(Standard) / White RAL9016 Optional
Material
 Aluminum+Toughened Glass
Lifespan/hrs
 62.000 Hrs (Ta=30℃@L70)
Operation Temp/℃
 40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃
 - 40°C to + 65°C(-40°F to 149°F)
Switching Cycles 100,000 Times
Certificate
 CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

50W Aluminium Housing LED Flood Light IP66 Waterproof With Adjustable Beam Angle
Character/Power
100W
150W
200W
240W
300W
50W Aluminium Housing LED Flood Light IP66 Waterproof With Adjustable Beam Angle
A / mm
389
389
437
493
582
B / mm
297
297
346
379
444
C / mm
57
57
57
57
60

50W Aluminium Housing LED Flood Light IP66 Waterproof With Adjustable Beam Angle
50W Aluminium Housing LED Flood Light IP66 Waterproof With Adjustable Beam Angle
50W Aluminium Housing LED Flood Light IP66 Waterproof With Adjustable Beam Angle
50W Aluminium Housing LED Flood Light IP66 Waterproof With Adjustable Beam Angle50W Aluminium Housing LED Flood Light IP66 Waterproof With Adjustable Beam Angle
50W Aluminium Housing LED Flood Light IP66 Waterproof With Adjustable Beam Angle

50W Aluminium Housing LED Flood Light IP66 Waterproof With Adjustable Beam Angle

50W Aluminium Housing LED Flood Light IP66 Waterproof With Adjustable Beam Angle

50W Aluminium Housing LED Flood Light IP66 Waterproof With Adjustable Beam Angle

50W Aluminium Housing LED Flood Light IP66 Waterproof With Adjustable Beam Angle

50W Aluminium Housing LED Flood Light IP66 Waterproof With Adjustable Beam Angle
Model No.
Net Weight/Kg
Outer Carton Size/mm
Gross Weight/Kg
QTY”/CTN
DR-FL050-CGXX
3.6
355*350*165
4.5
1PCS/CTN
DR-FL100-CGXX
3.8
355*350*165
4.7
1PCS/CTN
DR-FL150-CGXX
4.5
415*410*175
5.8
1PCS/CTN
DR-FL200-CGXX
5.7
475*470*195
7.3
1PCS/CTN
DR-FL300-CGXX
9.3
475*470*195
11.5
1PCS/CTN

50W Aluminium Housing LED Flood Light IP66 Waterproof With Adjustable Beam Angle
50W Aluminium Housing LED Flood Light IP66 Waterproof With Adjustable Beam Angle

50W Aluminium Housing LED Flood Light IP66 Waterproof With Adjustable Beam Angle

50W Aluminium Housing LED Flood Light IP66 Waterproof With Adjustable Beam Angle
50W Aluminium Housing LED Flood Light IP66 Waterproof With Adjustable Beam Angle

Q1: What is the Lead time?
RE: Normally 3-5 business days for samples, 10-15 business days for bulk orders.
Q2: Do you offer OEM or ODM?
RE: OEM and ODM service with customers‘ label is available,various choice for the package as below:
1. We can provide you with our present products with your own label;
2. We can modify our products as your request;
3. We can even develop totally new products based on your design;
Q3: What‘re the chips and drivers used?
RE: High brightness San‘an SMD2835 LEDs light source,flicker free drivers for option.
Q4: IP Rating?
RE: IP66.

Q5: Dimming functions?
RE: PIR sensor,Emergency,1-10V,DALI,Microwave sensor is available.

Q6:Can we get support if we have our own market position?
RE: Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.
