135lm/w 50W Flat LED Floodlights With PC Lense Tempered Glass flexible optics for all occasions
135lm/w 50W Flat LED Floodlights With PC Lense Tempered Glass flexible optics for all occasions
135lm/w 50W Flat LED Floodlights With PC Lense Tempered Glass flexible optics for all occasions
135lm/w 50W Flat LED Floodlights With PC Lense Tempered Glass flexible optics for all occasions
135lm/w 50W Flat LED Floodlights With PC Lense Tempered Glass flexible optics for all occasions
135lm/w 50W Flat LED Floodlights With PC Lense Tempered Glass flexible optics for all occasions
Specifications
Brand Name :
DUALRAYS
Model Number :
DR-FL050-CG2
Certification :
CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Place of Origin :
Shenzhen,China
MOQ :
1pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000PCS/Month
Delivery Time :
5-15 Bussiness Day
Packaging Details :
Netural Package/OEM and ODM Package Available
Power :
50-300W
Efficiency :
135lm/w
Material :
Aluminium and Glass
CCT :
3000/4000/5700/6500K±200K
Power Factor :
0.95
IP Rating :
IP66
Description

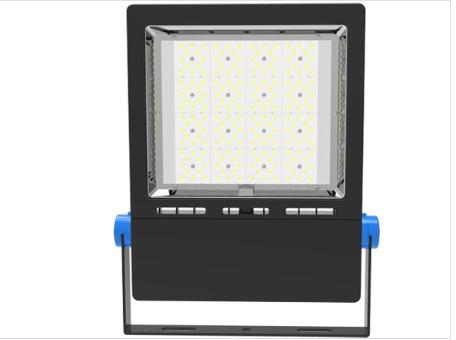

50W Flat LED Floodlights with PC Lense and Tempered Glass

135lm/w 50W Flat LED Floodlights With PC Lense Tempered Glass flexible optics for all occasions

> Precision Integrated Die-casting ADC12 AL,Excellent Thermal Conductivity;

> High Brightness LUMILEDS LUXEON SMD3030 2D LEDs, SOSEN/Meanwell ELG/HLG Driver;

> Built-in Plug and Play Motion Sensor with Compact Structure;

> IP65 / IK10 Protection;

> L70/B20 @ 62.000h;

Application

> Airports & Harbors

> Billboard illumination

> Large recreational sports facilities

> Industrial areas & Landscape buildings

> Roundabouts and motorway junctions

Model No.
 DR-FL050-CGXX DR-FL100-CGXX DR-FL150-CGXX DR-FL200-CGXX DR-FL300-CGXX
System Watts/W
 50W 100W 150W 200W
300W
System Efficiency/LPW
 120~125LPW
Lumen Output/lm
 6.500±5% 12.500±5% 18.750±5% 25.000±5% 37.500±5%
Rated Input Voltage/V
 AC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional)
LEDs Light Source
 SMD3030
SDCM
 <5
CCT/K
 5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra
 >70Ra (>80Ra for Option)
Power Factor
 >0.95
THD
 <10%
Beam Angle(Optional)
 Symmetrical 30°/60°/90°/120°,Asymmetrical/Type II / Type III / Type IV beam angle optional
UGR
 <25
Surge Protection
 6~10KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver
 Sosen,Meanwell ELG / HLG Optional
IP Rating
 IP65
Dimming(Optional)
 1-10V, DALI,PWM,Zigbee for Option
Safety Protection Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection
Sensor (Optional) Motion Sensor
Protection Class
 ClassⅠ
Finishing Color(Optional)
 Black RAL9017(Standard) / White RAL9016 Optional
Material
 Aluminum+Toughened Glass
Lifespan/hrs
 62.000 Hrs (Ta=30℃@L70)
Operation Temp/℃
 40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃
 - 40°C to + 65°C(-40°F to 149°F)
Switching Cycles 100,000 Times
Certificate
 CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

135lm/w 50W Flat LED Floodlights With PC Lense Tempered Glass flexible optics for all occasions
> Airports & Harbors
> Billboard illumination
> Large recreational sports facilities
> Industrial areas & Landscape buildings
> Roundabouts and motorway junctions

135lm/w 50W Flat LED Floodlights With PC Lense Tempered Glass flexible optics for all occasions

135lm/w 50W Flat LED Floodlights With PC Lense Tempered Glass flexible optics for all occasions

135lm/w 50W Flat LED Floodlights With PC Lense Tempered Glass flexible optics for all occasions

135lm/w 50W Flat LED Floodlights With PC Lense Tempered Glass flexible optics for all occasions

135lm/w 50W Flat LED Floodlights With PC Lense Tempered Glass flexible optics for all occasions

135lm/w 50W Flat LED Floodlights With PC Lense Tempered Glass flexible optics for all occasions

135lm/w 50W Flat LED Floodlights With PC Lense Tempered Glass flexible optics for all occasions

135lm/w 50W Flat LED Floodlights With PC Lense Tempered Glass flexible optics for all occasions

135lm/w 50W Flat LED Floodlights With PC Lense Tempered Glass flexible optics for all occasions

Model No.
Net Weight/Kg
Outer Carton Size/mm
Gross Weight/Kg
QTY”/CTN
DR-FL050-CGXX
3.6
355*350*165
4.5
1PCS/CTN
DR-FL100-CGXX
3.8
355*350*165
4.7
1PCS/CTN
DR-FL150-CGXX
4.5
415*410*175
5.8
1PCS/CTN
DR-FL200-CGXX
5.7
475*470*195
7.3
1PCS/CTN
DR-FL300-CGXX
9.3
475*470*195
11.5
1PCS/CTN
