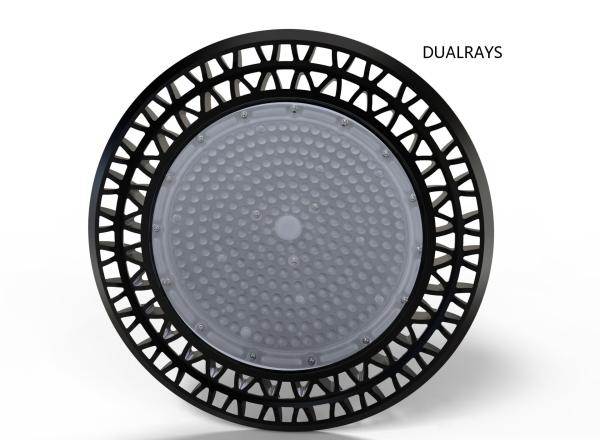

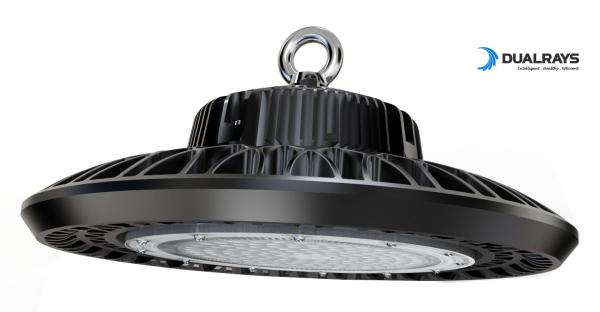

120° Beam Angle LED High Bay Light Fittings Dualrays 150W Source For Shipyard / Mines
120° Beam Angle LED High Bay Light Fittings Dualrays 150W Source For Shipyard / Mines
120° Beam Angle LED High Bay Light Fittings Dualrays 150W Source For Shipyard / Mines
120° Beam Angle LED High Bay Light Fittings Dualrays 150W Source For Shipyard / Mines
120° Beam Angle LED High Bay Light Fittings Dualrays 150W Source For Shipyard / Mines
120° Beam Angle LED High Bay Light Fittings Dualrays 150W Source For Shipyard / Mines
120° Beam Angle LED High Bay Light Fittings Dualrays 150W Source For Shipyard / Mines
120° Beam Angle LED High Bay Light Fittings Dualrays 150W Source For Shipyard / Mines
Specifications
Brand Name :
DUALRAYS
Model Number :
HB5
Certification :
CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Place of Origin :
Shenzhen,China
MOQ :
2PCS
Price :
Negotiated
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
5-15 Bussiness Day
Packaging Details :
Netural Package/OEM and ODM Package Available
Supply Ability :
50000PCS/Month
Junction Temperature :
<80℃
CRI :
>83Ra
LED's Brand :
LUMILEDS
UGR :
<25
THD :
<10%
Life Span :
50,000 Hours
Description

120° Beam Angle LED High Bay Light Fittings Dualrays 150W Source For Shipyard / Mines

Detailed Product Description

Item No.: DR-HB200-EG1 LED's Brand: LUMILEDS
UGR: <25 IP Rating: IP66
THD: <10% Beam Angle: 60°/90°/120°
Life Span: 50,000 Hours Dimming Function: 1-10VDC /DALI / PIR Sensor



120° Beam Angle LED High Bay Light Fittings Dualrays 150W Source For Shipyard / Mines

120° Beam Angle LED High Bay Light Fittings Dualrays 150W Source For Shipyard / Mines

> Mrcrowave sensor and Zigbee controlling are Optional;
> Reflector : PC reflector with / without cover.pipe mounting;
> Adjustable ripple-lens optic with 60°/90°/120° beam angle;
> Big spaces between Driver and housing separated for smooth air fluent;
> Die casting Aluminum shell;
> Multiple Installation: Mounting brackets is optional for different application；
> Designing for Industrial area projects;
> L80/B10 >50.000h;


120° Beam Angle LED High Bay Light Fittings Dualrays 150W Source For Shipyard / Mines
* Workshops
* High rooms and halls
* Factory
* Yard
* Supermarkets

120° Beam Angle LED High Bay Light Fittings Dualrays 150W Source For Shipyard / Mines

Character/Power
100W
150W
200W
240W
120° Beam Angle LED High Bay Light Fittings Dualrays 150W Source For Shipyard / Mines
A
Ø350mm
Ø350mm
Ø420mm
Ø420mm
B
210mm
210mm
220mm
220mm


120° Beam Angle LED High Bay Light Fittings Dualrays 150W Source For Shipyard / Mines

120° Beam Angle LED High Bay Light Fittings Dualrays 150W Source For Shipyard / Mines

120° Beam Angle LED High Bay Light Fittings Dualrays 150W Source For Shipyard / Mines
120° Beam Angle LED High Bay Light Fittings Dualrays 150W Source For Shipyard / Mines
120° Beam Angle LED High Bay Light Fittings Dualrays 150W Source For Shipyard / Mines
120° Beam Angle LED High Bay Light Fittings Dualrays 150W Source For Shipyard / Mines
120° Beam Angle LED High Bay Light Fittings Dualrays 150W Source For Shipyard / Mines
120° Beam Angle LED High Bay Light Fittings Dualrays 150W Source For Shipyard / Mines
Packaging Information

Model No.
Net Weight/PCS
Outer Carton Size
G.W
Quantity/CTN
DR-HB100-CG2
5.7kg
L415xW390XH205mm
6.5kg
1PCS
DR-HB150-CG2
6.5kg
L415xW390XH205mm
7.6kg
1PCS
DR-HB200-CG2
7.2kg
L485xW460xH225mm
8.4kg
1PCS
DR-HB240-CG2
7.5kg
L485xW460xH225mm
8.6kg
1PCS


Shipment
120° Beam Angle LED High Bay Light Fittings Dualrays 150W Source For Shipyard / Mines
Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.

120° Beam Angle LED High Bay Light Fittings Dualrays 150W Source For Shipyard / Mines

Q1: What is the warranty for the HB5 LED high bay?
RE: For the HB5 Series LED high bay,Dualrays provide 5 years warranty.If any quality problems on our side occured in this period ,we will take on the shipping cost and replacement.

Q2: What is colour temperature?
RE: Dualrays‘ LED lighting offer lamps in warm white, natural white,pure white and cool white with colour temperatures measured in Kelvin (K). The lower the colour temperature is,
the warmer the light given by the LED:
Warm white = 3000±200K
Natural white = 4000±200K
Pure white = 5000±200K
Cool white = 5700±200K
Q3: Is there a MOQ?
RE: 2PCS.

Q4: What is the Lead time?

RE: Normally 3-5 business days for samples, 10-15 business days for bulk orders.

Q5: Can you do DIAlux Simulation?
RE: We have professional DIAlux team to support you, IES files also can be downloaded on our Website.

Q6: Do you offer mounting accessories?

RE: Yes, please contact us for details.

Q7: Do you offer OEM or ODM?
RE: OEM and ODM service with customers‘ label is available,various choice for the package as below:
1. We can provide you with our present products with your own label;
2. We can modify our products as your request;
3. We can even develop totally new products based on your design;
Q8: What‘re the chips and drivers used?
RE: High brightness LUMILEDS LEDs light source,Meanwell/Sose drivers for standard configuration.

Q9: What is the CRI?

RE: Ra>80 for standard.

Q10: IP Rating?
RE: IP65.

Q11: Labeling ?
RE: Neutral labeling/ Custom designed labels / Laser printing labels (at request).

Q12: Finish color?
RE: Standard colors: Black / White,other colors can be customized, based on MOQ 50PCS.

Q13: Dimming functions?
RE: DALI,PIR,1-10V diming available,built-in daylight sensor available for intellgent control for option.

Q14: Is there cheap shipping cost to import to our country?
RE: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much time.For urgent
orders,we suggest via air to airport plus our ship partner send to your door.

Q15:Can we get support if we have our own market position?
RE: Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.

120° Beam Angle LED High Bay Light Fittings Dualrays 150W Source For Shipyard / Mines

120° Beam Angle LED High Bay Light Fittings Dualrays 150W Source For Shipyard / Mines

120° Beam Angle LED High Bay Light Fittings Dualrays 150W Source For Shipyard / Mines

120° Beam Angle LED High Bay Light Fittings Dualrays 150W Source For Shipyard / Mines

120° Beam Angle LED High Bay Light Fittings Dualrays 150W Source For Shipyard / Mines

120° Beam Angle LED High Bay Light Fittings Dualrays 150W Source For Shipyard / Mines

120° Beam Angle LED High Bay Light Fittings Dualrays 150W Source For Shipyard / Mines

120° Beam Angle LED High Bay Light Fittings Dualrays 150W Source For Shipyard / Mines

120° Beam Angle LED High Bay Light Fittings Dualrays 150W Source For Shipyard / Mines
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
