SMD5050 DALI PWM LED Sports Ground Floodlights CE ENEC For Football Arenas
SMD5050 DALI PWM LED Sports Ground Floodlights CE ENEC For Football Arenas
SMD5050 DALI PWM LED Sports Ground Floodlights CE ENEC For Football Arenas
SMD5050 DALI PWM LED Sports Ground Floodlights CE ENEC For Football Arenas
SMD5050 DALI PWM LED Sports Ground Floodlights CE ENEC For Football Arenas
SMD5050 DALI PWM LED Sports Ground Floodlights CE ENEC For Football Arenas
SMD5050 DALI PWM LED Sports Ground Floodlights CE ENEC For Football Arenas
SMD5050 DALI PWM LED Sports Ground Floodlights CE ENEC For Football Arenas
Specifications
Brand Name :
Dualrays Optoelectronics
Model Number :
DR-SP400-FGXP
Certification :
CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Place of Origin :
Shenzhen,China
MOQ :
2PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000PCS/Month
Delivery Time :
5-15 Bussiness Day
Packaging Details :
Netural Package/OEM and ODM Package Available
Luminaire Efficiency: :
150LPW
LED Driver :
Meanwell ELG / HLG Optional
IP Grade :
IP66
Power Factory :
>0.95
CCT :
3000K-6500K
Installations: :
Ground/Wall/Ceiling/Pipe
Description

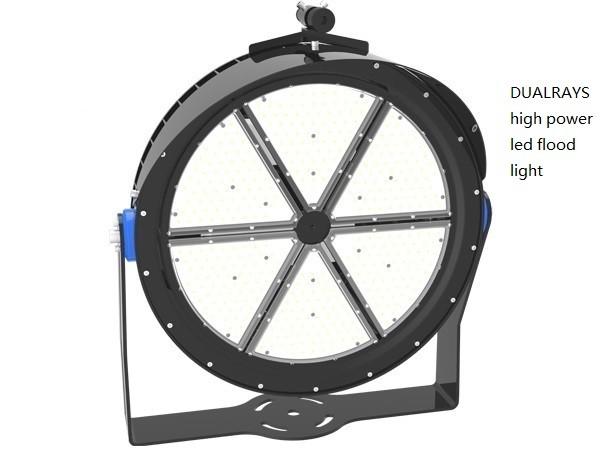

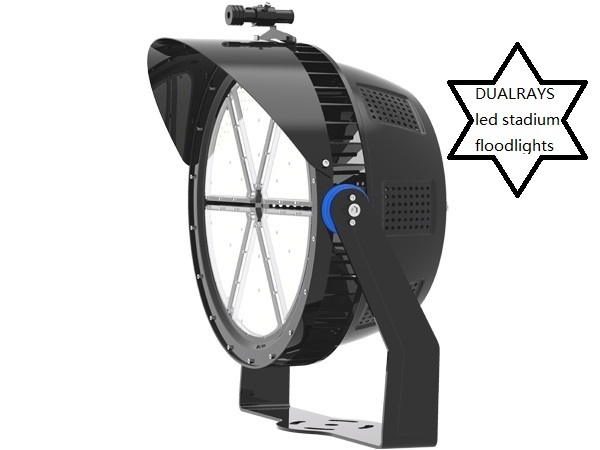

LED Sports LED Flood Light SMD5050 DALI PWM With CE ENEC For Football Arenas

SMD5050 DALI PWM LED Sports Ground Floodlights CE ENEC For Football Arenas
Options:

> Driver: Meanwell ELG/HLG driver;
> Controls and Dimming: 1-10V, DALI,PWM,Zigbee for Option;
> Surge Protection Device: Meanwell SPD-20 20KV Surge Protector;

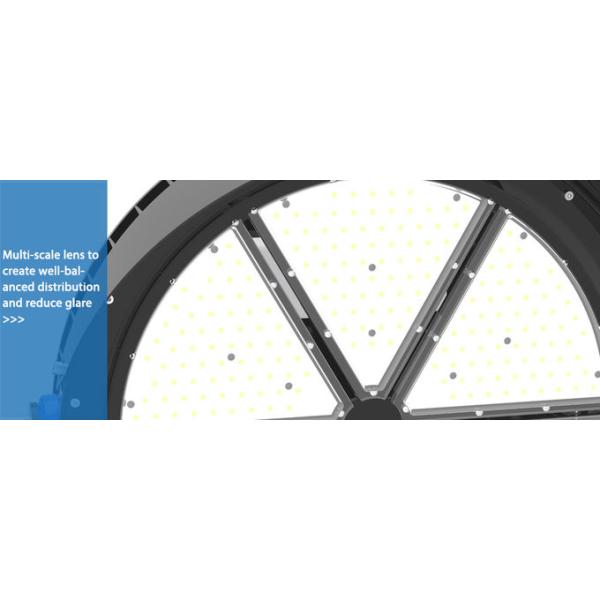

> Lens : Symmetrical 30°/60°/90° beam angle optional;

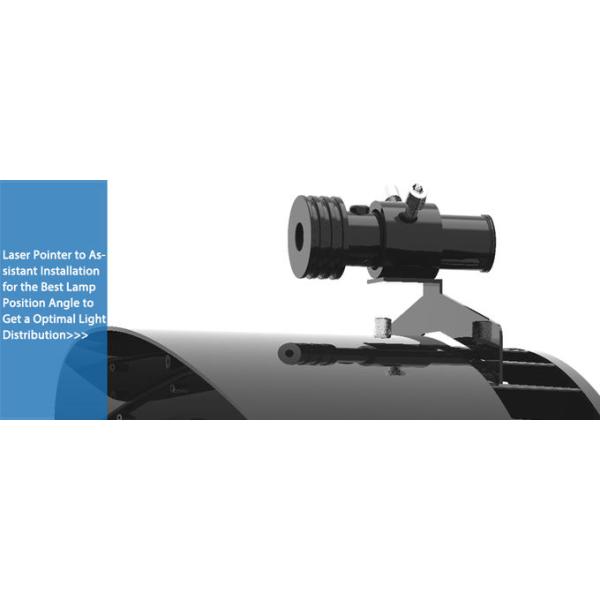

> Aiming Device: Laser Pointer;
SMD5050 DALI PWM LED Sports Ground Floodlights CE ENEC For Football Arenas
SMD5050 DALI PWM LED Sports Ground Floodlights CE ENEC For Football Arenas
> Multiple and multipurpose sports facilities and arenas
> Stadiums and Racing tracks
> Public squares
> Outdoor arenas
> Indoor sports arenas and halls

SMD5050 DALI PWM LED Sports Ground Floodlights CE ENEC For Football Arenas
Model No.
 DR-SPL300-FGXP DR-SPL400-FGXP DR-SPL600-FGXP DR-SPL800-FGXP
System Watts/W
 300W 400W 600W 800W
System Efficiency/LPW
 150LPW
Lumen Output/lm
 45.000±5% 60.000±5% 90.000±5% 120.000±5%
Rated Input Voltage/V
 AC100~277V, 50/60Hz
LEDs Light Source
 SMD5050
SDCM
 <5
CCT/K
 5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra
 >70Ra (>80Ra for Option)
Power Factor
 >0.95
THD
 <10%

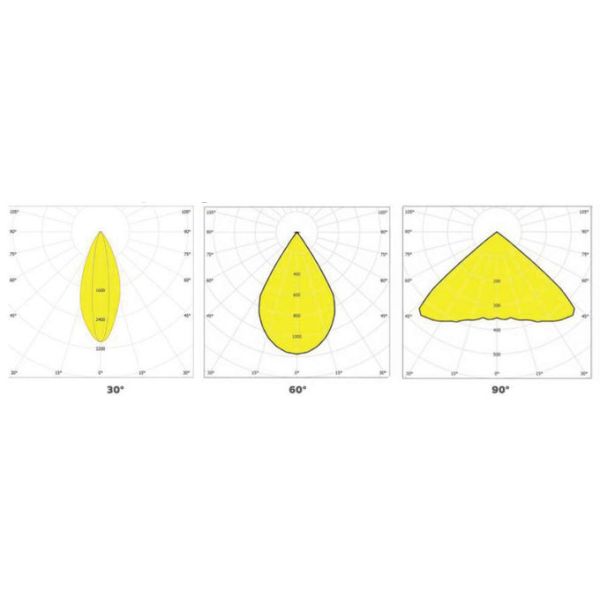

Beam Angle(Optional)
 30°/60°/90°
UGR
 <25
Surge Protection
 4~6KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver
 Meanwell ELG / HLG Optional
IP Rating
 IP65
Dimming(Optional)
 1-10V, DALI,PWM,Zigbee for Option
Safety Protection Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection
Start Time 0.5s
Protection Class
 ClassⅠ
Finishing Color(Optional)
 Black RAL9017(Standard) / White RAL9016 Optional
Material
 Aluminum+PC
Lifespan/hrs
 70.000 Hrs (Ta=30℃@L70)
Operation Temp/℃
 40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃
 - 40°C to + 65°C(-40°F to 149°F)
Switching Cycles 100,000 Times
Certificate
 CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

SMD5050 DALI PWM LED Sports Ground Floodlights CE ENEC For Football Arenas
Character/Power
300W
400W
600W
800W
SMD5050 DALI PWM LED Sports Ground Floodlights CE ENEC For Football ArenasSMD5050 DALI PWM LED Sports Ground Floodlights CE ENEC For Football Arenas
A / mm
Ø445
Ø445
Ø537
Ø537
B / mm
321
321
373
373

SMD5050 DALI PWM LED Sports Ground Floodlights CE ENEC For Football Arenas
SMD5050 DALI PWM LED Sports Ground Floodlights CE ENEC For Football Arenas

SMD5050 DALI PWM LED Sports Ground Floodlights CE ENEC For Football Arenas
SMD5050 DALI PWM LED Sports Ground Floodlights CE ENEC For Football Arenas
SMD5050 DALI PWM LED Sports Ground Floodlights CE ENEC For Football Arenas

SMD5050 DALI PWM LED Sports Ground Floodlights CE ENEC For Football Arenas
SMD5050 DALI PWM LED Sports Ground Floodlights CE ENEC For Football Arenas
SMD5050 DALI PWM LED Sports Ground Floodlights CE ENEC For Football Arenas
SMD5050 DALI PWM LED Sports Ground Floodlights CE ENEC For Football Arenas
SMD5050 DALI PWM LED Sports Ground Floodlights CE ENEC For Football Arenas
SMD5050 DALI PWM LED Sports Ground Floodlights CE ENEC For Football Arenas

SMD5050 DALI PWM LED Sports Ground Floodlights CE ENEC For Football Arenas
Model No.
Net Weight/Kg
Outer Carton Size/mm
Gross Weight/Kg
QTY”/CTN
DR-SPL300-FGXP
12.4
610*510*250
13.8
1PCS/CTN
DR-SPL400-FGXP
12.9
610*510*250
14.7
1PCS/CTN
DR-SPL600-FGXP
25.3
890*710*275
27.6
 1PCS/CTN
DR-SPL800-FGXP 25.9 890*710*275 28.8
1PCS/CTN

FAQ

Q1: What's the advantages of your SP6 flood light?

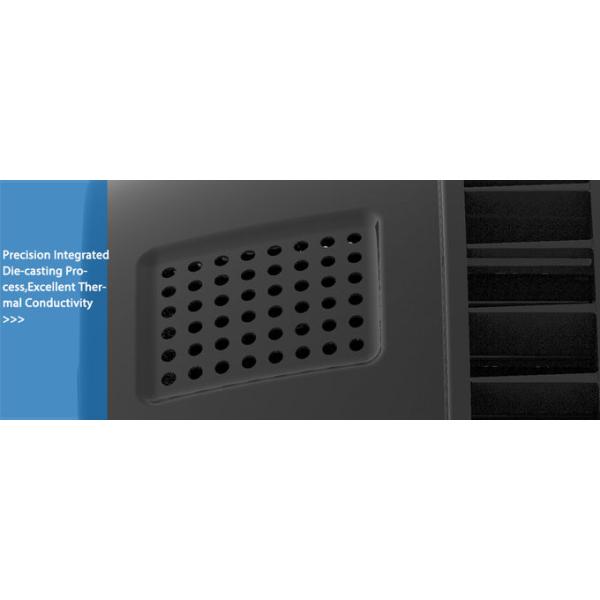

RE:● Pure aluminum integrated heat dissipation, fast heat conduction and excellent heat dissipation performance;

● Large power, small size, light weight, smaller windward area than traditional module lights, higher safety factor;

● Professional light distribution, the lens has a variety of angles such as narrow, medium and wide to choose from;

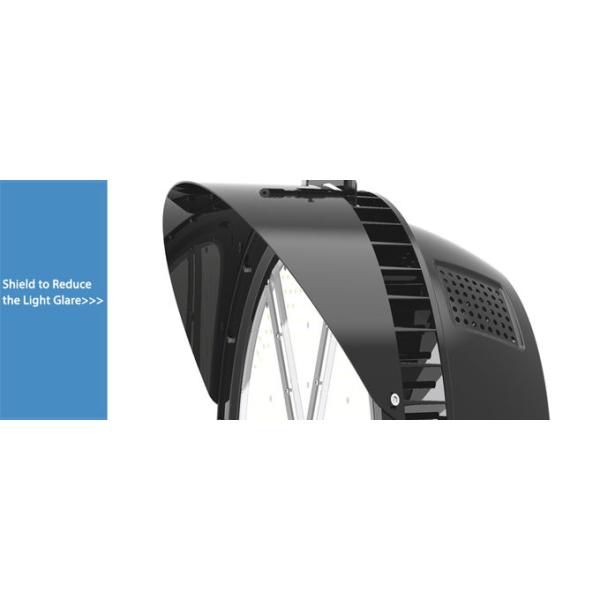

●Professional anti-spill light cover, effectively control the spilled light;

● Protection grade IP65, IK08, resistance to 16 gales, no fear of outdoor harsh environment.

In addition,we can provide our customers value added service with Dialux software for lighting design projects free of charge.
SMD5050 DALI PWM LED Sports Ground Floodlights CE ENEC For Football Arenas SMD5050 DALI PWM LED Sports Ground Floodlights CE ENEC For Football Arenas (DIALUX Simulation)

　　 Dualrays adheres to independent innovation, Dualraysers try to build a world well-known LED industrial lighting Brand
SMD5050 DALI PWM LED Sports Ground Floodlights CE ENEC For Football Arenas
(Partnership)
SMD5050 DALI PWM LED Sports Ground Floodlights CE ENEC For Football Arenas
SMD5050 DALI PWM LED Sports Ground Floodlights CE ENEC For Football Arenas
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
