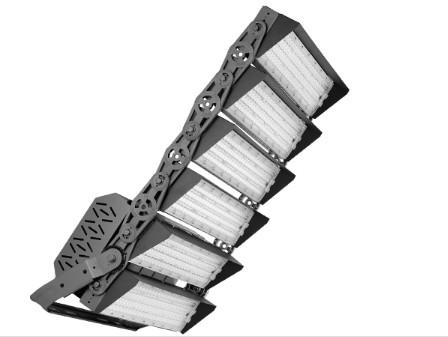

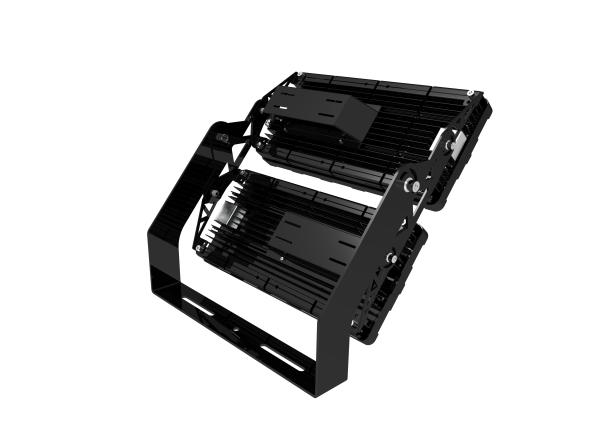

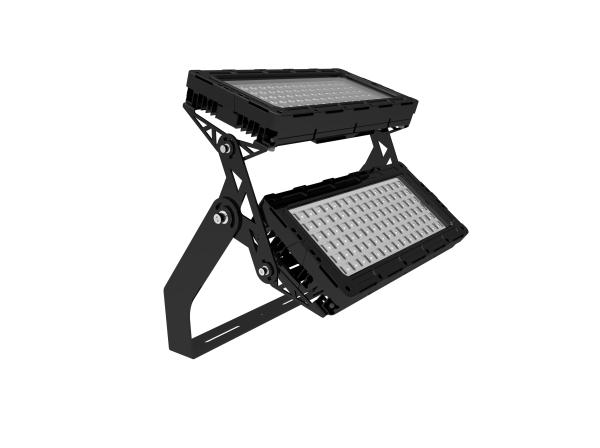

LED Stadium SMD5050 150lm/W 1800W DUALRAYS SP4 Light Stadium Lighting
LED Stadium SMD5050 150lm/W 1800W DUALRAYS SP4 Light Stadium Lighting
LED Stadium SMD5050 150lm/W 1800W DUALRAYS SP4 Light Stadium Lighting
LED Stadium SMD5050 150lm/W 1800W DUALRAYS SP4 Light Stadium Lighting
LED Stadium SMD5050 150lm/W 1800W DUALRAYS SP4 Light Stadium Lighting
LED Stadium SMD5050 150lm/W 1800W DUALRAYS SP4 Light Stadium Lighting
LED Stadium SMD5050 150lm/W 1800W DUALRAYS SP4 Light Stadium Lighting
LED Stadium SMD5050 150lm/W 1800W DUALRAYS SP4 Light Stadium Lighting
Specifications
Brand Name :
DUALRAYS
Model Number :
DR-SPXXX-DG2
Certification :
CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Place of Origin :
Shenzhen,China
MOQ :
1pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000PCS/Month
Delivery Time :
5-15 Bussiness Day
Packaging Details :
Netural Package/OEM and ODM Package Available
Power :
300-1800W
Efficiency :
150lm/w
Material :
Aluminium Alloy
CCT :
3000/4000/5700/6500K±200K
Power Factor :
0.95
IP Rating :
IP67
Description

DUALRAYS SP4 300W to 1800W Sport Flood Light Stadium Lighting

  • LUMILEDS LUXEON High Brightness SMD3030 /SMD5050 LEDs;
  • Meanwell ELG/HLG Driver;
  • IP66 Protection;
  • 25°/40°/50°/90°beam angle optional;
  • Adjustable mounting bracket for wall mast or suspending installation;
  • Air breather design to balance air pressure and moisture prevent;
  • Various intelligent control: 1-10V, DALI, PWM,Zigbee Wireless Dimming for option;
  • Customized supported for special projects Junction box for convenient wiring from the driver box

LED Stadium SMD5050 150lm/W 1800W DUALRAYS SP4 Light Stadium Lighting

LED Stadium SMD5050 150lm/W 1800W DUALRAYS SP4 Light Stadium Lighting

Model No.
 DR-SPL250-DGXX DR-SPL500-DGXX DR-SPL750-DGXX DR-SPL1000-DGXX DR-SPL1250-DGXX DR-SPL1500-DGXX
System Watts/W
 250W 500W 750W 1000W 1250W
1500W
System Efficiency/LPW
 150~160LPW
Lumen Output (Max) /lm
 40.000±5% 80.000±5% 120.000±5% 160.000±5% 200.000±5% 240.000±5%
Rated Input Voltage/V
 AC100~277V, 50/60Hz
LEDs Light Source
 SMD5050
SDCM
 <5
CCT/K
 5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra
 >70Ra (>80Ra for Option)
Power Factor
 >0.95
THD
 <10%
Beam Angle(Optional)
 20°/40°/60°/90°/140*60° Optional
UGR
 <25
Surge Protection
 4~6KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver
 Meanwell ELG/HLG
IP Rating
 IP66
Dimming(Optional)
 1-10V, DALI,PWM,Zigbee
Safety Protection Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection
Start Time 0.5s
Protection Class
 ClassⅠ
Finishing Color(Optional)
 Black RAL9017(Standard) / White RAL9016 Optional
Material
 Aluminum+PC
Lifespan/hrs
 70.000 Hrs (Ta=30℃@L70)
Operation Temp/℃
 40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃
 - 40°C to + 65°C(-40°F to 149°F)
Switching Cycles 100,000 Times
Certificate
 CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available


LED Stadium SMD5050 150lm/W 1800W DUALRAYS SP4 Light Stadium Lighting

LED Stadium SMD5050 150lm/W 1800W DUALRAYS SP4 Light Stadium Lighting

LED Stadium SMD5050 150lm/W 1800W DUALRAYS SP4 Light Stadium Lighting
LED Stadium SMD5050 150lm/W 1800W DUALRAYS SP4 Light Stadium Lighting

LED Stadium SMD5050 150lm/W 1800W DUALRAYS SP4 Light Stadium Lighting

LED Stadium SMD5050 150lm/W 1800W DUALRAYS SP4 Light Stadium Lighting

LED Stadium SMD5050 150lm/W 1800W DUALRAYS SP4 Light Stadium Lighting

LED Stadium SMD5050 150lm/W 1800W DUALRAYS SP4 Light Stadium Lighting

LED Stadium SMD5050 150lm/W 1800W DUALRAYS SP4 Light Stadium Lighting

LED Stadium SMD5050 150lm/W 1800W DUALRAYS SP4 Light Stadium Lighting

LED Stadium SMD5050 150lm/W 1800W DUALRAYS SP4 Light Stadium Lighting

LED Stadium SMD5050 150lm/W 1800W DUALRAYS SP4 Light Stadium Lighting

LED Stadium SMD5050 150lm/W 1800W DUALRAYS SP4 Light Stadium Lighting
LED Stadium SMD5050 150lm/W 1800W DUALRAYS SP4 Light Stadium Lighting
