140LWP Led High Bay Lamp 20KV IP65 100W With Tempered Glass
140LWP Led High Bay Lamp 20KV IP65 100W With Tempered Glass
140LWP Led High Bay Lamp 20KV IP65 100W With Tempered Glass
140LWP Led High Bay Lamp 20KV IP65 100W With Tempered Glass
140LWP Led High Bay Lamp 20KV IP65 100W With Tempered Glass
140LWP Led High Bay Lamp 20KV IP65 100W With Tempered Glass
140LWP Led High Bay Lamp 20KV IP65 100W With Tempered Glass
140LWP Led High Bay Lamp 20KV IP65 100W With Tempered Glass
140LWP Led High Bay Lamp 20KV IP65 100W With Tempered Glass
140LWP Led High Bay Lamp 20KV IP65 100W With Tempered Glass
Specifications
Brand Name :
DUALRAYS(OEM available)
Model Number :
DR-HB200-CGXP
Certification :
CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Place of Origin :
Shenzhen,China
MOQ :
1pcs for Sample Order welcome
Price :
Please inquiry for updated price
Payment Terms :
L/C, T/T, Western Union, paypal
Supply Ability :
50000PCS/Month
Delivery Time :
5-15 Bussiness Day
Packaging Details :
Netural Package/OEM and ODM Package Available
Input Voltage :
AC100~277v 50/60Hz
Driver :
Dualrays Built-in
LED Source :
SMD 2835
CRI :
>70Ra/>80Ra
Power factor :
0.95
CCT :
WW:3000±200K NW: 4000±200K DW:5700±200K CW: 6500±200K
Life Span :
>50,000 H
Guarantee :
5 years
Material :
Die-Cast Aluminum + Tempered Glass/PC
Package :
Normal export carton box
Description

LED UFO high bay light Aluminum 100W 140LWP IP65 Sensor available

DUALRAYS HB4.5 Eco Version UFO High Light Spe.pdf

140LWP Led High Bay Lamp 20KV IP65 100W With Tempered Glass
140LWP Led High Bay Lamp 20KV IP65 100W With Tempered Glass

Options:
> Driver: DUALRAYS Non-isolated Driver;
> Controls and Dimming: 1-10V, Motion sensor,Daylight sensor,Zigbee and Emergency;

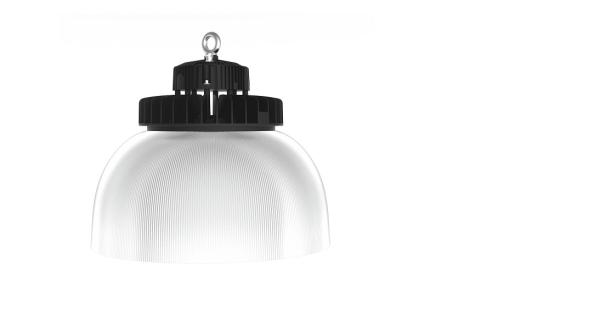

> Reflector : PC reflector / Al reflector;
> Lens : 60°/90° (with Pearl Lens)/120° (with Toughened Glass Cover) beam angle optional;
> Installation: Loop Hanging, Ceiling Mounting, Wall Mounting;

140LWP Led High Bay Lamp 20KV IP65 100W With Tempered Glass
> Factories / Warehouses / Supermarket
> Exhibitions / Showrooms / Animal Farm
> Barns and Riding Halls / Logistic Center
> High Rooms and Halls / Stadium / Chemical Plant
> Traditional lamp replacement


140LWP Led High Bay Lamp 20KV IP65 100W With Tempered Glass

Model No.
 DR-HB100-CGXP DR-HB150-CGXP DR-HB200-CGXP DR-HB240-CGXP
System Watts/W
 100W 150W 200W 240W
System Efficiency/LPW
 140LPW
Lumen Output/lm
 14.000±5% 21.000±5% 28.000±5% 33.600±5%
Rated Input Voltage/V
 AC100~277V, 50/60Hz
LEDs Light Source
 SMD3030
SDCM
 <5
CCT/K
 5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra
 >70Ra (>80Ra for Option)
Power Factor
 >0.95
THD
 <10%
Beam Angle(Optional)
 60°/90°/120°
UGR
 <25
Surge Protection
 3.75~4KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver
 DUALRAYS Own-developed High PF Non-isolated Driver
IP Rating
 IP65
Dimming(Optional)
 0/1-10V/Zigbee
Sensor(Optional)
 Motion Sensor,Daylight Sensor
Emergency(Optional)
 Available (30W @ 3Hrs for Standard)
Protection Class
 ClassⅠ
Finishing Color(Optional)
 Black RAL9017(Standard) / White RAL9016 Optional
Material
 Aluminum+PC (Toughened Glass Cover Optional)
Lifespan/hrs
 60.000 Hrs (Ta=30℃@L70)
Operation Temp/℃
 40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃
 - 40°C to + 65°C(-40°F to 149°F)
Installation(Optional)
 Loop Hanging, Ceiling Mounting, Wall Mounting
Certificate
 CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

140LWP Led High Bay Lamp 20KV IP65 100W With Tempered Glass

Character/Power
100W
150W
200W
240W
140LWP Led High Bay Lamp 20KV IP65 100W With Tempered Glass
A / mm
Φ250
Φ300
Φ345
Φ345
B / mm
178
181
183
183


140LWP Led High Bay Lamp 20KV IP65 100W With Tempered Glass

140LWP Led High Bay Lamp 20KV IP65 100W With Tempered Glass

140LWP Led High Bay Lamp 20KV IP65 100W With Tempered Glass
140LWP Led High Bay Lamp 20KV IP65 100W With Tempered Glass

140LWP Led High Bay Lamp 20KV IP65 100W With Tempered Glass
140LWP Led High Bay Lamp 20KV IP65 100W With Tempered Glass
140LWP Led High Bay Lamp 20KV IP65 100W With Tempered Glass140LWP Led High Bay Lamp 20KV IP65 100W With Tempered Glass

DALI Device
140LWP Led High Bay Lamp 20KV IP65 100W With Tempered Glass

DALI Intelligent Control Diagram
140LWP Led High Bay Lamp 20KV IP65 100W With Tempered Glass 140LWP Led High Bay Lamp 20KV IP65 100W With Tempered Glass

DALI Intelligent Control Operator Interface
140LWP Led High Bay Lamp 20KV IP65 100W With Tempered Glass

140LWP Led High Bay Lamp 20KV IP65 100W With Tempered Glass
140LWP Led High Bay Lamp 20KV IP65 100W With Tempered Glass

140LWP Led High Bay Lamp 20KV IP65 100W With Tempered Glass

140LWP Led High Bay Lamp 20KV IP65 100W With Tempered Glass

140LWP Led High Bay Lamp 20KV IP65 100W With Tempered Glass

Model No.
Net Weight/Kg
Outer Carton Size/mm
Gross Weight/Kg
QTY”/CTN
DR-HB100-CGXP
2.2
320*320*165
2.9
1PCS/CTN
DR-HB150-CGXP
2.4
355*350*165
3.1
1PCS/CTN
DR-HB200-CGXP
2.5
410*410*175
3.3
1PCS/CTN
DR-HB240-CGXP
2.9
410*410*175
3.8
1PCS/CTN

140LWP Led High Bay Lamp 20KV IP65 100W With Tempered Glass
140LWP Led High Bay Lamp 20KV IP65 100W With Tempered Glass


140LWP Led High Bay Lamp 20KV IP65 100W With Tempered Glass
