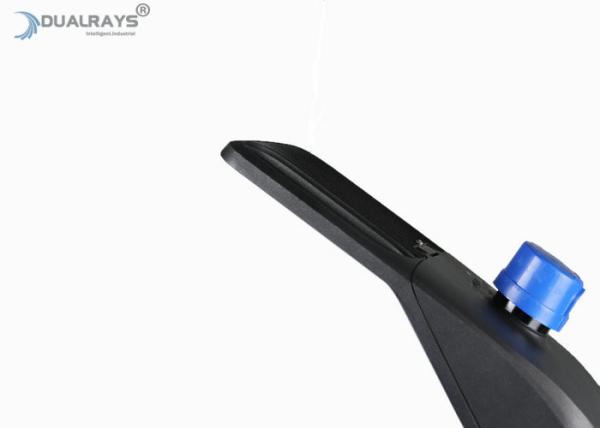

Outdoor High Power LED Street Light 180W 150LPW Efficiency Photocell Controller
Outdoor High Power LED Street Light 180W 150LPW Efficiency Photocell Controller
Outdoor High Power LED Street Light 180W 150LPW Efficiency Photocell Controller
Outdoor High Power LED Street Light 180W 150LPW Efficiency Photocell Controller
Outdoor High Power LED Street Light 180W 150LPW Efficiency Photocell Controller
Outdoor High Power LED Street Light 180W 150LPW Efficiency Photocell Controller
Outdoor High Power LED Street Light 180W 150LPW Efficiency Photocell Controller
Outdoor High Power LED Street Light 180W 150LPW Efficiency Photocell Controller
Specifications
Brand Name :
DUALRAYS
Model Number :
DR-SL180-DG2
Certification :
CE,ROHS,TUV/GS,LM79,LM80
Place of Origin :
Shenzhen,China
MOQ :
2PCS
Price :
Negotiated
Payment Terms :
T/T, L/C, Western Union,Paypal
Supply Ability :
50,000pcs/month
Delivery Time :
5-15 business days
Packaging Details :
Netural Package/OEM and ODM Package Available
Warranty :
5 Years
LEDs source :
LUMILEDS LUXEON LEDs
Driver :
Meanwell ELG/HLG
CCT :
WW:3000±200K NW: 4000±200K DW:5000±200K CW: 5700±200K
Input Voltage :
AC95~277V 50/60Hz
Wattage :
30W,60W,90W,120W,150W,180W
Description

Outdoor High Power Led Street Lamp180W 150LPW Efficiency Photocell Controller

Outdoor LED Street Lights Features:

* Adopting SMD5050 LEDs light source;

* High output lighting efficiency 140lm/W,;

* High Color Rendering Index (CRI>70/80Ra);

* 10KA SPD,20KA Meanwell SPD optional.

* 3-pins photocell controller ON/OFF,and 7-pins LORA/NEMA socket smart wireless control available.

* Zigbee module (Single-lamp Controller and centralized manager) with software for option.

Item Description
LEDs Light Source SMD5050
LED Driver Meanwell ELG/HLG,Sosen
Dimming(Optional) 0/1-10V/PWM/DALI/Zigbee
Rated Input Voltage/V AC100~277V 50/60Hz
Surge Protection 6~10KV SPD Driver,Exterior SPD 10KV() or 20KV Meanwell Optional
Beam Angle(Optional) TypeⅠ/TypeⅡ(Long & Medium)/TypeⅢ(Medium)/TypeⅣ /TypeⅤ (Medium) (Medium)
Power Factor >0.95
CRI/Ra >70Ra (>80Ra for Option)

After-Sales Service

a. 3 to 5 years quality warranty with lifelong maintenance.

b. Responding time: upon receiving user’s notification, we ensure 24-hour after-sales technical support.

c. Free technical training: integrative and normative technology training is available for free to customers by our technical personnel to ensure they are skilled in regular operations of hardware and software of products and they are able to estimate and solve small problems.

d. Site instruction service of installation is available.

Outdoor High Power LED Street Light 180W 150LPW Efficiency Photocell Controller

Outdoor High Power LED Street Light 180W 150LPW Efficiency Photocell Controller
Outdoor High Power LED Street Light 180W 150LPW Efficiency Photocell Controller

> Roadways.

> Avenues.

> Walkways.

> Loading Area.

> Parking lot.

> Playground.

> Sport and Stadium.

Outdoor High Power LED Street Light 180W 150LPW Efficiency Photocell Controller
Outdoor High Power LED Street Light 180W 150LPW Efficiency Photocell Controller


Outdoor High Power LED Street Light 180W 150LPW Efficiency Photocell Controller
30W/60W Version
Outdoor High Power LED Street Light 180W 150LPW Efficiency Photocell Controller
90W,120W/150W/180W Version
Outdoor High Power LED Street Light 180W 150LPW Efficiency Photocell Controller

Outdoor High Power LED Street Light 180W 150LPW Efficiency Photocell Controller

Outdoor High Power LED Street Light 180W 150LPW Efficiency Photocell Controller

Outdoor High Power LED Street Light 180W 150LPW Efficiency Photocell Controller
Outdoor High Power LED Street Light 180W 150LPW Efficiency Photocell Controller
Outdoor High Power LED Street Light 180W 150LPW Efficiency Photocell ControllerOutdoor High Power LED Street Light 180W 150LPW Efficiency Photocell ControllerOutdoor High Power LED Street Light 180W 150LPW Efficiency Photocell ControllerOutdoor High Power LED Street Light 180W 150LPW Efficiency Photocell Controller
Outdoor High Power LED Street Light 180W 150LPW Efficiency Photocell Controller
Zigbee Wireless Intelligent Control Diagram
Outdoor High Power LED Street Light 180W 150LPW Efficiency Photocell Controller
Zigbee Wireless Intelligent Control Operator Interface
Outdoor High Power LED Street Light 180W 150LPW Efficiency Photocell Controller
Outdoor High Power LED Street Light 180W 150LPW Efficiency Photocell Controller

Outdoor High Power LED Street Light 180W 150LPW Efficiency Photocell Controller
Outdoor High Power LED Street Light 180W 150LPW Efficiency Photocell Controller

Outdoor High Power LED Street Light 180W 150LPW Efficiency Photocell Controller

Outdoor High Power LED Street Light 180W 150LPW Efficiency Photocell Controller

Outdoor High Power LED Street Light 180W 150LPW Efficiency Photocell Controller

Outdoor High Power LED Street Light 180W 150LPW Efficiency Photocell Controller

Q1: How long for the delivery time?

RE: 3 to 5 working days for samples, massive orders is within 10-15 working days according to the quantity.30 days for customized products with opening new mold.Urgent delivery time requirement is available,we will try our best to help you.

Q2: Can i have samples to test ?

RE: Yes,sure. Welcome to order samples for evaluation before bulk order.

Q3: What’s the payment methods you can accept ?

RE: We can accept multi payment routes in order to be more flexible and convenient for our customers all over the world,Western Union,Paypal,T/T,L/C.But generally the standard payment method is T/T for bulk orders,30% T/T in advance,balance 70% before shipment The bank information is written in the PI.

Q4: What’s your shipping method ?

RE: UPS, DHL, Fedex, TNT or Shipping by Air,by train(for Europe) or by sea for option.

Q5:What are the applications of your street light?

RE:Our street light can be applied in roadway, avenue. walkway, loading area, parking lot, playground, sport and stadium etc.

Q6: Can I only buy the housing separately?

RE:Sorry. We only supply the whole luminaire fixture.

Q7: Does the price include photocell controller?

RE: The photocell controller should be purchased separately.
