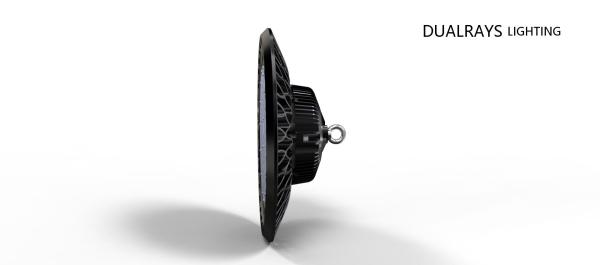

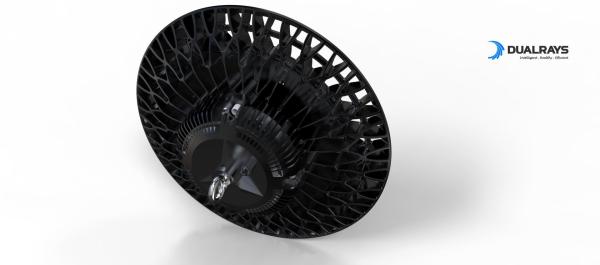

2020 Best Beam Angle UFO LED High Bay Light With Meanwell Power Supply
2020 Best Beam Angle UFO LED High Bay Light With Meanwell Power Supply
2020 Best Beam Angle UFO LED High Bay Light With Meanwell Power Supply
2020 Best Beam Angle UFO LED High Bay Light With Meanwell Power Supply
2020 Best Beam Angle UFO LED High Bay Light With Meanwell Power Supply
2020 Best Beam Angle UFO LED High Bay Light With Meanwell Power Supply
2020 Best Beam Angle UFO LED High Bay Light With Meanwell Power Supply
2020 Best Beam Angle UFO LED High Bay Light With Meanwell Power Supply
Specifications
Brand Name :
DUALRAYS
Model Number :
DR-HB100-EG
Certification :
CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Place of Origin :
Shenzhen,China
MOQ :
2PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000PCS/Month
Delivery Time :
5-15 Bussiness Day
Packaging Details :
Netural Package/OEM and ODM Package Available
Beam angle :
120°/60°/90°
IP Rating :
65
IK Rating :
IK10
CRI :
>80
LED Lights source :
SMD3030
Rated input Voltage/V :
AC100~277V 50/60Hz
Description
2020 Best Beam Angle UFO LED High Bay Light With Meanwell Power Supply

UFO LED High Bay Features:

> IP65 and IK10 for all industrial areas of application;

> Zigbee wireless control / 1-10V Dimming / Motion sensor / Emergency / DALI control / Daylight sensor.Options:

> Driver: Meanwell HBG(Round),ELG/HLG(Retangle),Sosen
> Reflector : PC reflector with / without cover.pipe mounting
2020 Best Beam Angle UFO LED High Bay Light With Meanwell Power Supply
Model No. DR-HB100-EG2
Rated Power/W 100
Luminous Flux/LM 14,000±5%
Systen Efficiency/LPW 140
Color Temperature WW:3000±200K NW: 4000±200K DW:5000±200K CW: 5700±200K
Dimming Function 1-10VDC /DALI / PIR Sensor
Protections Short circuit/Over current/Over voltage/Over temperature
Anti-salty spray Grade A
Color Index >80Ra
Beam Angle Options 60°/120° for option
IP/Rating IP65
AC Input Volage/V AC100~277V 50/60Hz
Power Factor PF>0.95
Starting Time <0.1
LED Driver Meanwell
UGR <25
THD <10%
SDCM <5
Lumen Maintenance @ 6000 hrs >95%

2020 Best Beam Angle UFO LED High Bay Light With Meanwell Power Supply

2020 Best Beam Angle UFO LED High Bay Light With Meanwell Power Supply

> Shipyards;

> Mines;

> Workshops;

> Warehouse;

> Highway toll stations;

> Gas stations;

> Supermarkets;

> Exhibition center;

2020 Best Beam Angle UFO LED High Bay Light With Meanwell Power Supply
2020 Best Beam Angle UFO LED High Bay Light With Meanwell Power Supply
2020 Best Beam Angle UFO LED High Bay Light With Meanwell Power Supply
Character/Power
100W
150W
200W
240W
2020 Best Beam Angle UFO LED High Bay Light With Meanwell Power Supply
A
Ø350mm
Ø350mm
Ø420mm
Ø420mm
B
210mm
210mm
220mm
220mm
2020 Best Beam Angle UFO LED High Bay Light With Meanwell Power Supply
2020 Best Beam Angle UFO LED High Bay Light With Meanwell Power Supply
2020 Best Beam Angle UFO LED High Bay Light With Meanwell Power Supply2020 Best Beam Angle UFO LED High Bay Light With Meanwell Power Supply
2020 Best Beam Angle UFO LED High Bay Light With Meanwell Power Supply
2020 Best Beam Angle UFO LED High Bay Light With Meanwell Power Supply
2020 Best Beam Angle UFO LED High Bay Light With Meanwell Power Supply

2020 Best Beam Angle UFO LED High Bay Light With Meanwell Power Supply
2020 Best Beam Angle UFO LED High Bay Light With Meanwell Power Supply

2020 Best Beam Angle UFO LED High Bay Light With Meanwell Power Supply

2020 Best Beam Angle UFO LED High Bay Light With Meanwell Power Supply

2020 Best Beam Angle UFO LED High Bay Light With Meanwell Power Supply

2020 Best Beam Angle UFO LED High Bay Light With Meanwell Power Supply

2020 Best Beam Angle UFO LED High Bay Light With Meanwell Power Supply

2020 Best Beam Angle UFO LED High Bay Light With Meanwell Power Supply
1.What’s Power factor ?
RE: The active power divided by the apparent power (i.e product of the rms input voltage and rms input current of a driver.)
2.What’s Smart Lighting ?
RE: Automated lighting control using sensors and /or scheduling switches.
3.What’s Watt ?
RE: The unit of electrical power as used by an electrical device during its operation. Many lamps come with rating in watts to indicate their power consumption.
4.How to explain “ZigBee“ ?
RE: A low -power ,low date rate, local area wireless network; ideal for lighting control.
5.How to explain “lumen output “ ?
RE: The total lumens emitted of a light source, system, or solution.
6.How to explain “luminous Efficacy“ ?
RE: A measure of how well a light source products visible light expressed as lumens /Watt.

2020 Best Beam Angle UFO LED High Bay Light With Meanwell Power Supply
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
