Specifications
Brand Name :
DUALRAYS(OEM available)
Model Number :
DR-FL100-CGXP
Certification :
CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Place of Origin :
Shenzhen,China
MOQ :
2PCS
Price :
Please inquiry for latest price
Payment Terms :
L/C, T/T, Western Union, paypal
Supply Ability :
100000pcs/month
Delivery Time :
5-15 bussiness days
Packaging Details :
Netural Package/OEM and ODM Package Available
Input Voltage :
AC100~277V 50/60Hz
Driver :
Meanwell/Sosen
LED Source :
SMD 3030
Power factor :
0.95
CCT :
WW:3000±200K NW: 4000±200K DW:5000±200K CW: 5700±200K
Protection :
IP66; IK08
Beam angle :
10°/ 25°/ 45°/ 60°/ 90°/ 30*70° / 80*140° / 60*130°
Material :
Aluminium Alloy 6063+PC
UGR :
<25
Installations :
Ground/Wall/Ceiling/Pipe
Description

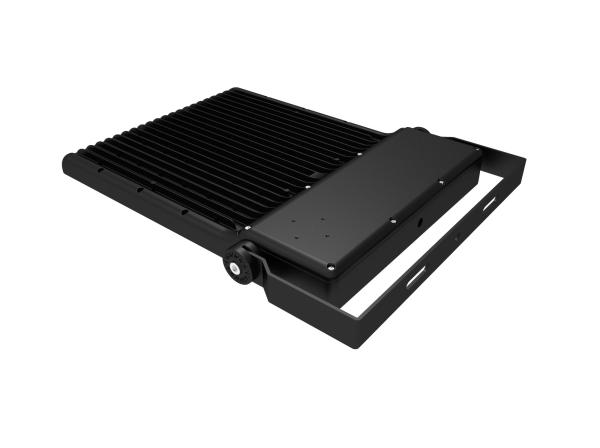

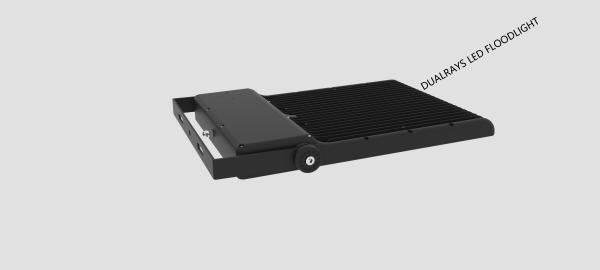

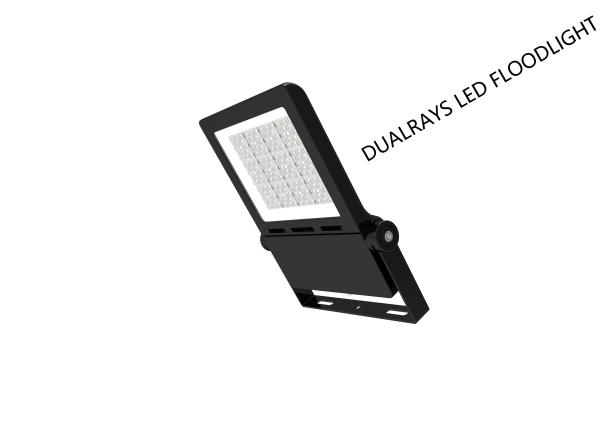

Outdoor LED Floodlight 100W 120LM/W High CCT IP66 Sports Applied 5 Years Guarantee

Outdoor LED Flood Light 100W 120LPW High CCT IP66 Sports Courts Applied 5 Years Guarantee
Outdoor LED Flood Light 100W 120LPW High CCT IP66 Sports Courts Applied 5 Years Guarantee

Options:
> Driver: Sosen,Meanwell ELG/HLG driver;
> Controls and Dimming: 1-10V, DALI,PWM,Zigbee;
> Surge Protection Device: Meanwell SPD-20 20KV Surge Protector;
> Lens : Symmetrical 30°/60°/90°/120°,Asymmetrical/Type II / Type III / Type IV;
> Microwave Motion Sensor;

Outdoor LED Flood Light 100W 120LPW High CCT IP66 Sports Courts Applied 5 Years Guarantee
> Airports & Harbors
> Billboard illumination
> Large recreational sports facilities
> Industrial areas & Landscape buildings
> Roundabouts and motorway junctions

Outdoor LED Flood Light 100W 120LPW High CCT IP66 Sports Courts Applied 5 Years Guarantee
Model No.
DR-FL050-CGXX DR-FL100-CGXX DR-FL150-CGXX DR-FL200-CGXX DR-FL300-CGXX
System Watts/W
50W 100W 150W 200W
300W
System Efficiency/LPW
120~125LPW
Lumen Output/lm
6.500±5% 12.500±5% 18.750±5% 25.000±5% 37.500±5%
Rated Input Voltage/V
AC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional)
LEDs Light Source
SMD3030
SDCM
<5
CCT/K
5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra
>70Ra (>80Ra for Option)
Power Factor
>0.95
THD
<10%
Beam Angle(Optional)
Symmetrical 30°/60°/90°/120°,Asymmetrical/Type II / Type III / Type IV beam angle optional
UGR
<25
Surge Protection
6~10KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver
Sosen,Meanwell ELG / HLG Optional
IP Rating
IP65
Dimming(Optional)
1-10V, DALI,PWM,Zigbee for Option
Safety Protection Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection
Sensor (Optional) Motion Sensor
Protection Class
ClassⅠ
Finishing Color(Optional)
Black RAL9017(Standard) / White RAL9016 Optional
Material
Aluminum+Toughened Glass
Lifespan/hrs
62.000 Hrs (Ta=30℃@L70)
Operation Temp/℃
40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃
- 40°C to + 65°C(-40°F to 149°F)
Switching Cycles 100,000 Times
Certificate
CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

Outdoor LED Flood Light 100W 120LPW High CCT IP66 Sports Courts Applied 5 Years Guarantee
Character/Power
100W
150W
200W
240W
300W
Outdoor LED Flood Light 100W 120LPW High CCT IP66 Sports Courts Applied 5 Years Guarantee
A / mm
389
389
437
493
582
B / mm
297
297
346
379
444
C / mm
57
57
57
57
60

Outdoor LED Flood Light 100W 120LPW High CCT IP66 Sports Courts Applied 5 Years Guarantee
Outdoor LED Flood Light 100W 120LPW High CCT IP66 Sports Courts Applied 5 Years Guarantee
Outdoor LED Flood Light 100W 120LPW High CCT IP66 Sports Courts Applied 5 Years Guarantee
Outdoor LED Flood Light 100W 120LPW High CCT IP66 Sports Courts Applied 5 Years GuaranteeOutdoor LED Flood Light 100W 120LPW High CCT IP66 Sports Courts Applied 5 Years Guarantee
Outdoor LED Flood Light 100W 120LPW High CCT IP66 Sports Courts Applied 5 Years Guarantee

Outdoor LED Flood Light 100W 120LPW High CCT IP66 Sports Courts Applied 5 Years Guarantee

Outdoor LED Flood Light 100W 120LPW High CCT IP66 Sports Courts Applied 5 Years Guarantee

Outdoor LED Flood Light 100W 120LPW High CCT IP66 Sports Courts Applied 5 Years Guarantee

Outdoor LED Flood Light 100W 120LPW High CCT IP66 Sports Courts Applied 5 Years Guarantee

Outdoor LED Flood Light 100W 120LPW High CCT IP66 Sports Courts Applied 5 Years Guarantee
Model No.
Net Weight/Kg
Outer Carton Size/mm
Gross Weight/Kg
QTY”/CTN
DR-FL050-CGXX
3.6
355*350*165
4.5
1PCS/CTN
DR-FL100-CGXX
3.8
355*350*165
4.7
1PCS/CTN
DR-FL150-CGXX
4.5
415*410*175
5.8
1PCS/CTN
DR-FL200-CGXX
5.7
475*470*195
7.3
1PCS/CTN
DR-FL300-CGXX
9.3
475*470*195
11.5
1PCS/CTN

FAQ

Q1:What is a flood light?
RE:LED floodlights are lamps that specify that the illuminance on the illuminated surface is higher than the surrounding environment. Also called the spotlight. Normally, it can aim in any direction and has a structure that is not affected by weather conditions. It is mainly used for large-scale operation sites, general constructions, stadiums, overpasses, memorial monuments, parks and flower beds.

Floodlight (Floodlight), a floodlight is a point light source that can illuminate equally in all directions. Its illumination range can be adjusted arbitrarily, and it appears as a regular octahedron icon in the scene. Floodlights are the most common light source used in the production of function pictures. Standard floodlights are used to illuminate the entire scene.

Q2: What are the advantages of flood light?

RE:Advantages of LED flood light;

①High-purity aluminum reflector, the most accurate beam and the best reflection effect.

②Symmetrical narrow-angle, wide-angle and asymmetric light distribution systems.

③It is troublesome to change the light bulb with the open type behind.

④The lamps are equipped with a scale board to adjust the projection angle.

⑤It is suitable for lighting in large places and buildings.
