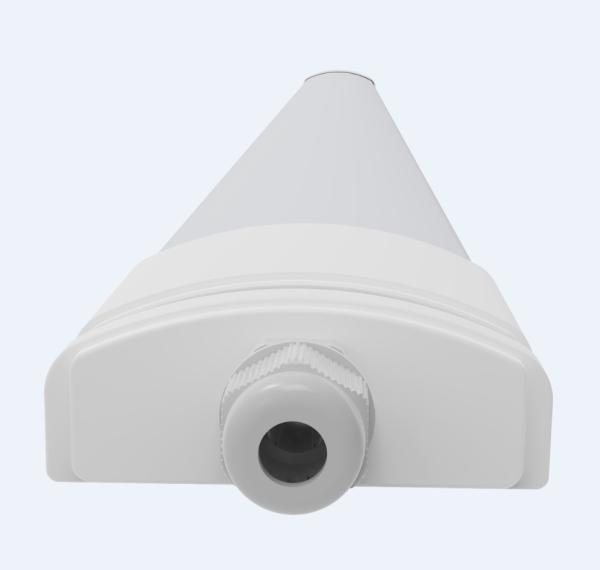

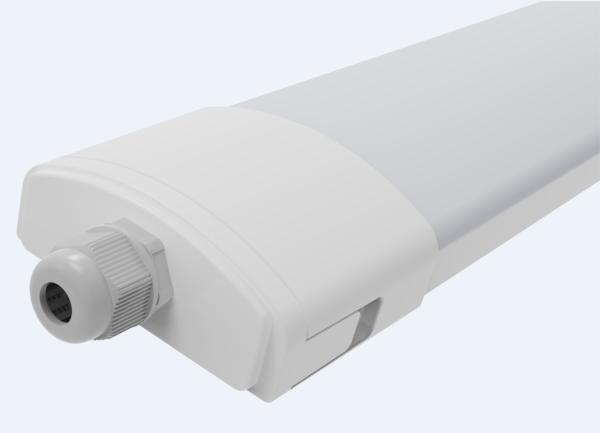

40 Watt 140LPW LED Tri Proof Led Light Water Dust Vapor Proof Underground Parking IP65 IK08
40 Watt 140LPW LED Tri Proof Led Light Water Dust Vapor Proof Underground Parking IP65 IK08
40 Watt 140LPW LED Tri Proof Led Light Water Dust Vapor Proof Underground Parking IP65 IK08
40 Watt 140LPW LED Tri Proof Led Light Water Dust Vapor Proof Underground Parking IP65 IK08
40 Watt 140LPW LED Tri Proof Led Light Water Dust Vapor Proof Underground Parking IP65 IK08
40 Watt 140LPW LED Tri Proof Led Light Water Dust Vapor Proof Underground Parking IP65 IK08
Specifications
Brand Name :
DUALRAYS(OEM available)
Model Number :
DR-TP040-GHB2XPX
Certification :
CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Place of Origin :
Shenzhen,China
MOQ :
1PCS
Price :
Please inquiry for latest price
Payment Terms :
L/C, T/T, Western Union, paypal
Supply Ability :
100000pcs/month
Delivery Time :
5-15 bussiness days
Packaging Details :
Netural Package/OEM and ODM Package Available
Input Voltage :
AC100~277v 50/60Hz
Driver :
BOKE/Dualrays
LED Source :
SMD 2835
CRI :
>70Ra/>80Ra
Power factor :
0.96
CCT :
WW:3000±200K NW: 4000±200K DW:5700±200K CW: 6500±200K
Package :
Normal export carton box
Applications :
Underground parking lot/Facotory/Warehouse...
Efficiency :
120/160lm/W
Housing :
Full plastic
Description
40 Watt 140LPW LED Tri Proof Led Light Water Dust Vapor Proof Underground Parking IP65 IK08
40 Watt 140LPW LED Tri Proof Led Light Water Dust Vapor Proof Underground Parking IP65 IK08
> Hi-slim design,elegent and fashional;
> Buckle Design End-cap,pretty Easy for Wiring and Installation;
> High Brightness SAN‘AN SMD2835 LEDs, DUALRAYS Own Developed High PF Flicker-free Driver;
> Full Plastic Material,Eco and Environment Friendly;
> IP65 / IK08 Protection;
> 120°beam angle;
> Linkabkle Through Double End Wiring;
> Multiple Installations: Suspension, Wall Mounting
> No UV or IR and completely mercury free;
> L70/B20 @ 52.000h;
> Customized supported for special projects;
Options:
> Plug: European / Australia plug with 0.75mm2/1.5mm2/2.5mm2 3-pins or 5-pins (dimming) cable;
> Installation : Suspension, Wall Mounting;
40 Watt 140LPW LED Tri Proof Led Light Water Dust Vapor Proof Underground Parking IP65 IK08
> Replacement for fluorescent NCF;
> Workshops and warehouse;
> Garage and car parks;
> Sport facility;
> Corridor/Gallery/Corridor;
> Outdoor & Indoor Locations;

40 Watt 140LPW LED Tri Proof Led Light Water Dust Vapor Proof Underground Parking IP65 IK08

Model No. DR-TP020-BHG2XPX DR-TP030-BHG2XPX DR-TP040-BHG2XPX DR-TP040-BHG2XPX DR-TP050-BHG2XPX
System Watts/W 20W 30W 40W 40W
50W
System Efficiency/LPW 120LPW / 140LPW Optioanl
Lumen Output/lm 2.400/2.800±5% 3.600/4.200±5% 4.800/5.600±5% 4.800/5.600±5% 6.000/7.000±5%
Rated Input Voltage/V AC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional)
LEDs Light Source SMD2835
SDCM <6
CCT/K 5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra >80Ra (>70Ra for Option)
Power Factor >0.91
THD <10%
Beam Angle(Optional) 120°
UGR <22
LED Driver DUALRAYS Own Developed High PF Interior Driver
IP Rating IP65
IK Level IK08
Dimming(Optional) 1-10V
Sensor(Optional) No
Emergency(Optional) No
Protection Class ClassⅠ
Finishing Color(Optional) White RAL9016 Optional
Material PC+PC
Lifespan/hrs 52.000 Hrs (Ta=30℃@L70)
Operation Temp/℃ 40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃ - 40°C to + 65°C(-40°F to 149°F)
Installation(Optional) Suspension / Ceiling Mounting Optional
Certificate CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

40 Watt 140LPW LED Tri Proof Led Light Water Dust Vapor Proof Underground Parking IP65 IK08
40 Watt 140LPW LED Tri Proof Led Light Water Dust Vapor Proof Underground Parking IP65 IK08

40 Watt 140LPW LED Tri Proof Led Light Water Dust Vapor Proof Underground Parking IP65 IK08



40 Watt 140LPW LED Tri Proof Led Light Water Dust Vapor Proof Underground Parking IP65 IK08

40 Watt 140LPW LED Tri Proof Led Light Water Dust Vapor Proof Underground Parking IP65 IK08

40 Watt 140LPW LED Tri Proof Led Light Water Dust Vapor Proof Underground Parking IP65 IK08
40 Watt 140LPW LED Tri Proof Led Light Water Dust Vapor Proof Underground Parking IP65 IK08


40 Watt 140LPW LED Tri Proof Led Light Water Dust Vapor Proof Underground Parking IP65 IK08

40 Watt 140LPW LED Tri Proof Led Light Water Dust Vapor Proof Underground Parking IP65 IK08

Dualrays D1 Series LED Tri-proof Light 160LPW Efficiency 3 years guarantee emergency 1-10V and DALI dimming optional

> Highly brightness EPISTAR/SAN‘AN SMD2835 LEDs,energy efficient - up to 160 lm/w;
> 1-10V dimming flicker-free driver,DIP Switch Power Adjustment available,CCT adjustable available;
> Single or Double wiring optional,backside cable output avaialable;
> IP65 and IK08 for all industrial areas of application;
> 2 in 1 design concept,integrated PC cover and PCBA,seperated housing,convenient installation,labor cost saving;
> Multiple Link with double wiring;
> No UV or IR and completely mercury free;
> L80/B10 @ 50.000h;
> 5 years warranty;

Options:
> Driver: DUALRAYS Own-developed flicker-free driver,BOKE DIP switch power adjustable driver.
> Controls and Dimming: Zigbee wireless control / 1-10V Dimming / Daylight sensor,microwave sensor,CCTadjustable,emergency.
> Plug : European / Australia plug with 0.75mm2/1.5mm2/2.5mm2 3-pins or 5-pins (dimming) cable optional.
> Installation: Suspension/Loop/Wall
> Single or double wiring and connection.
> Customized supported for special projects.



Shipment
40 Watt 140LPW LED Tri Proof Led Light Water Dust Vapor Proof Underground Parking IP65 IK08
Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.

40 Watt 140LPW LED Tri Proof Led Light Water Dust Vapor Proof Underground Parking IP65 IK08

Q1: What is the warranty?
RE: For the D1 Series LED triproof light,Dualrays provide 5 years warranty.If any quality problems on our side occured in this period ,we will take on the shipping cost and replacement.

Q2: What are the applications of your D1 tri-proof light?
RE:Our tri-proof light can be applied in Replacement for fluorescent NCF
* Workshops and warehouse
* Garage and car parks
* Sport facility
* Corridor/Gallery/Corridor
* Outdoor & Indoor Locations etc.
Q3: Can I start from 1pcs sample?
RE: Yes, 1pcs sample order for testing welcomed.

Q4: What is the production time?
RE: Normally 3-5 business days for samples, 10-15 business days for bulk orders.
Q5: Can you do DIAlux Simulation?
RE: We have professional DIAlux team to support you, IES files also can be downloaded on our Website or inquire us to send.

Q6: Do you offer mounting accessories?
RE: Yes, please contact us for details.
Q7: What is colour temperature?
RE: Dualrays‘ LED lighting offer lamps in warm white, natural white,pure white and cool white with colour temperatures measured in Kelvin (K). The lower the colour temperature is,
the warmer the light given by the LED:
Warm white = 3000±200K
Natural white = 4000±200K
Pure white = 5000±200K
Cool white = 5700±200K
Q8: What‘re the chips and drivers used?
RE: High brightness San‘an SMD2835 LEDs light source,BOKE flicker free drivers for standard configuration.

Q9: What is the CRI?
RE: Ra>80 for standard.
Q10: What’s your shipping method ?
RE: UPS, DHL, Fedex, TNT or Shipping by Air,by train(for Europe) or by sea for option.

Q11: Labeling ?
RE: Neutral labeling/ Custom designed labels / Laser printing labels (at request).

Q12: Finish color?
RE: Standard colors: Silver,other colors can be customized, based on MOQ 50PCS.

Q13: Dimming functions?
RE: PIR sensor,Emergency,1-10V,DALI,Microwave sensor is available.

Please do not hesitate to contact us for more information.

Let's meet DUALRAYS from below pictures!

40 Watt 140LPW LED Tri Proof Led Light Water Dust Vapor Proof Underground Parking IP65 IK08

40 Watt 140LPW LED Tri Proof Led Light Water Dust Vapor Proof Underground Parking IP65 IK08

40 Watt 140LPW LED Tri Proof Led Light Water Dust Vapor Proof Underground Parking IP65 IK08

40 Watt 140LPW LED Tri Proof Led Light Water Dust Vapor Proof Underground Parking IP65 IK08

40 Watt 140LPW LED Tri Proof Led Light Water Dust Vapor Proof Underground Parking IP65 IK08

40 Watt 140LPW LED Tri Proof Led Light Water Dust Vapor Proof Underground Parking IP65 IK08

40 Watt 140LPW LED Tri Proof Led Light Water Dust Vapor Proof Underground Parking IP65 IK08

40 Watt 140LPW LED Tri Proof Led Light Water Dust Vapor Proof Underground Parking IP65 IK08

Why DUALRAYS?

* Professional team: >10 years experience, own factory, >10 engineers team, powerful production capacity and QC management system, provide both good quality product and service;

* Reliable brand: Built up stable and long-term cooperation with Europe customers, got high prise and trust, and have warehouse in Netherlands for better service;

* Provide DIALux simulation: Send us your parameters of the applications, like distance, height, width, etc, our engineer team will do simulation according to your demand and recommend you the best product;

* All our LED luminaries comply with CE, RoHS standard. TUV, ENEC, VDE, SAA,C-Tick, LM79,LM80 listed for the leading products.

* We always take customers benifit and product quality on our most important possition

40 Watt 140LPW LED Tri Proof Led Light Water Dust Vapor Proof Underground Parking IP65 IK0840 Watt 140LPW LED Tri Proof Led Light Water Dust Vapor Proof Underground Parking IP65 IK08

ISO9001:2008 ISO14001:2004

40 Watt 140LPW LED Tri Proof Led Light Water Dust Vapor Proof Underground Parking IP65 IK0840 Watt 140LPW LED Tri Proof Led Light Water Dust Vapor Proof Underground Parking IP65 IK08

The best quality innovation award Shenzhen Hi-tech Enterprise

40 Watt 140LPW LED Tri Proof Led Light Water Dust Vapor Proof Underground Parking IP65 IK08
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!

40 Watt 140LPW LED Tri Proof Led Light Water Dust Vapor Proof Underground Parking IP65 IK08

Marketing Department
Tel: 0086-755-2306 6948
Fax: 0086-755-6164 1072
Zip Code: 518125
Cila Zhang
Email: sales08@dualrays.com

Add: 3rd Floor,Building A3 | Tianrui Industrial Park| #35,Fuyuan 1st Road,Fuyong Town,
Bao'an Dist | Shenzhen 518103, P.R.China
