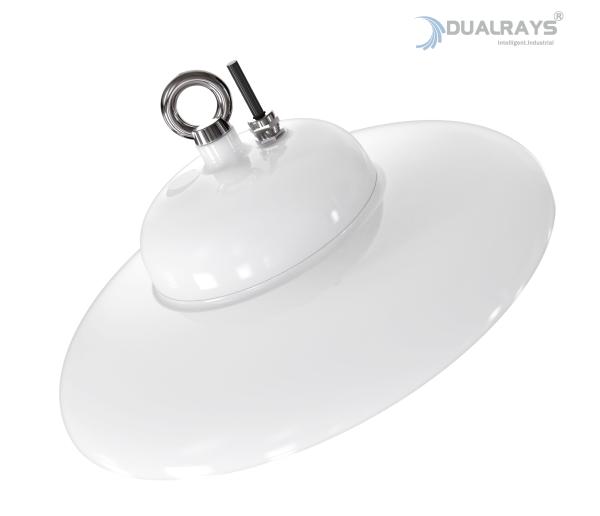

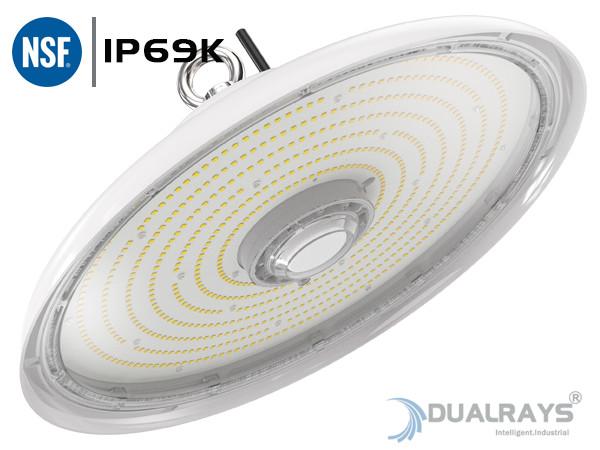

Smooth Surface LED UFO High Bay Light Easy Clean NSF IP69K Power Saving
Smooth Surface LED UFO High Bay Light Easy Clean NSF IP69K Power Saving
Smooth Surface LED UFO High Bay Light Easy Clean NSF IP69K Power Saving
Smooth Surface LED UFO High Bay Light Easy Clean NSF IP69K Power Saving
Smooth Surface LED UFO High Bay Light Easy Clean NSF IP69K Power Saving
Smooth Surface LED UFO High Bay Light Easy Clean NSF IP69K Power Saving
Smooth Surface LED UFO High Bay Light Easy Clean NSF IP69K Power Saving
Smooth Surface LED UFO High Bay Light Easy Clean NSF IP69K Power Saving
Smooth Surface LED UFO High Bay Light Easy Clean NSF IP69K Power Saving
Smooth Surface LED UFO High Bay Light Easy Clean NSF IP69K Power Saving
Smooth Surface LED UFO High Bay Light Easy Clean NSF IP69K Power Saving
Smooth Surface LED UFO High Bay Light Easy Clean NSF IP69K Power Saving
Specifications
Brand Name :
DUALRAYS
Model Number :
DR-HB100-GGXP
Certification :
CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Place of Origin :
Shenzhen,China
MOQ :
1PCS
Price :
Please inquiry for latest price
Payment Terms :
L/C, T/T, Western Union, paypal
Supply Ability :
50000PCS/Month
Delivery Time :
5-15 Bussiness Day
Packaging Details :
Netural Package/OEM and ODM Package Available
Input Voltage :
AC100~277v 50/60Hz
Driver :
SOSEN/Meanwell
UGR :
<25
Power factor :
0.95
CCT :
WW:3000±200K NW: 4000±200K DW:5700±200K CW: 6500±200K
Guarantee :
5 years
CRI :
>70Ra/>80Ra
Material :
Aluminium Alloy+PC
Package :
Normal export carton box
Applications :
Factory/Warehouse/Workshop/Exhibition center...
Description

Smooth Surface LED UFO High Bay Light Easy Clean NSF IP69K Power Saving

Smooth Surface LED UFO High Bay Light Easy Clean NSF IP69K Power Saving
Smooth Surface LED UFO High Bay Light Easy Clean NSF IP69K Power Saving

> High brightness LUXEON SMD3030 LEDs,energy efficient up to 140 lm/w;
> Die-casting Al housing for excellent heat dissipation;
> Superior PC reflector-optic for low glare applications,PMMA,glass cover available;
> NSF standard,IP66/IP69K and IK10 especially designed for food industry;
> Driver and housing separated by spacers;
> Adjustable ripple-lens optic with 60°/90°/120° beam angle;
> D-Mark tested for the use in paper production, wood processing etc;
> Smooth surface easily to clean;
> No UV or IR and completely mercury free;
> L80/B10 @ 50.000h;
> 5 years warranty;

Options:
> Driver and LEDs
> Controls and Dimming: Zigbee wireless control / 1-10V Dimming / Motion sensor / Emergency / DALI control / Daylight sensor.
> Reflector : PC reflector with / without cover.pipe mounting.
> Installation: loop hanging;
> Customized supported for special projects.
Smooth Surface LED UFO High Bay Light Easy Clean NSF IP69K Power Saving
> Food Processing Factory,Farm,Supermarket
> Factories / Warehouses /Workshops
> Exhibitions & showrooms
> Barns and riding halls
> High rooms and halls
> Traditional lamp replacement
Smooth Surface LED UFO High Bay Light Easy Clean NSF IP69K Power Saving
Character/Power
100W
150W
200W
Smooth Surface LED UFO High Bay Light Easy Clean NSF IP69K Power Saving
A
Ø400mm
Ø400mm
Ø400mm
B
182mm
182mm
182mm

Smooth Surface LED UFO High Bay Light Easy Clean NSF IP69K Power Saving

Smooth Surface LED UFO High Bay Light Easy Clean NSF IP69K Power Saving

Smooth Surface LED UFO High Bay Light Easy Clean NSF IP69K Power Saving
Smooth Surface LED UFO High Bay Light Easy Clean NSF IP69K Power Saving
Smooth Surface LED UFO High Bay Light Easy Clean NSF IP69K Power Saving
Smooth Surface LED UFO High Bay Light Easy Clean NSF IP69K Power Saving
Smooth Surface LED UFO High Bay Light Easy Clean NSF IP69K Power Saving

DALI Device
Smooth Surface LED UFO High Bay Light Easy Clean NSF IP69K Power Saving

DALI Intelligent Control Diagram
Smooth Surface LED UFO High Bay Light Easy Clean NSF IP69K Power Saving Smooth Surface LED UFO High Bay Light Easy Clean NSF IP69K Power Saving

DALI Intelligent Control Operator Interface
Smooth Surface LED UFO High Bay Light Easy Clean NSF IP69K Power Saving

Smooth Surface LED UFO High Bay Light Easy Clean NSF IP69K Power Saving
Smooth Surface LED UFO High Bay Light Easy Clean NSF IP69K Power Saving

Smooth Surface LED UFO High Bay Light Easy Clean NSF IP69K Power Saving

Smooth Surface LED UFO High Bay Light Easy Clean NSF IP69K Power Saving

Smooth Surface LED UFO High Bay Light Easy Clean NSF IP69K Power Saving

Smooth Surface LED UFO High Bay Light Easy Clean NSF IP69K Power Saving

Smooth Surface LED UFO High Bay Light Easy Clean NSF IP69K Power Saving
Packaging Information
Smooth Surface LED UFO High Bay Light Easy Clean NSF IP69K Power Saving

Shipment

Smooth Surface LED UFO High Bay Light Easy Clean NSF IP69K Power Saving
Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.
Smooth Surface LED UFO High Bay Light Easy Clean NSF IP69K Power Saving

Q1: What is the warranty for the NSF UFO high bay light?
RE: 5 years warranty.If any quality problems on our side occured in this period ,we will take on the shipping cost and replacement.

Q2: What’s the payment methods you can accept ?
RE: L/C, T/T, Western Union, paypal,etc, follow your convenience.
Q3: What’s your shipping method ?
RE: UPS, DHL, Fedex, TNT or Shipping by Air,by train(for Europe) or by sea for option.
Q4: Can I only buy the housing separately?
RE:Sorry. We only supply the whole luminaire fixture.

Q5:Is there cheap shipping cost to import to our country?
RE: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.

Q6:Can we get support if we have our own market position?
RE: Please inform us your detailed mind on your market, demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.
Q7: Dimming functions?
RE: DALI,PIR,1-10V diming available,built-in daylight sensor available for intellgent control for option.
Q8:Finish color?
RE: Black RAL9017/White RAL9016.
Q9: What's the application of your NSF UFO high bay light?
RE: Our NSF UFO high bay light can be applied in
>Food Processing Factory,Farm,Supermarket
> Factories / Warehouses /Workshops
> Exhibitions & showrooms
> Barns and riding halls
> High rooms and halls
> Traditional lamp replacement, etc.
Q10:Dimmension?

RE: Φ400*182mm

Welcome to contact us for more information.

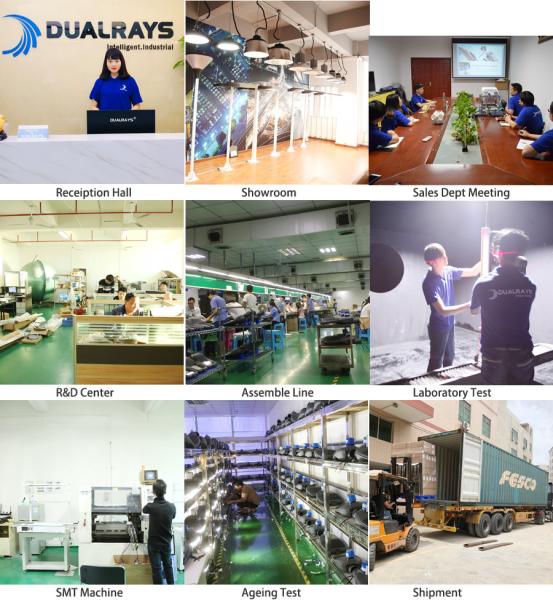

Let's meet DUALRAYS from below pictures!

Smooth Surface LED UFO High Bay Light Easy Clean NSF IP69K Power Saving

Smooth Surface LED UFO High Bay Light Easy Clean NSF IP69K Power Saving

Smooth Surface LED UFO High Bay Light Easy Clean NSF IP69K Power Saving

Smooth Surface LED UFO High Bay Light Easy Clean NSF IP69K Power Saving

Smooth Surface LED UFO High Bay Light Easy Clean NSF IP69K Power Saving

Smooth Surface LED UFO High Bay Light Easy Clean NSF IP69K Power Saving

Smooth Surface LED UFO High Bay Light Easy Clean NSF IP69K Power Saving

Smooth Surface LED UFO High Bay Light Easy Clean NSF IP69K Power Saving

Why DUALRAYS?

* Professional team: >10 years experience, own factory, >10 engineers team, powerful production capacity and QC management system, provide both good quality product and service;

* Reliable brand: Built up stable and long-term cooperation with Europe customers, got high prise and trust, and have warehouse in Netherlands for better service;

* Provide DIALux simulation: Send us your parameters of the applications, like distance, height, width, etc, our engineer team will do simulation according to your demand and recommend you the best product;

* All our LED luminaries comply with CE, RoHS standard. TUV, ENEC, VDE, SAA,C-Tick, LM79,LM80 listed for the leading products.

Smooth Surface LED UFO High Bay Light Easy Clean NSF IP69K Power Saving
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
