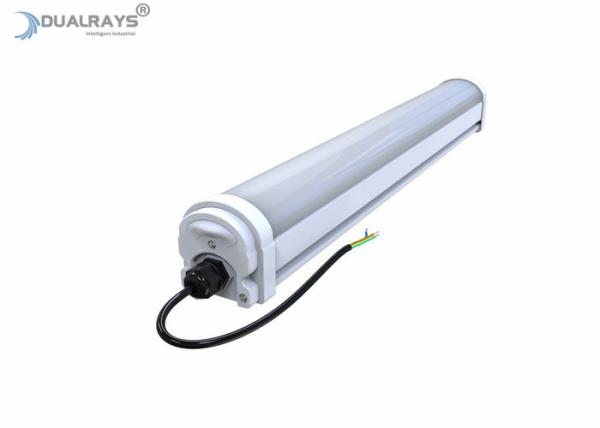

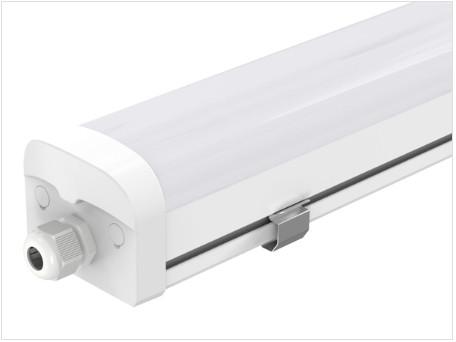

PC Housing LED Tri Proof Light 160LPW IP65 1 To 10V Dimming Eco Choice For Project
PC Housing LED Tri Proof Light 160LPW IP65 1 To 10V Dimming Eco Choice For Project
PC Housing LED Tri Proof Light 160LPW IP65 1 To 10V Dimming Eco Choice For Project
PC Housing LED Tri Proof Light 160LPW IP65 1 To 10V Dimming Eco Choice For Project
PC Housing LED Tri Proof Light 160LPW IP65 1 To 10V Dimming Eco Choice For Project
PC Housing LED Tri Proof Light 160LPW IP65 1 To 10V Dimming Eco Choice For Project
PC Housing LED Tri Proof Light 160LPW IP65 1 To 10V Dimming Eco Choice For Project
PC Housing LED Tri Proof Light 160LPW IP65 1 To 10V Dimming Eco Choice For Project
PC Housing LED Tri Proof Light 160LPW IP65 1 To 10V Dimming Eco Choice For Project
PC Housing LED Tri Proof Light 160LPW IP65 1 To 10V Dimming Eco Choice For Project
Specifications
Brand Name :
DUALRAYS
Model Number :
D3
Certification :
CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Place of Origin :
Shenzhen,China
MOQ :
10PCS
Price :
Negotiated
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
5-15 business days
Packaging Details :
Netural Package
Supply Ability :
30000PCS/Month
Efficiency :
160LPW
Dimming Function :
DALI
Junction Temperature :
<80℃
LED's Brand :
EPISTAR
IP Rating :
IP66
Life Span :
50,000 Hours
Description

PC Housing LED Tri Proof Light 160LPW IP65 1 to 10V Dimming

PC Housing LED Tri Proof Light 160LPW IP65 1 To 10V Dimming Eco Choice For Project

Model No.
 DR-TP020-CG2XPX DR-TP030-CG4XPX DR-TP040-CG4XPX DR-TP040-CG5XPX DR-TP050-CG5XPX
System Watts/W
 20W 30W 40W 40W
50W
System Efficiency/LPW
 130LPW / 160LPW Optioanl
Lumen Output/lm
 2.600/3.200±5% 3.900/4.800±5% 5.200/6.400±5% 5.200/6.400±5% 6.500/8.000±5%
Rated Input Voltage/V
 AC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional)
LEDs Light Source
 SMD2835
SDCM
 <6
CCT/K
 5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra
 >80Ra (>70Ra for Option)
Power Factor
 >0.91
THD
 <10%
Beam Angle(Optional)
 120°
UGR
 <22
LED Driver BOKE Fixed Power/ DIP Switch Power Adjustable Optional
IP Rating IP65
IK Level
 IK08
Dimming(Optional)
 1-10V, DALI,Zigbee
Sensor(Optional)
 Daylight sensor/Microwave Sensor
Emergency(Optional)
 5W@3 Hours or Customized
Protection Class
 ClassⅠ
Finishing Color(Optional)
 White RAL9016 Optional
Material
 PC+PC
Lifespan/hrs
 54.000 Hrs (Ta=30℃@L70)
Operation Temp/℃
 40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃
 - 40°C to + 65°C(-40°F to 149°F)
Installation(Optional)
 Suspension / Ceiling Mounting Optional
Certificate
 CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available
PC Housing LED Tri Proof Light 160LPW IP65 1 To 10V Dimming Eco Choice For Project
PC Housing LED Tri Proof Light 160LPW IP65 1 To 10V Dimming Eco Choice For Project
> Driver: BOKE fixed power driver,DIP switch power adjustable driver;
> Controls and Dimming: Zigbee wireless control / 1-10V Dimming / Daylight sensor,Microwave sensor,Emergency;
> Plug: European / Australia plug with 0.75mm2/1.5mm2/2.5mm2 3-pins or 5-pins (dimming) cable;
> Installation : Suspension, Wall Mounting;
> Wiring: Single or double wiring;
PC Housing LED Tri Proof Light 160LPW IP65 1 To 10V Dimming Eco Choice For Project
> Replacement for fluorescent NCF;
> Workshops and warehouse;
> Garage and car parks;
> Sport facility;
> Corridor/Gallery/Corridor;
> Outdoor & Indoor Locations;

PC Housing LED Tri Proof Light 160LPW IP65 1 To 10V Dimming Eco Choice For Project

Character/Length
2ft
4ft
5ft
PC Housing LED Tri Proof Light 160LPW IP65 1 To 10V Dimming Eco Choice For Project
A
602mm
1202mm
1502mm
B
638mm
1238mm
1538mm
C
63mm
63mm
63mm
D
73mm
73mm
73mm


PC Housing LED Tri Proof Light 160LPW IP65 1 To 10V Dimming Eco Choice For Project

PC Housing LED Tri Proof Light 160LPW IP65 1 To 10V Dimming Eco Choice For Project

PC Housing LED Tri Proof Light 160LPW IP65 1 To 10V Dimming Eco Choice For Project
PC Housing LED Tri Proof Light 160LPW IP65 1 To 10V Dimming Eco Choice For Project

INSTALLATION GUIDE
IMPORTANT SAFETY INFORMATION:
Please read all the instructions below before installation
> Make sure that the supply voltage corresponds to the rated product voltage;
> The product must be installed by a qualifed electrician in accordance with the National Electrical Code and corresponding local codes.
> If the product is damaged, do not use it!

PC Housing LED Tri Proof Light 160LPW IP65 1 To 10V Dimming Eco Choice For Project
RISK OF PERSONAL INJURY – READ and follow all WARNINGS and installation instructions.
Keep or give to the owner for future reference.

Risk of cuts: Wear gloves to prevent cuts or abrasions when removing from carton, handling, installing, and maintaining this product.
Risk of electric shock: This product must be installed in accordance with the applicable installation code by a person familiar with the construction and operation of the product and the hazards involved.
Risk of Fire: Minimum 194°F supply conductors. Consult a qualifed electrician to ensure correct branch circuit conductor. DUALRAYS® assumes no responsibility for claims arising out of improper or careless Installation or handling of this product.


PC Housing LED Tri Proof Light 160LPW IP65 1 To 10V Dimming Eco Choice For Project
(I) Emergency Function
PC Housing LED Tri Proof Light 160LPW IP65 1 To 10V Dimming Eco Choice For Project
PC Housing LED Tri Proof Light 160LPW IP65 1 To 10V Dimming Eco Choice For Project
PC Housing LED Tri Proof Light 160LPW IP65 1 To 10V Dimming Eco Choice For Project

DALI Device
PC Housing LED Tri Proof Light 160LPW IP65 1 To 10V Dimming Eco Choice For Project
Model No.
Net Weight/Kg
Outer Carton Size/mm
Gross Weight/Kg
QTY”/CTN
DR-TP020-CG2XP
12.5
670*440*200
13.2
9PCS/CTN
DR-TP030-CG4XP
15.8
1270*360*200
17.5
9PCS/CTN
DR-TP040-CG4XP
16.1
1270*360*200
18.3
9PCS/CTN
DR-TP040-CG5XP
19.1
1570*360*200
20.6
9PCS/CTN
DR-TP050-CG5XP
19.5
1570*360*200
21.4
9PCS/CTN

PC Housing LED Tri Proof Light 160LPW IP65 1 To 10V Dimming Eco Choice For Project
PC Housing LED Tri Proof Light 160LPW IP65 1 To 10V Dimming Eco Choice For Project


PC Housing LED Tri Proof Light 160LPW IP65 1 To 10V Dimming Eco Choice For Project
PC Housing LED Tri Proof Light 160LPW IP65 1 To 10V Dimming Eco Choice For Project
