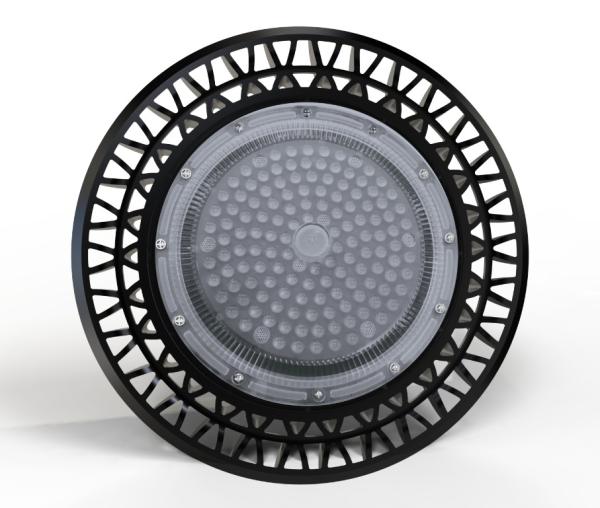

DALI KNX 0/1-10V Dimming 100W 150W 200W UFO LED High Bay Light
DALI KNX 0/1-10V Dimming 100W 150W 200W UFO LED High Bay Light
DALI KNX 0/1-10V Dimming 100W 150W 200W UFO LED High Bay Light
DALI KNX 0/1-10V Dimming 100W 150W 200W UFO LED High Bay Light
DALI KNX 0/1-10V Dimming 100W 150W 200W UFO LED High Bay Light
DALI KNX 0/1-10V Dimming 100W 150W 200W UFO LED High Bay Light
DALI KNX 0/1-10V Dimming 100W 150W 200W UFO LED High Bay Light
DALI KNX 0/1-10V Dimming 100W 150W 200W UFO LED High Bay Light
Specifications
Brand Name :
DUALRAYS
Model Number :
DR-HB150-EGXP
Certification :
CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Place of Origin :
Shenzhen,China
MOQ :
2PCS
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000PCS/Month
Delivery Time :
5-15 Bussiness Day
Packaging Details :
Netural Package/OEM and ODM Package Available
Price :
Negotiated After Inquiry
Material :
Aluminium Alloy+PC
Certificate :
CE(EMC+LVD),RoHS,TUV/GS ,D-Mark,SAA,RCM Available
Installation(Optional) :
Loop Hanging, Ceiling Mounting, Wall Mounting,Pipe Mounting
Dimension/mm :
Φ322*128mm
CRI :
≥83Ra
Storage Temp/℃ :
-40°C to + 65°C(-40°F to 149°F)
CCT :
3000/4000/5700/6500K±300K
Lifespan/hrs :
>50.000 Hrs (Ta=30 @L70)
Finishing Color(Optional) :
Black RAL9017 / White RAL9016
Protection Class :
ClassⅠ
Emergency(Optional) :
Available
Description
DALI KNX 0/1-10V Dimming 100W 150W 200W UFO LED High Bay Light

UFO LED High Bay Features:

> IP65 and IK10 for all industrial areas of application;
> Driver and housing separated by spacers;
> Adjustable ripple-lens optic with 60°/90°/120° beam angle;
> D-Mark tested for the use in paper production, wood processing etc;
> No UV or IR and completely mercury free;
> L80/B10 @ 50.000h;
> 5 years warranty;
IP Rating IP65
System Efficiency/LPW 140LPW
IK Rating IK08
Lifespan Time >50000hours
Operation Temp℃ -40℃~60℃
Sensor (Optional) Daylights Sensor,Pluggable Motion Sensor
Systems Wattage 240W

Options:

> Zigbee wireless control / 1-10V Dimming / Motion sensor / Emergency / DALI control / Daylight sensor.

> Driver: Meanwell HBG(Round),ELG/HLG(Retangle),Sosen
> Reflector : PC reflector with / without cover.pipe mounting.

DALI KNX 0/1-10V Dimming 100W 150W 200W UFO LED High Bay Light
DALI KNX 0/1-10V Dimming 100W 150W 200W UFO LED High Bay Light

DALI KNX 0/1-10V Dimming 100W 150W 200W UFO LED High Bay Light

> Shipyards;

> Mines;

> Workshops;

> Warehouse;

> Highway toll stations;

> Gas stations;

> Supermarkets;

> Exhibition center;

DALI KNX 0/1-10V Dimming 100W 150W 200W UFO LED High Bay Light
DALI KNX 0/1-10V Dimming 100W 150W 200W UFO LED High Bay Light
DALI KNX 0/1-10V Dimming 100W 150W 200W UFO LED High Bay Light
Character/Power
100W
150W
200W
240W
DALI KNX 0/1-10V Dimming 100W 150W 200W UFO LED High Bay Light
A
Ø350mm
Ø350mm
Ø420mm
Ø420mm
B
210mm
210mm
220mm
220mm
DALI KNX 0/1-10V Dimming 100W 150W 200W UFO LED High Bay Light
DALI KNX 0/1-10V Dimming 100W 150W 200W UFO LED High Bay Light
DALI KNX 0/1-10V Dimming 100W 150W 200W UFO LED High Bay LightDALI KNX 0/1-10V Dimming 100W 150W 200W UFO LED High Bay Light
DALI KNX 0/1-10V Dimming 100W 150W 200W UFO LED High Bay Light
DALI KNX 0/1-10V Dimming 100W 150W 200W UFO LED High Bay Light
DALI KNX 0/1-10V Dimming 100W 150W 200W UFO LED High Bay Light

DALI KNX 0/1-10V Dimming 100W 150W 200W UFO LED High Bay Light
DALI KNX 0/1-10V Dimming 100W 150W 200W UFO LED High Bay Light

DALI KNX 0/1-10V Dimming 100W 150W 200W UFO LED High Bay Light

DALI KNX 0/1-10V Dimming 100W 150W 200W UFO LED High Bay Light

DALI KNX 0/1-10V Dimming 100W 150W 200W UFO LED High Bay Light

DALI KNX 0/1-10V Dimming 100W 150W 200W UFO LED High Bay Light

DALI KNX 0/1-10V Dimming 100W 150W 200W UFO LED High Bay Light

DALI KNX 0/1-10V Dimming 100W 150W 200W UFO LED High Bay Light
1.What’s Power factor ?
RE: The active power divided by the apparent power (i.e product of the rms input voltage and rms input current of a driver.)
2.What’s Smart Lighting ?
RE: Automated lighting control using sensors and /or scheduling switches.
3.What’s Watt ?
RE: The unit of electrical power as used by an electrical device during its operation. Many lamps come with rating in watts to indicate their power consumption.
4.How to explain “ZigBee“ ?
RE: A low -power ,low date rate, local area wireless network; ideal for lighting control.
5.How to explain “lumen output “ ?
RE: The total lumens emitted of a light source, system, or solution.
6.How to explain “luminous Efficacy“ ?
RE: A measure of how well a light source products visible light expressed as lumens /Watt.

DALI KNX 0/1-10V Dimming 100W 150W 200W UFO LED High Bay Light
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
