Gymnasium Lighting UFO LED High Bay Lamp HB4 Pluggable Motion Sensor 100W 150W 200W 240W D-Mark Listed
Gymnasium Lighting UFO LED High Bay Lamp HB4 Pluggable Motion Sensor 100W 150W 200W 240W D-Mark Listed
Gymnasium Lighting UFO LED High Bay Lamp HB4 Pluggable Motion Sensor 100W 150W 200W 240W D-Mark Listed
Gymnasium Lighting UFO LED High Bay Lamp HB4 Pluggable Motion Sensor 100W 150W 200W 240W D-Mark Listed
Gymnasium Lighting UFO LED High Bay Lamp HB4 Pluggable Motion Sensor 100W 150W 200W 240W D-Mark Listed
Gymnasium Lighting UFO LED High Bay Lamp HB4 Pluggable Motion Sensor 100W 150W 200W 240W D-Mark Listed
Gymnasium Lighting UFO LED High Bay Lamp HB4 Pluggable Motion Sensor 100W 150W 200W 240W D-Mark Listed
Gymnasium Lighting UFO LED High Bay Lamp HB4 Pluggable Motion Sensor 100W 150W 200W 240W D-Mark Listed
Specifications
Brand Name :
DUALRAYS/OEM
Model Number :
DR-HB200-DG2
Certification :
CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Place of Origin :
Shenzhen,China
MOQ :
2PCS
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000PCS/Month
Delivery Time :
5-15 Bussiness Day
Packaging Details :
Netural Package/OEM and ODM Package Available
Price :
Negotiated After Inquiry
Certificate :
CE(EMC+LVD),RoHS,TUV/GS ,D-Mark,SAA,RCM Available
Installation(Optional) :
Loop Hanging, Ceiling Mounting, Wall Mounting,Pipe Mounting
Storage Temp/℃ :
-40°C to + 65°C(-40°F to 149°F)
Operation Temp/℃ :
-40°C to + 50°C(-40°F to 122°F)
CRI :
>83Ra
Warranty :
5 Years
IP Rating :
IP65
Vibrition :
IK08
Light source :
LUXEON SMD3030 LEDs
Description

Gymnasium Lighting UFO LED High Bay Lamp HB4 Pluggable Motion Sensor 100W 150W 200W 240W D-Mark Listed

Gymnasium Lighting UFO LED High Bay Lamp HB4 Pluggable Motion Sensor 100W 150W 200W 240W D-Mark Listed
Gymnasium Lighting UFO LED High Bay Lamp HB4 Pluggable Motion Sensor 100W 150W 200W 240W D-Mark Listed

Gymnasium Lighting UFO LED High Bay Lamp HB4 Pluggable Motion Sensor 100W 150W 200W 240W D-Mark Listed

Gymnasium Lighting UFO LED High Bay Lamp HB4 Pluggable Motion Sensor 100W 150W 200W 240W D-Mark Listed

Gymnasium Lighting UFO LED High Bay Lamp HB4 Pluggable Motion Sensor 100W 150W 200W 240W D-Mark Listed

Gymnasium Lighting UFO LED High Bay Lamp HB4 Pluggable Motion Sensor 100W 150W 200W 240W D-Mark Listed

Gymnasium Lighting UFO LED High Bay Lamp HB4 Pluggable Motion Sensor 100W 150W 200W 240W D-Mark Listed

Gymnasium Lighting UFO LED High Bay Lamp HB4 Pluggable Motion Sensor 100W 150W 200W 240W D-Mark Listed

Gymnasium Lighting UFO LED High Bay Lamp HB4 Pluggable Motion Sensor 100W 150W 200W 240W D-Mark Listed

Gymnasium Lighting UFO LED High Bay Lamp HB4 Pluggable Motion Sensor 100W 150W 200W 240W D-Mark Listed

Gymnasium Lighting UFO LED High Bay Lamp HB4 Pluggable Motion Sensor 100W 150W 200W 240W D-Mark ListedGymnasium Lighting UFO LED High Bay Lamp HB4 Pluggable Motion Sensor 100W 150W 200W 240W D-Mark Listed
> Highly brightness LUXEON SMD3030 LEDs,energy efficient - up to 160 lm/w;
> Die-casting Al for excellent heat dissipation;

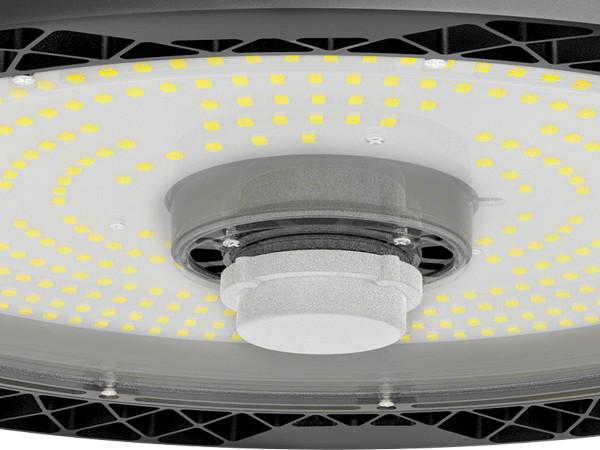

> Pluggable built-in radar motion sensor,plug and play;
> Superior PC reflector-optic for low glare applications,PMMA,glass cover available;
> IP65 and IK10 for all industrial areas of application;
> Driver and housing separated by spacers;
> Adjustable ripple-lens optic with 60°/90°/120° beam angle;
> D-Mark tested for the use in paper production, wood processing etc;
> No UV or IR and completely mercury free;
> L80/B10 @ 50.000h;
> 5 years warranty;

Options:
> Driver: Meanwell HBG(Round),ELG/HLG(Retangle),Sosen
> Controls and Dimming: Zigbee wireless control / 1-10V Dimming / Motion sensor / Emergency / DALI control / Daylight sensor.
> Reflector : PC reflector with / without cover.pipe mounting.
> Installation: loop hanging, ceiling mounting, wall mounting,
> Customized supported for special projects.
Gymnasium Lighting UFO LED High Bay Lamp HB4 Pluggable Motion Sensor 100W 150W 200W 240W D-Mark Listed
Character/Power
100W
150W
200W
240W
Gymnasium Lighting UFO LED High Bay Lamp HB4 Pluggable Motion Sensor 100W 150W 200W 240W D-Mark Listed
A
Ø320mm
Ø320mm
Ø390mm
Ø390mm
B
200mm
200mm
205mm
205mm
Gymnasium Lighting UFO LED High Bay Lamp HB4 Pluggable Motion Sensor 100W 150W 200W 240W D-Mark Listed
Model No. DR-HB100-DGXP DR-HB150-DGXP DR-HB200-DGXP DR-HB240-DGXP
System Watts/W 100W 150W 200W 240W
System Efficiency/LPW 140LPW
Lumen Output/lm 14.000±5% 21.000±5% 28.000±5% 33.600±5%
Rated Input Voltage/V AC100~277V 50/60Hz
LEDs Light Source SMD3030
SDCM <6
CCT/K 3000K/4000K/5000K/5700K/6500K

Gymnasium Lighting UFO LED High Bay Lamp HB4 Pluggable Motion Sensor 100W 150W 200W 240W D-Mark Listed

Gymnasium Lighting UFO LED High Bay Lamp HB4 Pluggable Motion Sensor 100W 150W 200W 240W D-Mark Listed

Gymnasium Lighting UFO LED High Bay Lamp HB4 Pluggable Motion Sensor 100W 150W 200W 240W D-Mark Listed

Gymnasium Lighting UFO LED High Bay Lamp HB4 Pluggable Motion Sensor 100W 150W 200W 240W D-Mark Listed

Gymnasium Lighting UFO LED High Bay Lamp HB4 Pluggable Motion Sensor 100W 150W 200W 240W D-Mark Listed

Gymnasium Lighting UFO LED High Bay Lamp HB4 Pluggable Motion Sensor 100W 150W 200W 240W D-Mark Listed

Gymnasium Lighting UFO LED High Bay Lamp HB4 Pluggable Motion Sensor 100W 150W 200W 240W D-Mark Listed

Gymnasium Lighting UFO LED High Bay Lamp HB4 Pluggable Motion Sensor 100W 150W 200W 240W D-Mark Listed

Gymnasium Lighting UFO LED High Bay Lamp HB4 Pluggable Motion Sensor 100W 150W 200W 240W D-Mark Listed

Gymnasium Lighting UFO LED High Bay Lamp HB4 Pluggable Motion Sensor 100W 150W 200W 240W D-Mark Listed
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
