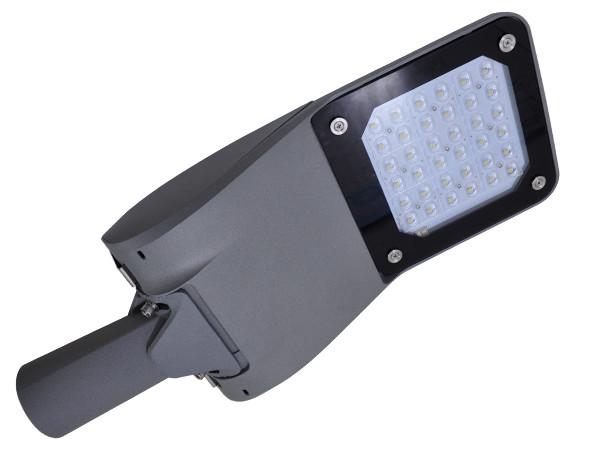

60 Watt Outdoor Zigbee Dimming LED Street Lights 150LPW Efficiency AC DC Input Solar Powered Available
60 Watt Outdoor Zigbee Dimming LED Street Lights 150LPW Efficiency AC DC Input Solar Powered Available
60 Watt Outdoor Zigbee Dimming LED Street Lights 150LPW Efficiency AC DC Input Solar Powered Available
60 Watt Outdoor Zigbee Dimming LED Street Lights 150LPW Efficiency AC DC Input Solar Powered Available
60 Watt Outdoor Zigbee Dimming LED Street Lights 150LPW Efficiency AC DC Input Solar Powered Available
60 Watt Outdoor Zigbee Dimming LED Street Lights 150LPW Efficiency AC DC Input Solar Powered Available
60 Watt Outdoor Zigbee Dimming LED Street Lights 150LPW Efficiency AC DC Input Solar Powered Available
60 Watt Outdoor Zigbee Dimming LED Street Lights 150LPW Efficiency AC DC Input Solar Powered Available
Specifications
Brand Name :
DUALRAYS/OEM
Model Number :
DR-ST060-DG1
Certification :
CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Place of Origin :
Shenzhen,China
MOQ :
2PCS
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000pcs/month
Delivery Time :
5-15 business days
Packaging Details :
Netural Package/OEM and ODM Package Available
Price :
Negotiated After Inquiry
Input Voltage :
AC85～277V 50/60Hz
Power Ranges :
30W/60W/90W/120W/150W/180W
Lumen :
4,200-25,200lm
CCT :
3000/4000/5700/6500K±200K
CRI :
>70Ra (>80Ra for Option)
Beam Angle(Optional) :
TypeⅠ/TypeⅡ(Long & Medium)/TypeⅢ(Medium)/TypeⅣ /TypeⅤ (Medium) (Medium)
Dimming(Optional) :
0/1-10V/PWM/DALI/Zigbee
Protection Class :
ClassⅠ
Finishing Color(Optional) :
Black RAL9017 / White RAL9016
Material :
Aluminum+PC+Toughened Glass
Lifespan/hrs :
>50.000 Hrs (Ta=30 @L70)
Operation Temp/℃ :
-40°C to + 50°C(-40°F to 122°F)
Pipe Diameter :
φ60mm
Certificate :
CE(EMC+LVD),RoHS,TUV/GS ,D-Mark,SAA,RCM Available
Description

60 Watt Outdoor Zigbee Dimming LED Street Lights 150LPW Efficiency AC DC Input Solar Powered Available

Efficiency:
STANDARDLine:
PROLine: 120LPW
PRIMELine: 150LPW

Features:
* LUMILEDS LUXEON High Brightness SMD5050/3030 LEDs,SOSEN/Meanwell/Inventronics Driver;
* IP66 Protection;
* ±10°/-90°(<90W) or ±15°/-90°(>90W) lamp head adjustable;
* Professional 50(V)*120(H)°/75(V)*150°(H) optic for option;
* Various Intelligent Control: 1-10V, DALI, Microwave Sensor, Daylight Sensor, Zigbee for Option;
* Customized supported for special projects;
60 Watt Outdoor Zigbee Dimming LED Street Lights 150LPW Efficiency AC DC Input Solar Powered Available
60 Watt Outdoor Zigbee Dimming LED Street Lights 150LPW Efficiency AC DC Input Solar Powered Available
> High brightness LUXEON SMD3030 LEDs,energy efficient - up to 150 lm/w;
> Die-casting Al for excellent heat dissipation;
> Superior PC reflector-optic for low glare applications,and toughened glass protection;
> IP66 and IK10 for road lighting application;
> Driver and housing separated by spacers;
> Professional 50(V)*120(H)°/75(V)*150°(H) optic for option;
> ±10°/-90°(<90W) or ±15°/-90°(>90W) lamp head adjustable;
> No UV or IR and completely mercury free;
> L80/B10 @ 50.000h;
> 5 years warranty,7 or 10 years warranty negotiated;

Options:
> Driver: ELG/HLG,Sosen;
> Controls and Dimming: 1-10V, DALI, PWM,Zigbee Wireless Dimming for option;
> 10KA SPD,20KA Meanwell SPD optional;
> 3-pins photocell controller ON/OFF,and 7-pins LORA/NEMA socket smart wireless control available;
> Zigbee module (Single-lamp Controller and centralized manager) with software for option;
> DALI driver and DALI Centralized Manager optional;
> Light pole adapter for different poles optional;
> Customized supported for special projects;
60 Watt Outdoor Zigbee Dimming LED Street Lights 150LPW Efficiency AC DC Input Solar Powered Available
* Roadways.
* Avenues.
* Walkways.
* Loading Area.
* Parking lot.
* Playground.
* Sport and Stadium.

60 Watt Outdoor Zigbee Dimming LED Street Lights 150LPW Efficiency AC DC Input Solar Powered Available
Model No. DR-ST030-DGX DR-ST060-DGX DR-ST090-DGX DR-ST120-DGX DR-ST150-DGX DR-ST180-DGX
System Watts/W 30W 60W 90W 120W 150W 180W
System Efficiency/LPW 120LPW/150LPW (Optional)
Rated Input Voltage/V AC100~277V 50/60Hz
Lumen Output/lm 3.600~4.500±5% 7.200~9.000±5% 10.800~13.500±5% 14.400~18.000±5% 18.000~22.500±5% 21.600~27.000±5%
Finishing Color(Optional) Black RAL9017 / White RAL9016
Protection Class ClassⅠ
LED Driver Meanwell ELG/HLG,Sosen
Dimming(Optional) 0/1-10V/PWM/DALI/Zigbee
Beam Angle(Optional) TypeⅠ/TypeⅡ(Long & Medium)/TypeⅢ(Medium)/TypeⅣ /TypeⅤ (Medium) (Medium)
Lifespan/hrs >50.000 Hrs (Ta=30 @L70)
Operation Temp/℃ -40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃ -40°C to + 65°C(-40°F to 149°F)
Pipe Diameter φ60mm
Certificate CE(EMC+LVD),RoHS,D-Mark,SAA,RCM Available

60 Watt Outdoor Zigbee Dimming LED Street Lights 150LPW Efficiency AC DC Input Solar Powered Available

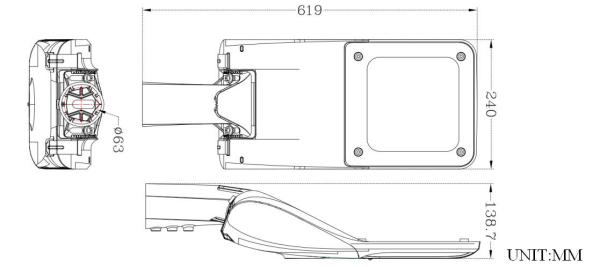

30W/60W Version
60 Watt Outdoor Zigbee Dimming LED Street Lights 150LPW Efficiency AC DC Input Solar Powered Available
90W,120W/150W/180W Version
60 Watt Outdoor Zigbee Dimming LED Street Lights 150LPW Efficiency AC DC Input Solar Powered Available

60 Watt Outdoor Zigbee Dimming LED Street Lights 150LPW Efficiency AC DC Input Solar Powered Available
60 Watt Outdoor Zigbee Dimming LED Street Lights 150LPW Efficiency AC DC Input Solar Powered Available

60 Watt Outdoor Zigbee Dimming LED Street Lights 150LPW Efficiency AC DC Input Solar Powered Available
60 Watt Outdoor Zigbee Dimming LED Street Lights 150LPW Efficiency AC DC Input Solar Powered Available
60 Watt Outdoor Zigbee Dimming LED Street Lights 150LPW Efficiency AC DC Input Solar Powered Available
60 Watt Outdoor Zigbee Dimming LED Street Lights 150LPW Efficiency AC DC Input Solar Powered Available

60 Watt Outdoor Zigbee Dimming LED Street Lights 150LPW Efficiency AC DC Input Solar Powered Available

60 Watt Outdoor Zigbee Dimming LED Street Lights 150LPW Efficiency AC DC Input Solar Powered Available

60 Watt Outdoor Zigbee Dimming LED Street Lights 150LPW Efficiency AC DC Input Solar Powered Available

60 Watt Outdoor Zigbee Dimming LED Street Lights 150LPW Efficiency AC DC Input Solar Powered Available

60 Watt Outdoor Zigbee Dimming LED Street Lights 150LPW Efficiency AC DC Input Solar Powered Available

60 Watt Outdoor Zigbee Dimming LED Street Lights 150LPW Efficiency AC DC Input Solar Powered Available

60 Watt Outdoor Zigbee Dimming LED Street Lights 150LPW Efficiency AC DC Input Solar Powered Available

60 Watt Outdoor Zigbee Dimming LED Street Lights 150LPW Efficiency AC DC Input Solar Powered Available
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
