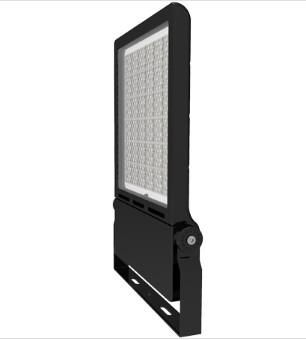

DUALRAYS 50W 100W 150W 200W 300W High Mast Outdoor Modular LED Module Floodlight
DUALRAYS 50W 100W 150W 200W 300W High Mast Outdoor Modular LED Module Floodlight
DUALRAYS 50W 100W 150W 200W 300W High Mast Outdoor Modular LED Module Floodlight
DUALRAYS 50W 100W 150W 200W 300W High Mast Outdoor Modular LED Module Floodlight
DUALRAYS 50W 100W 150W 200W 300W High Mast Outdoor Modular LED Module Floodlight
DUALRAYS 50W 100W 150W 200W 300W High Mast Outdoor Modular LED Module Floodlight
DUALRAYS 50W 100W 150W 200W 300W High Mast Outdoor Modular LED Module Floodlight
DUALRAYS 50W 100W 150W 200W 300W High Mast Outdoor Modular LED Module Floodlight
Specifications
Brand Name :
DUALRAYS/OEM
Model Number :
DR-FL200-CGXP
Certification :
CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Place of Origin :
Shenzhen,China
MOQ :
2PCS
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000PCS/Month
Delivery Time :
5-15 Bussiness Day
Packaging Details :
Netural Package/OEM and ODM Package Available
Price :
Negotiated After Inquiry
Input Voltage :
AC85～277V 50/60Hz
Power Range :
50W/100W/150W/200W/250W/300W/400W/500W/600W
Application :
Football court,tennis court ect sport lighting area
Lens :
10°/25°/45°/60°/90°/30*70°/80*140°/60*130°
CRI :
>83Ra
Surge Protection :
6~10KV SPD Driver,Exterior SPD 10KV() or 20KV Meanwell Optional
Dimming(Optional) :
0/1-10V/PWM/DALI/Zigbee
Ip rating :
IP66
Description

DUALRAYS 50W 100W 150W 200W 300W High Mast Outdoor Modular LED Module Floodlight

DUALRAYS 50W 100W 150W 200W 300W High Mast Outdoor Modular LED Module Floodlight
DUALRAYS 50W 100W 150W 200W 300W High Mast Outdoor Modular LED Module Floodlight
DUALRAYS 50W 100W 150W 200W 300W High Mast Outdoor Modular LED Module Floodlight
DUALRAYS 50W 100W 150W 200W 300W High Mast Outdoor Modular LED Module Floodlight
DUALRAYS 50W 100W 150W 200W 300W High Mast Outdoor Modular LED Module Floodlight
DUALRAYS 50W 100W 150W 200W 300W High Mast Outdoor Modular LED Module Floodlight

DUALRAYS 50W 100W 150W 200W 300W High Mast Outdoor Modular LED Module Floodlight

Model No. DR-FL200-CGXP
System Watts/W 200W
System Efficiency/LPW 150LPW
Lumen Output/lm 30.000±5%
Dimming(Optional) 0/1-10V/PWM/DALI/Zigbee
Installation(Optional) Ground Mounting, Wall Mounting, Ceiling Mounting,Pipe Mounting
Certificate CE(EMC+LVD),RoHS,D-Mark,SAA,RCM Available
Finishing Color(Optional) Black RAL9017 / White RAL9016
Protection Class ClassⅠ
LED Driver Meanwell XLG/ELG/HLG,Sosen
Surge Protection 6~10KV SPD Driver,Exterior SPD 10KV() or 20KV Meanwell Optional
Rated Input Voltage/V AC100~277V 50/60Hz
LEDs Light Source SMD3030
SDCM <6
CCT/K 3000K/4000K/5000K/5700K/6500K

Efficiency:
STANDARDLine:
PROLine: 150LPW
PRIMELine:

Features:
* LUMILEDS LUXEON High Brightness SMD3030 LEDs,SOSEN/Meanwell Driver;
* IP65 Protection;
* 15°/30°/45°/60°/90°/30*70°/80*140°/60*130°beam angle optional;
* D-Mark tested for the use in paper production,wood processing etc with toughened glass;
* Multiple installations:Ground Mounting, Wall Mounting, Ceiling Mounting,Pipe Mounting;
* Various intelligent control: 1-10V, DALI, PWM,Zigbee Wireless Dimming for option;;
* ±90° adjustable European bracket;
* Customized supported for special projects;

DUALRAYS 50W 100W 150W 200W 300W High Mast Outdoor Modular LED Module Floodlight
DUALRAYS 50W 100W 150W 200W 300W High Mast Outdoor Modular LED Module Floodlight

Options:
> Driver: Sosen,Meanwell ELG/HLG driver;
> Controls and Dimming: 1-10V, DALI,PWM,Zigbee;
> Surge Protection Device: Meanwell SPD-20 20KV Surge Protector;
> Lens : Symmetrical 30°/60°/90°/120°,Asymmetrical/Type II / Type III / Type IV;
> Microwave Motion Sensor;

DUALRAYS 50W 100W 150W 200W 300W High Mast Outdoor Modular LED Module Floodlight
> Airports & Harbors
> Billboard illumination
> Large recreational sports facilities
> Industrial areas & Landscape buildings
> Roundabouts and motorway junctions

DUALRAYS 50W 100W 150W 200W 300W High Mast Outdoor Modular LED Module Floodlight
Model No.
 DR-FL050-CGXX DR-FL100-CGXX DR-FL150-CGXX DR-FL200-CGXX DR-FL300-CGXX
System Watts/W
 50W 100W 150W 200W
300W
System Efficiency/LPW
 120~125LPW
Lumen Output/lm
 6.500±5% 12.500±5% 18.750±5% 25.000±5% 37.500±5%
Rated Input Voltage/V
 AC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional)
LEDs Light Source
 SMD3030
SDCM
 <5
CCT/K
 5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra
 >70Ra (>80Ra for Option)
Power Factor
 >0.95
THD
 <10%
Beam Angle(Optional)
 Symmetrical 30°/60°/90°/120°,Asymmetrical/Type II / Type III / Type IV beam angle optional
UGR
 <25
Surge Protection
 6~10KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver
 Sosen,Meanwell ELG / HLG Optional
IP Rating
 IP65
Dimming(Optional)
 1-10V, DALI,PWM,Zigbee for Option
Safety Protection Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection
Sensor (Optional) Motion Sensor
Protection Class
 ClassⅠ
Finishing Color(Optional)
 Black RAL9017(Standard) / White RAL9016 Optional
Material
 Aluminum+Toughened Glass
Lifespan/hrs
 62.000 Hrs (Ta=30℃@L70)
Operation Temp/℃
 40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃
 - 40°C to + 65°C(-40°F to 149°F)
Switching Cycles 100,000 Times
Certificate
 CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

DUALRAYS 50W 100W 150W 200W 300W High Mast Outdoor Modular LED Module Floodlight
Character/Power
100W
150W
200W
240W
300W
DUALRAYS 50W 100W 150W 200W 300W High Mast Outdoor Modular LED Module Floodlight
A / mm
389
389
437
493
582
B / mm
297
297
346
379
444
C / mm
57
57
57
57
60

DUALRAYS 50W 100W 150W 200W 300W High Mast Outdoor Modular LED Module Floodlight
DUALRAYS 50W 100W 150W 200W 300W High Mast Outdoor Modular LED Module Floodlight
DUALRAYS 50W 100W 150W 200W 300W High Mast Outdoor Modular LED Module Floodlight
DUALRAYS 50W 100W 150W 200W 300W High Mast Outdoor Modular LED Module FloodlightDUALRAYS 50W 100W 150W 200W 300W High Mast Outdoor Modular LED Module Floodlight
DUALRAYS 50W 100W 150W 200W 300W High Mast Outdoor Modular LED Module Floodlight

DUALRAYS 50W 100W 150W 200W 300W High Mast Outdoor Modular LED Module Floodlight

DUALRAYS 50W 100W 150W 200W 300W High Mast Outdoor Modular LED Module Floodlight

DUALRAYS 50W 100W 150W 200W 300W High Mast Outdoor Modular LED Module Floodlight

DUALRAYS 50W 100W 150W 200W 300W High Mast Outdoor Modular LED Module Floodlight

DUALRAYS 50W 100W 150W 200W 300W High Mast Outdoor Modular LED Module Floodlight
Model No.
Net Weight/Kg
Outer Carton Size/mm
Gross Weight/Kg
QTY”/CTN
DR-FL050-CGXX
3.6
355*350*165
4.5
1PCS/CTN
DR-FL100-CGXX
3.8
355*350*165
4.7
1PCS/CTN
DR-FL150-CGXX
4.5
415*410*175
5.8
1PCS/CTN
DR-FL200-CGXX
5.7
475*470*195
7.3
1PCS/CTN
DR-FL300-CGXX
9.3
475*470*195
11.5
1PCS/CTN

FAQ

Q1:What is a flood light?
RE:LED floodlights are lamps that specify that the illuminance on the illuminated surface is higher than the surrounding environment. Also called the spotlight. Normally, it can aim in any direction and has a structure that is not affected by weather conditions. It is mainly used for large-scale operation sites, general constructions, stadiums, overpasses, memorial monuments, parks and flower beds.

Floodlight (Floodlight), a floodlight is a point light source that can illuminate equally in all directions. Its illumination range can be adjusted arbitrarily, and it appears as a regular octahedron icon in the scene. Floodlights are the most common light source used in the production of function pictures. Standard floodlights are used to illuminate the entire scene.

Q2: What are the advantages of flood light?

RE:Advantages of LED flood light;

①High-purity aluminum reflector, the most accurate beam and the best reflection effect.

②Symmetrical narrow-angle, wide-angle and asymmetric light distribution systems.

③It is troublesome to change the light bulb with the open type behind.

④The lamps are equipped with a scale board to adjust the projection angle.

⑤It is suitable for lighting in large places and buildings.

DUALRAYS 50W 100W 150W 200W 300W High Mast Outdoor Modular LED Module Floodlight

DUALRAYS 50W 100W 150W 200W 300W High Mast Outdoor Modular LED Module Floodlight

DUALRAYS 50W 100W 150W 200W 300W High Mast Outdoor Modular LED Module Floodlight

DUALRAYS 50W 100W 150W 200W 300W High Mast Outdoor Modular LED Module Floodlight

DUALRAYS 50W 100W 150W 200W 300W High Mast Outdoor Modular LED Module Floodlight

Q1: IP Rating?
RE: IP66.

Q2: Labeling ?
RE: Neutral labeling/ Custom designed labels / Laser printing labels (at request).

Q3: Finish color?
RE: Standard colors: Silver,other colors can be customized, based on MOQ 50PCS.

Q4: Dimming functions?
RE: PIR sensor,Emergency,1-10V,DALI,Microwave sensor is available.

Q5: Is there cheap shipping cost to import to our country?
RE: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much time.For urgent
orders,we suggest via air to airport plus our ship partner send to your door.

Q6:Can we get support if we have our own market position?
RE: Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.

We are proud to provide innovative designs,affordable LED luminaires,high-touch service, excellent customer experience for the leading distributor,wholesaler,and contractor from Western Europe and Oceania.

DUALRAYS 50W 100W 150W 200W 300W High Mast Outdoor Modular LED Module Floodlight

In addition,we can provide our customers value added service with Dialux software for lighting design projects free of charge.

DUALRAYS 50W 100W 150W 200W 300W High Mast Outdoor Modular LED Module Floodlight (Partnership)

Dualrays adheres to independent innovation, Dualraysers try to build a world well-known LED industrial Lighting Brand.　

DUALRAYS 50W 100W 150W 200W 300W High Mast Outdoor Modular LED Module Floodlight

(Customer Portfolio)

Dualrays is practicing the enterprise management principle “Perfect or Nothing”.

DUALRAYS 50W 100W 150W 200W 300W High Mast Outdoor Modular LED Module Floodlight

In addition,we can provide our customers value added service with Dialux software for lighting design projects free of charge.
DUALRAYS 50W 100W 150W 200W 300W High Mast Outdoor Modular LED Module Floodlight DUALRAYS 50W 100W 150W 200W 300W High Mast Outdoor Modular LED Module Floodlight (DIALUX Simulation)

Dualrays adheres to independent innovation, Dualraysers try to build a world well-known LED industrial lighting Brand　
DUALRAYS 50W 100W 150W 200W 300W High Mast Outdoor Modular LED Module Floodlight (Partnership)
DUALRAYS 50W 100W 150W 200W 300W High Mast Outdoor Modular LED Module Floodlight
DUALRAYS 50W 100W 150W 200W 300W High Mast Outdoor Modular LED Module Floodlight

Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
