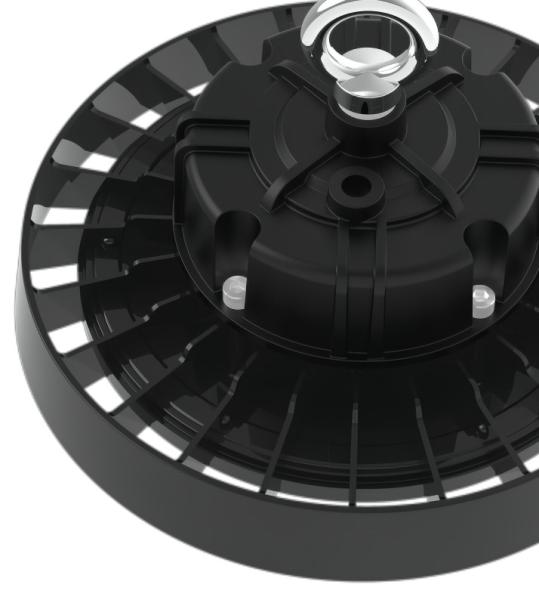

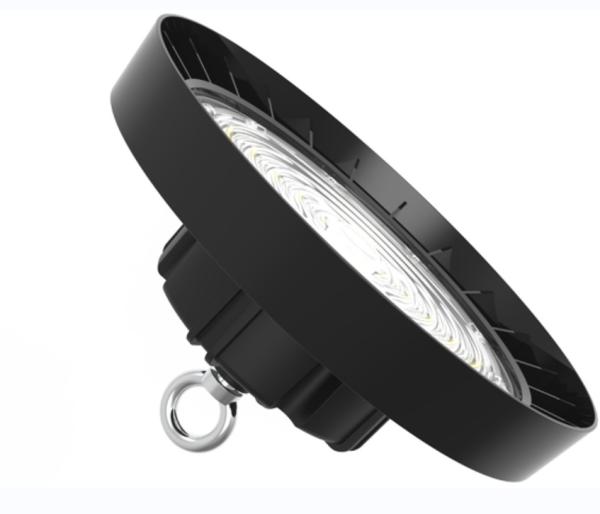

UFO High Bay Light 100W 150W 200W Support Loop Hanging Ceiling Mounting Wall Mounting Instaltion Model
UFO High Bay Light 100W 150W 200W Support Loop Hanging Ceiling Mounting Wall Mounting Instaltion Model
UFO High Bay Light 100W 150W 200W Support Loop Hanging Ceiling Mounting Wall Mounting Instaltion Model
UFO High Bay Light 100W 150W 200W Support Loop Hanging Ceiling Mounting Wall Mounting Instaltion Model
UFO High Bay Light 100W 150W 200W Support Loop Hanging Ceiling Mounting Wall Mounting Instaltion Model
UFO High Bay Light 100W 150W 200W Support Loop Hanging Ceiling Mounting Wall Mounting Instaltion Model
UFO High Bay Light 100W 150W 200W Support Loop Hanging Ceiling Mounting Wall Mounting Instaltion Model
UFO High Bay Light 100W 150W 200W Support Loop Hanging Ceiling Mounting Wall Mounting Instaltion Model
Specifications
Brand Name :
DUALRAYS
Model Number :
DR-HB200-CGXP
Certification :
CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Place of Origin :
Shenzhen,China
MOQ :
2PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, Paypal
Delivery Time :
5-15 Bussiness Day
Packaging Details :
Netural Package/OEM and ODM Package Available
Supply Ability :
100000PCS/Month
Power Effciency/LPW :
140LPW
Power Factor :
>0.95
Operation Temperature :
-40℃~+50℃
CRI（Ra） :
>80Ra(>70Ra For Option)
Warranty :
5 Years
Material :
Aluminium + PC
IP Rating :
IP65
Life Span :
50,000 Hours
Description
UFO High Bay Light 100W 150W 200W Support Loop Hanging Ceiling Mounting Wall Mounting Instaltion Model
UFO LED High Bay Light Production Advantage:
> DUALRAYS own-developed built-in driver,slim design,compact and durable;
> Adjustable ripple-lens optic with 60°/90°/120° beam angle;
> IP65 and IK08 for all industrial areas of application;
> Die-casting Al for excellent heat dissipation;
> Customized supported for special projects.
> 5 years warranty;
LEDs Light Source SMD3030
Lumen Output/lm 28000±5%
Model NO. DR-HB200-CGXP
CRI(Ra) >80Ra(>70Ra for option)
Input Wattage AC 100~277V 50/60Hz
IP Rating IP65
System Efficiency/LPW 140LPW
IK Rating IK08
THD <10%
Operation Temp℃ -40℃~60℃
Sensor (Optional) Daylights Sensor
Systems Wattage 200W
UFO High Bay Light 100W 150W 200W Support Loop Hanging Ceiling Mounting Wall Mounting Instaltion Model
> Factories / Warehouses /Workshops
> Exhibitions & showrooms
> Barns and riding halls
> High rooms and halls
> Traditional lamp replacement
UFO High Bay Light 100W 150W 200W Support Loop Hanging Ceiling Mounting Wall Mounting Instaltion Model

UFO High Bay Light 100W 150W 200W Support Loop Hanging Ceiling Mounting Wall Mounting Instaltion Model

UFO High Bay Light 100W 150W 200W Support Loop Hanging Ceiling Mounting Wall Mounting Instaltion Model​

UFO High Bay Light 100W 150W 200W Support Loop Hanging Ceiling Mounting Wall Mounting Instaltion Model

UFO High Bay Light 100W 150W 200W Support Loop Hanging Ceiling Mounting Wall Mounting Instaltion Model
UFO High Bay Light 100W 150W 200W Support Loop Hanging Ceiling Mounting Wall Mounting Instaltion Model

UFO High Bay Light 100W 150W 200W Support Loop Hanging Ceiling Mounting Wall Mounting Instaltion Model

UFO High Bay Light 100W 150W 200W Support Loop Hanging Ceiling Mounting Wall Mounting Instaltion Model


UFO High Bay Light 100W 150W 200W Support Loop Hanging Ceiling Mounting Wall Mounting Instaltion Model

UFO High Bay Light 100W 150W 200W Support Loop Hanging Ceiling Mounting Wall Mounting Instaltion Model

UFO High Bay Light 100W 150W 200W Support Loop Hanging Ceiling Mounting Wall Mounting Instaltion Model

UFO High Bay Light 100W 150W 200W Support Loop Hanging Ceiling Mounting Wall Mounting Instaltion Model
UFO High Bay Light 100W 150W 200W Support Loop Hanging Ceiling Mounting Wall Mounting Instaltion Model

UFO High Bay Light 100W 150W 200W Support Loop Hanging Ceiling Mounting Wall Mounting Instaltion Model

UFO High Bay Light 100W 150W 200W Support Loop Hanging Ceiling Mounting Wall Mounting Instaltion Model

UFO High Bay Light 100W 150W 200W Support Loop Hanging Ceiling Mounting Wall Mounting Instaltion Model

UFO High Bay Light 100W 150W 200W Support Loop Hanging Ceiling Mounting Wall Mounting Instaltion Model

UFO High Bay Light 100W 150W 200W Support Loop Hanging Ceiling Mounting Wall Mounting Instaltion Model

UFO High Bay Light 100W 150W 200W Support Loop Hanging Ceiling Mounting Wall Mounting Instaltion Model

UFO High Bay Light 100W 150W 200W Support Loop Hanging Ceiling Mounting Wall Mounting Instaltion Model

UFO High Bay Light 100W 150W 200W Support Loop Hanging Ceiling Mounting Wall Mounting Instaltion Model
1.What’s Power factor ?
RE: The active power divided by the apparent power (i.e product of the rms input voltage and rms input current of a driver.)
2.What’s Smart Lighting ?
RE: Automated lighting control using sensors and /or scheduling switches.
3.What’s Watt ?
RE: The unit of electrical power as used by an electrical device during its operation. Many lamps come with rating in watts to indicate their power consumption.
4.How to explain “ZigBee“ ?
RE: A low -power ,low date rate, local area wireless network; ideal for lighting control.
5.How to explain “lumen output “ ?
RE: The total lumens emitted of a light source, system, or solution.
6.How to explain “luminous Efficacy“ ?
RE: A measure of how well a light source products visible light expressed as lumens /Watt.

UFO High Bay Light 100W 150W 200W Support Loop Hanging Ceiling Mounting Wall Mounting Instaltion Model

Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
