MachineU > China Products > Lights & Lighting > Commercial & Industrial Lighting > Tri-proof Light

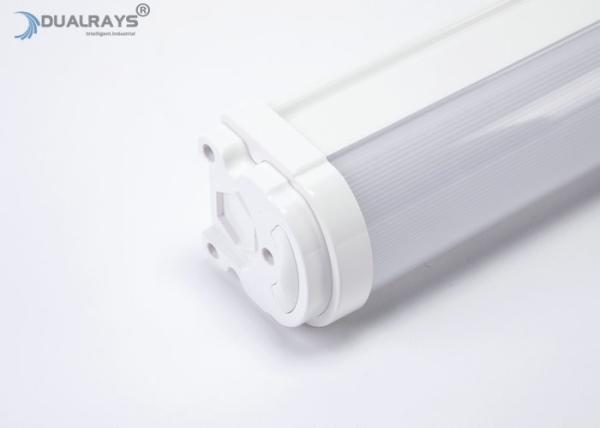

Dualrays D2 Series 40W LED Tri Proof Light 160LPW With IP65 Protection PIR Sensor
Dualrays D2 Series 40W LED Tri Proof Light 160LPW With IP65 Protection PIR Sensor
Dualrays D2 Series 40W LED Tri Proof Light 160LPW With IP65 Protection PIR Sensor
Dualrays D2 Series 40W LED Tri Proof Light 160LPW With IP65 Protection PIR Sensor
Specifications
Brand Name :
DUALRAYS
Model Number :
DR-TPL040-BG42
Certification :
CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Place of Origin :
Shenzhen,China
MOQ :
1PC
Price :
Negotiated
Payment Terms :
L/C, T/T, Western Union, Paypal
Delivery Time :
50000PCS/Month
Packaging Details :
Netural Package,color box package,8PCS/CTN,L1570*W360xH200mm
Supply Ability :
100000PCS/Month
Power Effciency :
90%
Power Factor :
0.96
CRI :
>80Ra
Warranty :
5 Years
LED's Brand :
EPISTAR
Material :
Aluminium Alloy
IP Rating :
IP66
Life Span :
50,000 Hours
Description

Dualrays D2 Series 40W LED Tri Proof Light 160LPW With IP65 Protection PIR Sensor

Dualrays D2 Series 40W LED Tri Proof Light 160LPW With IP65 Protection PIR Sensor

Dualrays D2 Series 40W LED Tri Proof Light--Detailed Product Description

Model No.: D2 Series Material Aluminium Alloy
Power: 40W Protection: IP66,IK10
Dimming Function(Optional): 1-10VDC /DALI / Zigbee LED Driver: DUALRAYS Own-developed flicker-free driver,BOKE DIP switch power adjustable driver
Warranty: 5 Years Size: 4ft
Dualrays D2 Series 40W LED Tri Proof Light--Features
> Highly brightness EPISTAR/SAN‘AN SMD2835 LEDs,energy efficient - up to 160 lm/w;
> 1-10V dimming flicker-free driver;
> Single or Double wiring;
> IP66 and IK10 for all industrial areas of application;
> Eco full plastic light design,save your cost and freight;
> No UV or IR and completely mercury free;
> L80/B10 @ 50.000h;
> Sensor control avaliable;
> No toxic heavy metals, VOC, or mercury were used in the design;
> 5 years warranty;

Dualrays D2 Series 40W LED Tri Proof Light--Options:
> Driver: DUALRAYS Own-developed flicker-free driver,BOKE DIP switch power adjustable driver.
> Controls and Dimming: Zigbee wireless control / 1-10V Dimming / Daylight sensor,microwave sensor,CCTadjustable,emergency.
> Plug : European / Australia plug with 0.75mm2/1.5mm2/2.5mm2 3-pins or 5-pins (dimming) cable optional.
> Suspended/Surface mounted/Adjustable installation for option.
> Single or double wiring and connection.
> Customized supported for special projects.
> Sensor: Daylight Sensor/ Microwave Sensor.
Dualrays D2 Series 40W LED Tri Proof Light 160LPW With IP65 Protection PIR Sensor
* Replacement for fluorescent NCF
* Workshops and warehouse
* Garage and car parks
* Sport facility
* Corridor/Gallery/Corridor
* Outdoor & Indoor Locations

Dualrays D2 Series 40W LED Tri Proof Light 160LPW With IP65 Protection PIR Sensor
Dualrays D2 Series 40W LED Tri Proof Light 160LPW With IP65 Protection PIR Sensor

Dualrays D2 Series 40W LED Tri Proof Light 160LPW With IP65 Protection PIR Sensor

Character/Length
2ft
4ft
5ft
Dualrays D2 Series 40W LED Tri Proof Light 160LPW With IP65 Protection PIR Sensor
A
600mm
1200mm
1500mm
B
74mm
74mm
74mm
C
74m
74mm
74mm


Dualrays D2 Series 40W LED Tri Proof Light 160LPW With IP65 Protection PIR Sensor

Dualrays D2 Series 40W LED Tri Proof Light 160LPW With IP65 Protection PIR Sensor

Dualrays D2 Series 40W LED Tri Proof Light 160LPW With IP65 Protection PIR Sensor
Dualrays D2 Series 40W LED Tri Proof Light 160LPW With IP65 Protection PIR Sensor
Dualrays D2 Series 40W LED Tri Proof Light 160LPW With IP65 Protection PIR Sensor

Dualrays D2 Series 40W LED Tri Proof Light 160LPW With IP65 Protection PIR Sensor
(I) Emergency Function

Model No.
Emergency Time (Hours)
Emergency Power (W)
Battery Parameters
DR-TPL020-BG21
3/2/1 hours for option
10W
 7.4V/4400/3000/1500mAh Lithium Battery
DR-TPL040-BG41
3/2/1 hours for option
10W
11.1V/6000/4000/2000mAh Lithium Battery
DR-TPL050-BG51
3/2/1 hours for option
10W
 11.1V/8800/6000/3000mAh Lithium Battery


Dualrays D2 Series 40W LED Tri Proof Light 160LPW With IP65 Protection PIR Sensor
Dualrays D2 Series 40W LED Tri Proof Light 160LPW With IP65 Protection PIR Sensor

Dualrays D2 Series 40W LED Tri Proof Light 160LPW With IP65 Protection PIR Sensor
DALI Device
Dualrays D2 Series 40W LED Tri Proof Light 160LPW With IP65 Protection PIR Sensor

DALI Intelligent Control Diagram
Dualrays D2 Series 40W LED Tri Proof Light 160LPW With IP65 Protection PIR Sensor Dualrays D2 Series 40W LED Tri Proof Light 160LPW With IP65 Protection PIR Sensor

DALI Intelligent Control Operator Interface
Dualrays D2 Series 40W LED Tri Proof Light 160LPW With IP65 Protection PIR Sensor
Dualrays D2 Series 40W LED Tri Proof Light 160LPW With IP65 Protection PIR Sensor
Dualrays D2 Series 40W LED Tri Proof Light 160LPW With IP65 Protection PIR Sensor

Dualrays D2 Series 40W LED Tri Proof Light 160LPW With IP65 Protection PIR Sensor
Dualrays D2 Series 40W LED Tri Proof Light 160LPW With IP65 Protection PIR Sensor

Dualrays D2 Series 40W LED Tri Proof Light 160LPW With IP65 Protection PIR Sensor
Dualrays D2 Series 40W LED Tri Proof Light 160LPW With IP65 Protection PIR Sensor
Packaging Information
Dualrays D2 Series 40W LED Tri Proof Light 160LPW With IP65 Protection PIR Sensor

Dualrays D2 Series 40W LED Tri Proof Light 160LPW With IP65 Protection PIR Sensor

Dualrays D2 Series 40W LED Tri Proof Light 160LPW With IP65 Protection PIR Sensor

Dualrays D2 Series 40W LED Tri Proof Light 160LPW With IP65 Protection PIR Sensor

Dualrays D2 Series 40W LED Tri Proof Light 160LPW With IP65 Protection PIR Sensor

Dualrays D2 Series 40W LED Tri Proof Light 160LPW With IP65 Protection PIR Sensor

Dualrays D2 Series 40W LED Tri Proof Light 160LPW With IP65 Protection PIR Sensor

Dualrays D2 Series 40W LED Tri Proof Light 160LPW With IP65 Protection PIR Sensor

Dualrays D2 Series 40W LED Tri Proof Light 160LPW With IP65 Protection PIR Sensor

Dualrays D2 Series 40W LED Tri Proof Light 160LPW With IP65 Protection PIR Sensor

Dualrays D2 Series 40W LED Tri Proof Light 160LPW With IP65 Protection PIR Sensor

Dualrays D2 Series 40W LED Tri Proof Light 160LPW With IP65 Protection PIR Sensor

Dualrays D2 Series 40W LED Tri Proof Light 160LPW With IP65 Protection PIR Sensor

Dualrays D2 Series 40W LED Tri Proof Light 160LPW With IP65 Protection PIR Sensor
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!

Dualrays D2 Series 40W LED Tri Proof Light 160LPW With IP65 Protection PIR Sensor

Marketing Department
Tel: 0086-755-2306 6948
Fax: 0086-755-6164 1072
Vera FU
Sales manager
Email: sales06@dualrays.com
Mobile/ Whatsapp:0086-13018674100
Wechat: fuwei950615
Zip Code: 518103
Add: 3rd Floor,Building A3 | Tianrui Industrial Park| #35,Fuyuan 1st Road,Fuyong Town,Bao'an Dist | Shenzhen 518103
