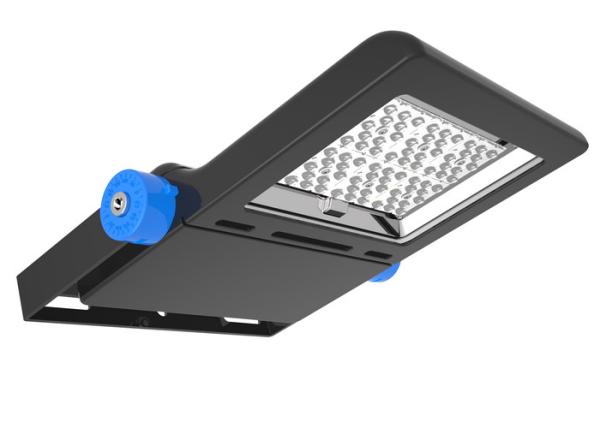

300W LED FLOOD Light for Street Crossing 1-10V Dimming and DALI for Option
300W LED FLOOD Light for Street Crossing 1-10V Dimming and DALI for Option
300W LED FLOOD Light for Street Crossing 1-10V Dimming and DALI for Option
300W LED FLOOD Light for Street Crossing 1-10V Dimming and DALI for Option
300W LED FLOOD Light for Street Crossing 1-10V Dimming and DALI for Option
300W LED FLOOD Light for Street Crossing 1-10V Dimming and DALI for Option
300W LED FLOOD Light for Street Crossing 1-10V Dimming and DALI for Option
300W LED FLOOD Light for Street Crossing 1-10V Dimming and DALI for Option
Specifications
Brand Name :
DUALRAYS
Model Number :
DR-FL300-CG2
Certification :
CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Place of Origin :
Shenzhen,China
MOQ :
1PCS
Price :
Please inquiry for the latest price
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000PCS/Month
Delivery Time :
5-15 Bussiness Day
Packaging Details :
Netural Package/OEM and ODM Package Available
Power :
300W
LED light source :
LUMILEDS
Surge Protection :
6KV Built in
PF :
>0.95
L80 :
>65000hrs
Beam angle :
60° 90° 120° for option
Description
300W LED FLOOD Light for Street Crossing 1-10V Dimming and DALI for Option

300W LED FLOOD Light for Street Crossing 1-10V Dimming and DALI for Option

> 300W LED Flood Light Flat 13500LM for Outdoor Security and Decoration

> Built-in Plug and Play Motion Sensor with Compact Structure;

> L70/B20(25℃)65.000h;

Model No. DR-FL050-CGX DR-FL100-CGX DR-FL150-CGX DR-FL200-CGX DR-FL300-CGX
System Watts/W 50W 100W 150W 200W 300W
System Efficiency/LPW 6.800±5% 13.500±5% 20.000±5% 27.000±5% 33.200±5%
Efficiency/ lm/w 135LM/W
Rated Input Voltage/V AC100~277V 50/60Hz
LEDs Light Source SMD3030
SDCM <5
CCT/K 3000K/4000K/5000K/5700K/6500K
CRI/Ra >80Ra (>70Ra for Option)
Power Factor >0.95
THD <10%
Beam Angle(Optional) 30° / 60° / 90° / 120°
UGR <25
Surge Protection 6~10KV SPD built in Driver,Exterior SPD 10KV() or 20KV Meanwell Optional
LED Driver Sosen, Meanwell ELG/ HLG
IP Rating IP65
Dimming(Optional) 0/1-10V/DALI/Zigbee
Emergency(Optional) Available
Protection Class ClassⅠ
Material Aluminum+PC
Lifespan/hrs >62.000 Hrs (Ta=30℃@L70)
Operation Temp/℃ -40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃ -40°C to + 65°C(-40°F to 149°F)
Installation(Optional) Ceiling Mounting, Wall Mounting, Ground Mounting
Certificate CE(EMC+LVD), RoHS, TUV/GS, D-Mark, SAA, RCM Available;
300W LED FLOOD Light for Street Crossing 1-10V Dimming and DALI for Option
Character/Power
100W
150W
200W
240W
300W
300W LED FLOOD Light for Street Crossing 1-10V Dimming and DALI for Option
A / mm
389
389
437
493
582
B / mm
297
297
346
379
444
C / mm
57
57
57
57
60

300W LED FLOOD Light for Street Crossing 1-10V Dimming and DALI for Option
300W LED FLOOD Light for Street Crossing 1-10V Dimming and DALI for Option
300W LED FLOOD Light for Street Crossing 1-10V Dimming and DALI for Option
300W LED FLOOD Light for Street Crossing 1-10V Dimming and DALI for Option300W LED FLOOD Light for Street Crossing 1-10V Dimming and DALI for Option
300W LED FLOOD Light for Street Crossing 1-10V Dimming and DALI for Option

300W LED FLOOD Light for Street Crossing 1-10V Dimming and DALI for Option

300W LED FLOOD Light for Street Crossing 1-10V Dimming and DALI for Option

300W LED FLOOD Light for Street Crossing 1-10V Dimming and DALI for Option

300W LED FLOOD Light for Street Crossing 1-10V Dimming and DALI for Option

300W LED FLOOD Light for Street Crossing 1-10V Dimming and DALI for Option
Model No.
Net Weight/Kg
Outer Carton Size/mm
Gross Weight/Kg
QTY”/CTN
DR-FL050-CGXX
3.6
355*350*165
4.5
1PCS/CTN
DR-FL100-CGXX
3.8
355*350*165
4.7
1PCS/CTN
DR-FL150-CGXX
4.5
415*410*175
5.8
1PCS/CTN
DR-FL200-CGXX
5.7
475*470*195
7.3
1PCS/CTN
DR-FL300-CGXX
9.3
475*470*195
11.5
1PCS/CTN

300W LED FLOOD Light for Street Crossing 1-10V Dimming and DALI for Option
300W LED FLOOD Light for Street Crossing 1-10V Dimming and DALI for Option

300W LED FLOOD Light for Street Crossing 1-10V Dimming and DALI for Option

300W LED FLOOD Light for Street Crossing 1-10V Dimming and DALI for Option

300W LED FLOOD Light for Street Crossing 1-10V Dimming and DALI for Option

300W LED FLOOD Light for Street Crossing 1-10V Dimming and DALI for Option

300W LED FLOOD Light for Street Crossing 1-10V Dimming and DALI for Option

300W LED FLOOD Light for Street Crossing 1-10V Dimming and DALI for Option

300W LED FLOOD Light for Street Crossing 1-10V Dimming and DALI for Option

300W LED FLOOD Light for Street Crossing 1-10V Dimming and DALI for Option

300W LED FLOOD Light for Street Crossing 1-10V Dimming and DALI for Option

300W LED FLOOD Light for Street Crossing 1-10V Dimming and DALI for Option

In addition,we can provide our customers value added service with Dialux software for lighting design projects free of charge.
