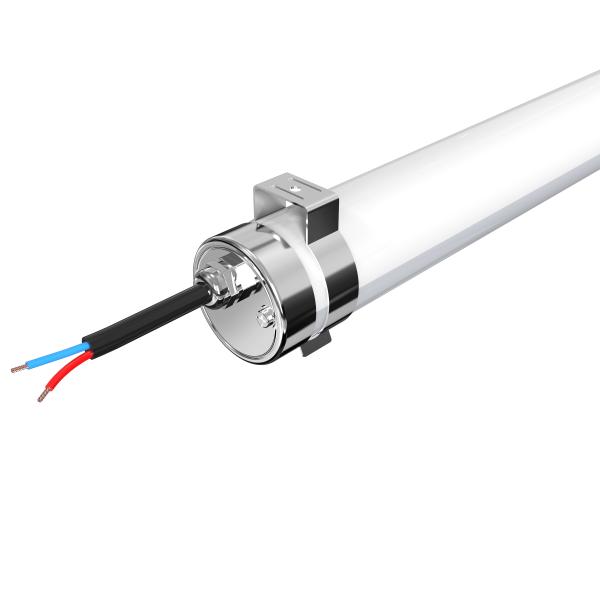

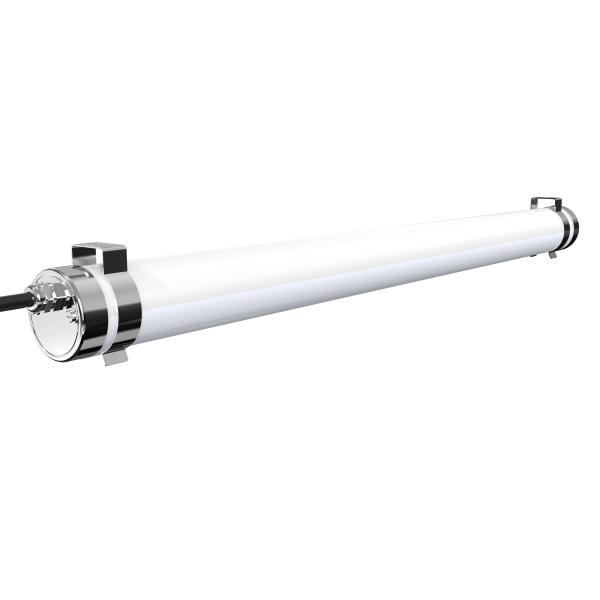

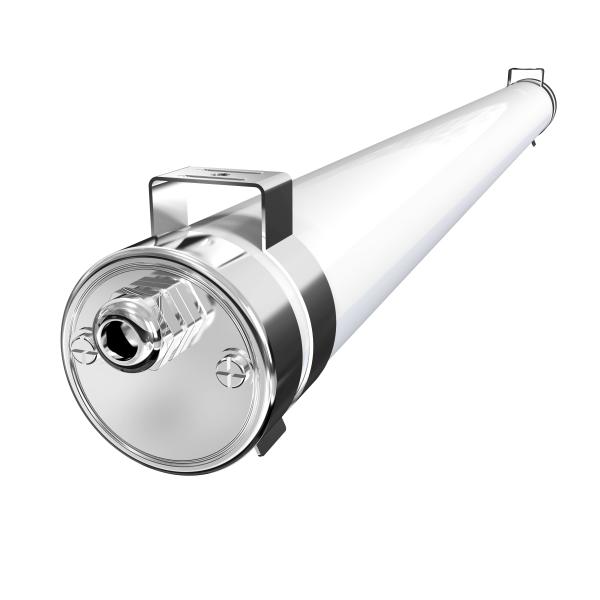

Industrial 30w Tri Proof LED Batten Anti UV PC Transparent Cover For Farm

Specifications

Brand Name :

Dualrays

Model Number :

DR-TP030- FG2XP

Certification :

CE ROHS SAA

Place of Origin :

China

MOQ :

100pcs

Price :

USD18.54 to USD41.62

Payment Terms :

T/T, Western Union

Supply Ability :

50000 per month

Delivery Time :

5-8work days

Material :

PC PMMA are optional

Brand :

Dualrays

Input voltage(v) :

AC100-277V,50-60HZ

Lamp luminous efficiency(lm/w) :

120 130 150 160

Cri (ra>) :

>80Ra

Warranty(years) :

5 YEARS

Application :

Cattle farm;Pig farm;Replacement for fluorescent NCF,Industrial and Agricultural applications

Beam angle :

120°

Description

20w 30w 40w 50w 80Ra LED Tri Proof Light For Farm and industrial lighting

Industrial 30w Tri Proof LED Batten Anti UV PC Transparent Cover For Farm

> BASELine Version:

> PROLine Version: 130LPW(Transparent Cover)

> PRIMELine Version: 160LPW(Transparent Cover)

>High Brightness SAN'AN SMD2835 LEDs,BOKE High PF Flicker-free Driver DIP Switch Power Adjustment Optional;

> Against Water Pressure of 100bar(1450psi) and Temperature of 80°C;

> IP69K PMMA IK06 Anti-ammonia/UV /PC IK10 Anti-UV Protection;

> 120°beam angle;

> Single or Double Wiring Optional,Linkabkle Thorugh Double End Wiring;

> Multiple Installations: Suspension, Wall Mounting;

> Various intelligent control: 1-10V, DALI, Motion sensor,Daylight sensor,

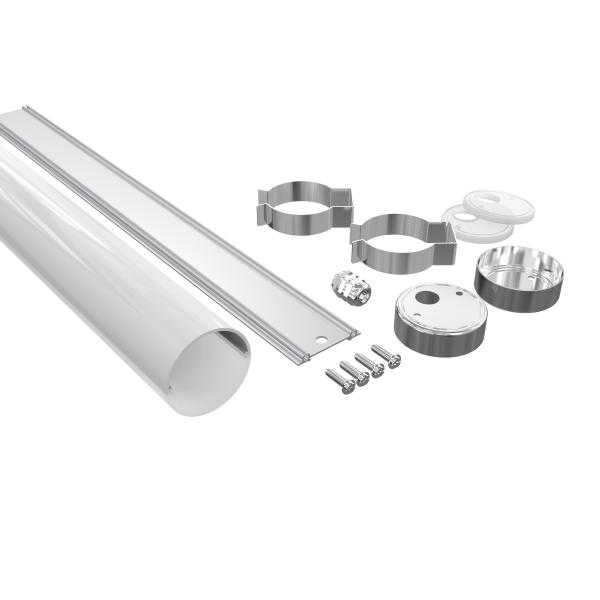

> 304/316 Stainless Steel End Cap & Bracket,corrosion-proof;

> No UV or IR and completely mercury free;

> L70/B20 @ 54.000h;

> Customized supported for special projects;

> SAN'AN SMD2835 LEDs: LM80/TM-21 Available;

> LM79/TM21/ISTMT/LCP and IES/LDT files available;

(D6 LED Triproof Light)

> Europe Market: CE(EMC+LVD),RoHS,TUV/GS,CB Pending,D-Mark;

> North American Market: ETL/CETL,DLC Premium Pending;

> Oceania Market: SAA,C-Tick,RCM

Model No.	DR-TP020-FG2XP	DR-TPL030-FG4XP	DR-TPL040-FG5XP	DR-TPL050-FG5XP
System Watts/W	20W	30W	40W	50W
System Efficiency/LPW	130LPW / 160LPW Optioanl
Lumen Output/lm	2.600/3.200±5%	3.900/4.800±5%	5.200/6.400±5%	6.500/8.000±5%
Rated Input Voltage/V	AC200~240V 50/60Hz (AC100~277V, 50/60Hz Optional)
LEDs Light Source	SMD2835
SDCM	<6
CCT/K	5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra	>80Ra (>70Ra for Option)
Power Factor	>0.91
THD	<10%
Beam Angle(Optional)	120°
UGR	<22
LED Driver	BOKE Fixed Power/ DIP Switch Power Adjustable Optional
IP Rating	IP65
IK Level	IK08
Dimming(Optional)	1-10V, DALI
Protection	IP69K
Sensor(Optional)	Daylight sensor/Microwave Sensor
Protection Class	ClassⅠ
Finishing Color(Optional)	RAL9016 Matt White
Material	PC+PC (PMMA / Tempered Glass Optional)
Lifespan/hrs	54.000 Hrs (Ta=30℃@L70)
Operation Temp/℃	-40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃	- 40°C to + 65°C(-40°F to 149°F)
Installation(Optional)	Suspension / Ceiling Mounting Optional
Certificate	CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

> Replacement for fluorescent NCF;

> Cattle farm;

> Pig farm;

> Industrial and Agricultural applications;

Character/Length	2ft	4ft	5ft
A	525.9mm	1125.9mm	1425.9mm
B	590m	1190mm	1490mm
C	78.2mm	78.2mm	78.2mm

Industrial 30w Tri Proof LED Batten Anti UV PC Transparent Cover For Farm

In addition,we can provide our customers value added service with Dialux software for lighting design projects free of charge.

Industrial 30w Tri Proof LED Batten Anti UV PC Transparent Cover For Farm

　Dualrays adheres to independent innovation, Dualraysers try to build a world well-known LED industrial Lighting Brand.　

Industrial 30w Tri Proof LED Batten Anti UV PC Transparent Cover For Farm
