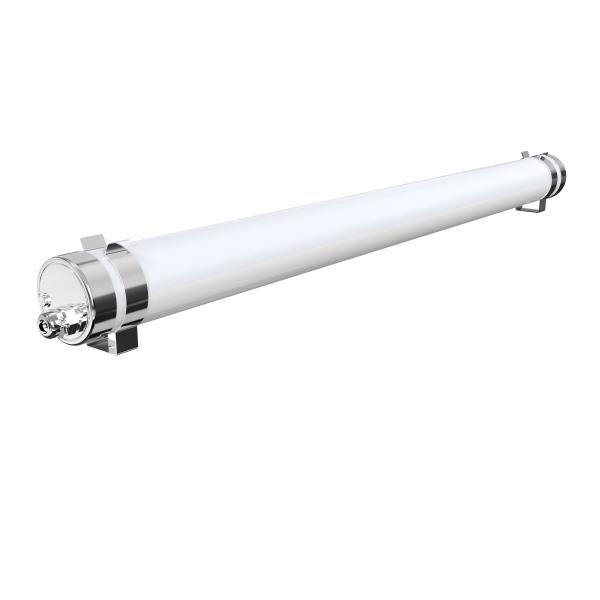

Dualrays SMD2835 LED Triproof Light High Luminous 20W 30W 40W 50W
Dualrays SMD2835 LED Triproof Light High Luminous 20W 30W 40W 50W
Dualrays SMD2835 LED Triproof Light High Luminous 20W 30W 40W 50W
Dualrays SMD2835 LED Triproof Light High Luminous 20W 30W 40W 50W
Dualrays SMD2835 LED Triproof Light High Luminous 20W 30W 40W 50W
Dualrays SMD2835 LED Triproof Light High Luminous 20W 30W 40W 50W
Dualrays SMD2835 LED Triproof Light High Luminous 20W 30W 40W 50W
Dualrays SMD2835 LED Triproof Light High Luminous 20W 30W 40W 50W
Specifications
Brand Name :
Dualrays
Model Number :
DR-TP020- FG2XP
Certification :
CE,RoHS,,D-Mark
Place of Origin :
China
MOQ :
2ps
Price :
USD19
Payment Terms :
T/T
Supply Ability :
100000
Delivery Time :
7 days
Packaging Details :
Carton
Material :
PC+Alloy Aluminum
Power :
20W
LED quantites :
221pcs
CCT :
WW: 3000
Description

Dualrays Lighting LED Triproof light high luminous efficacy with competitve price

High Brightness SAN‘AN SMD2835 LEDs, BOKE High PF Flicker-free Driver,DIP Switch Power Adjustment
Optional;
> Against Water Pressure of 100bar(1450psi) and Temperature of 80°C;
> IP69K PMMA IK06 Anti-ammonia/UV /PC IK10 Anti-UV Protection;
> 120°beam angle;
> Single or Double Wiring Optional,Linkabkle Thorugh Double End Wiring;
> Multiple Installations: Suspension, Wall Mounting;
> Various intelligent control: 1-10V, DALI, Motion sensor,Daylight sensor;
> 304/316 Stainless Steel End Cap & Bracket, corrosion-proof;
> No UV or IR and completely mercury free;
> L70/B20 @ 54.000h;
Dualrays SMD2835 LED Triproof Light High Luminous 20W 30W 40W 50W
Model No.
DR-TP020-FG2XP
DR-TPL030-FG4XP
DR-TPL040-FG5XP
DR-TPL050-FG5XP
System Watts/W
20W
30W
40W
50W
System Efficiency/LPW
130LPW / 160LPW Optioanl
Lumen Output/lm
2.600/3.200±5%
3.900/4.800±5%
5.200/6.400±5%
6.500/8.000±5%
Rated Input Voltage/V
AC200~240V 50/60Hz (AC100~277V, 50/60Hz Optional)
LEDs Light Source
SMD2835
SDCM
<6
CCT/K
5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra
>80Ra (>70Ra for Option)
Power Factor
>0.91
THD
<10%
Beam Angle(Optional)
120°
UGR
<22
LED Driver
BOKE Fixed Power/ DIP Switch Power Adjustable Optional
IP Rating
IP65
IK Level
IK08
Dimming(Optional)
1-10V, DALI
Protection
IP69K
Sensor(Optional)
Daylight sensor/Microwave Sensor
Protection Class
ClassⅠ
Finishing Color(Optional)
RAL9016 Matt White
Material
PC+PC (PMMA / Tempered Glass Optional)
Lifespan/hrs
54.000 Hrs (Ta=30℃@L70)
Operation Temp/℃
-40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃
- 40°C to + 65°C(-40°F to 149°F)
Installation(Optional)
Suspension / Ceiling Mounting Optional
Certificate
CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available
