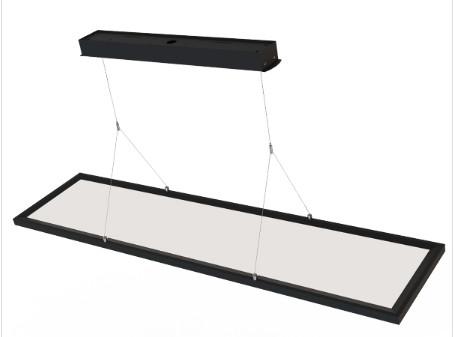

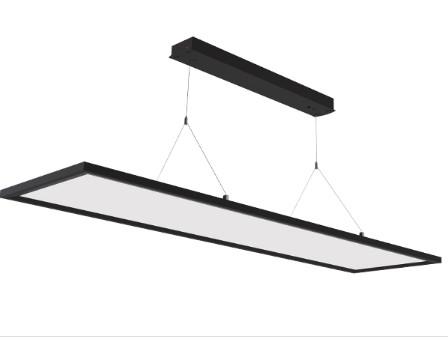

OP5 Led Pendent Light 50W 120LPW Suspension Wirerope for Office / Workstations

Specifications

Brand Name :

DUALRAYS

Model Number :

DR-OP0312-50HC32X

Certification :

CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

Place of Origin :

Shenzhen,China

MOQ :

50pcs

Price :

negotiate

Payment Terms :

L/C, T/T, Western Union, paypal

Supply Ability :

50000PCS/Month

Delivery Time :

5-15 Business Day

Packaging Details :

Netural Package/OEM and ODM Package Available

Model No. :

DR-OP0312-50HC32X

IP Rating :

IP20

IK Level :

IK04

LEDs Light Source :

SMD2835

CCT/K :

5000K

CRI/Ra :

>80Ra (>70Ra for Option)

Description

OP5 Office Led Pandent Light 50W 120LPW Suspension Wirerope Can Be Adjusted To Different Length To Suit

Features:

> High Brightness SAN‘AN SMD2835 LEDs, BOKE/LIFUD High PF Flicker-free Driver;

> Low Glare with UGR<16 ;

> IP20 / IK04 Protection;

> 120° upward, 100° downward;

> Indirect Lighting to the dark ceiling and cave atmosphere;

> 1-10V,DALI Dimming Optional;

> 1.5m suspension wirerope can be adjusted to different length to suit for the workstations;
> Special designed driver box to avoid visible cables and fastening screws,more elegent;

> No UV or IR and completely mercury free;

> L70/B20 @ 54.000h;

> Customized supported for special projects;

Application:

> Office;

> Workstations;

> Meeting Room;

> Restaurant;

> Hospitaland Studio;

> Other Indoor Locations

Specification:

Model No.	DR-OP0312-50HC32X
System Watts/W	50W
System Efficiency/LPW	120LPW
Lumen Output/lm	4.080 (Down)/1.920(Up)±5%
Rated Input Voltage/V	AC200~240V 50/60Hz (AC100~277V, 50/60Hz Optional)
LEDs Light Source	SMD2835
SDCM	<5
CCT/K	5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra	>80Ra (>70Ra for Option)
Power Factor	>0.92
THD	<10%
Beam Angle	120°(Up) / 110°(Down)
UGR	<16
LED Driver	BOKE Fixed Power/ DIP Switch Power Adjustable Optional
IP Rating	IP20
Dimming(Optional)	1-10V, DALI,Zigbee
Emergency(Optional)	5W@3 Hours or Customized
Sensor(Optional)	Daylight sensor/Microwave Sensor
Protection Class	ClassⅠ
Finishing Color(Optional)	RAL9016 Matt White / RAL9005 Black
Material	AL+PMMA
Lifespan/hrs	54.000 Hrs (Ta=30℃@L70)
Operation Temp/℃	-40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃	- 40°C to + 65°C(-40°F to 149°F)
Installation(Optional)	Suspension / Ceiling Mounting Optional
Certificate	CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

Options:

> Plug: European / Australia plug with 0.75mm2/1.5mm2/2.5mm2 3-pins or 5-pins (dimming) cable;

> Installation : Suspension, Wall Mounting;

> Wiring: Single or double wiring;

Dimension:

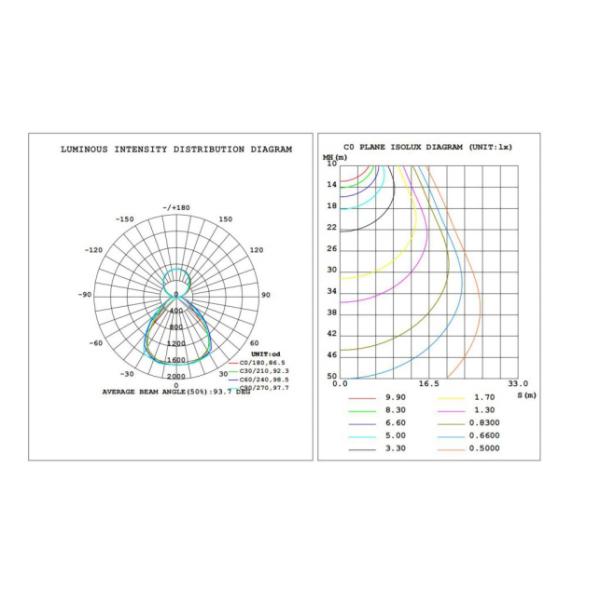

Optical&photometric:
