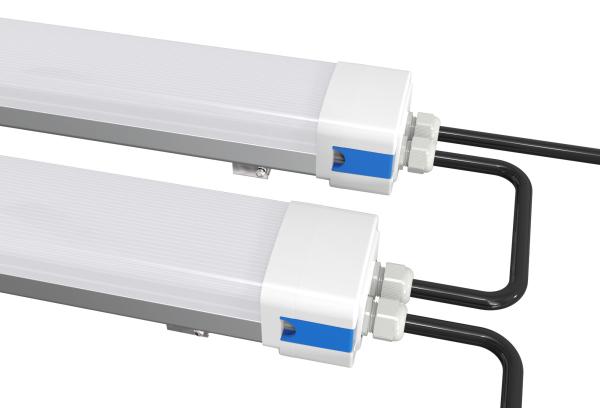

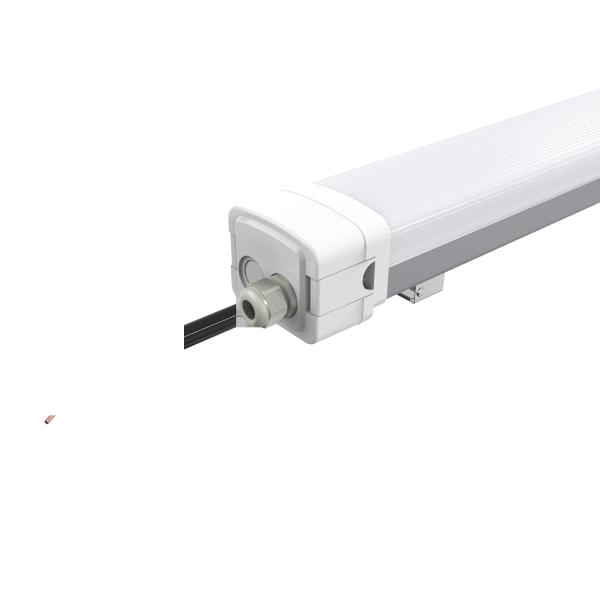

Dualrays LED Triproof Light Buckle End Cap Easy Installation High Luminous Efficacy
Dualrays LED Triproof Light Buckle End Cap Easy Installation High Luminous Efficacy
Dualrays LED Triproof Light Buckle End Cap Easy Installation High Luminous Efficacy
Dualrays LED Triproof Light Buckle End Cap Easy Installation High Luminous Efficacy
Dualrays LED Triproof Light Buckle End Cap Easy Installation High Luminous Efficacy
Dualrays LED Triproof Light Buckle End Cap Easy Installation High Luminous Efficacy
Dualrays LED Triproof Light Buckle End Cap Easy Installation High Luminous Efficacy
Dualrays LED Triproof Light Buckle End Cap Easy Installation High Luminous Efficacy
Specifications
Brand Name :
Dualrays
Model Number :
DR-TP020- EG2XP
Certification :
CE,RoHS,D-Mark
Place of Origin :
China
MOQ :
2pcs
Price :
USD17
Payment Terms :
T/T
Supply Ability :
100000
Delivery Time :
7 days
Packaging Details :
Carton
Material :
Aluminum Alloy + PC
Power :
20W
LED quantities :
156pcs
CRI/Ra :
>80
Description

Dualrays LED Triproof light buck;e end-cap for easy installation

Features:

> Single Phase (L/N/E) or Three Phase (L1/L2/L3/N/FG)Optional;
> Tri-Color optional (A: 3000-4000-5000K; B: 3000-4500-6000K; C: 4000-5000-6000K);
> High Brightness SAN‘AN SMD2835 LEDs, BOKE High PF Flicker-free Driver DIP Switch Power Adjustment Optional;
> Buckle Design End-cap,Quick & Convenient to Open and Relock for Wiring, Greatly Improve Efficiency
And Save Labor Cost;
> 1/2 Al Housing + 1/2 PC Cover,Excellent Thermal Conductivity;
> IP65 / IK10 Protection;
> 120°beam angle;
> Single or Double Wiring Optional,Linkabkle Through Single or Double End Wiring;
> Multiple Installations: Suspension, Wall Mounting;
> Various intelligent control: 1-10V, DALI, Motion sensor,Daylight sensor,Zigbee and Emergency;
> No UV or IR and completely mercury free;

Dualrays LED Triproof Light Buckle End Cap Easy Installation High Luminous Efficacy
Model No. DR-TP020-EG2XPX DR-TP040-EG4XPX DR-TP050-EG4XPX DR-TP060-EG5XPX DR-TP080-EG5XPX
System Watts/W 20W 40W 50W 60W
80W
System Efficiency/LPW 130LPW / 160LPW Optioanl
Lumen Output/lm 2.600/3.200±5% 5.200/6.400±5% 6.500/8.000±5% 7.800/9.600±5% 10.400/12.800±5%
Rated Input Voltage/V AC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional)
LEDs Light Source SMD2835
SDCM <6
CCT/K 5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra >80Ra (>70Ra for Option)
Power Factor >0.91
THD <10%
Beam Angle(Optional) 120°
UGR <22
LED Driver BOKE Fixed Power/ DIP Switch Power Adjustable Optional
IP Rating IP65
IK Level IK08
Dimming(Optional) 1-10V, DALI,Zigbee
Sensor(Optional) Daylight sensor/Microwave Sensor
Emergency(Optional) 5W@3 Hours or Customized
Protection Class ClassⅠ
Finishing Color(Optional) White RAL9016 Optional
Material AL+PC
Lifespan/hrs 62.000 Hrs (Ta=30℃@L70)
Operation Temp/℃ 40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃ - 40°C to + 65°C(-40°F to 149°F)
Installation(Optional) Suspension / Ceiling Mounting Optional
Certificate CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available
