Specifications
Brand Name :
DUALRAYS
Model Number :
D5
Certification :
CE
Place of Origin :
China,shenzhen
MOQ :
1
Price :
1
Payment Terms :
T/T
Supply Ability :
99999
Delivery Time :
7
Packaging Details :
Cartons
Item type :
LED Tri Proof Light
Warranty(years) :
5
Color temperature(cct) :
2700K-6500K
Beam angle :
120 Degree
Description

DUALRAYS Tri Proof Light For Warehouse Gymnasiums Education Healthcare Parking Lot Auto Dealership

General Characteristics:

  1. Microwave sensor, DALI dimming, emergency kit for options
  2. SMD2835 LED Chips, High CRI of Ra>80,130lm/w or 160lm/w
  3. TUV,SAA, CE driver,PF>0.95,THD<12,flicker-free
  4. No mercury, No UV, No IR, No glare, No flick, 5 years warranty
  5. Fast and easy installation to replace existing lights
  6. Lower maintenance cost thanks to over 3 times longer lifetime

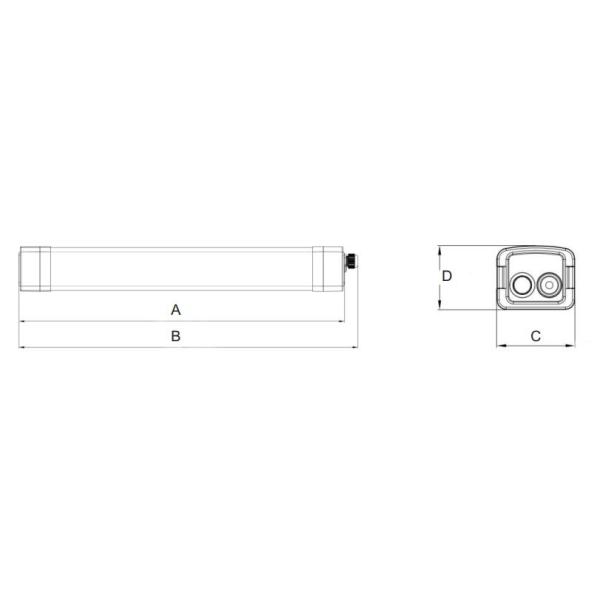

Character/Length
2ft
4ft
5ft
2700K-6500K Tri Proof Light For Warehouse Gymnasiums Education Healthcare Parking Lot
A
605mm
1205mm
1505mm
B
630mm
1230mm
1530mm
C
84mm
84mm
84mm
D
69mm
69mm
69mm

Features:

Input Voltage: AC200~240V 50/60Hz(AC100~277V 50/60Hz Optional)
Material: PC
CCT: WW: 3000±200K NW:4000±200K DW: 5000±200K CW: 5700±200K CW: 6500±200K
CRI: >80Ra (>70Ra Optional)
Beam Angle: 120°
Features: IP65 / IK08 Protection
Lifespan: L70/B20 @ 50.000h
Driver: DUALRAYS High PF Flicker-free Driver
Operation Temp: -40°C to + 50°C(-40°F to 122°F)
Installation:Suspension/Ceiling Mounting, Single/ Double Wiring
Optional: 1-10V Dimming/Sensor/Emergency/Plug
Report: LM80/TM-21/LM79/TM21/ISTMT/LCP/IES/LDT/CE(EMC+LVD),RoHS,ENEC ,SAA,RCM

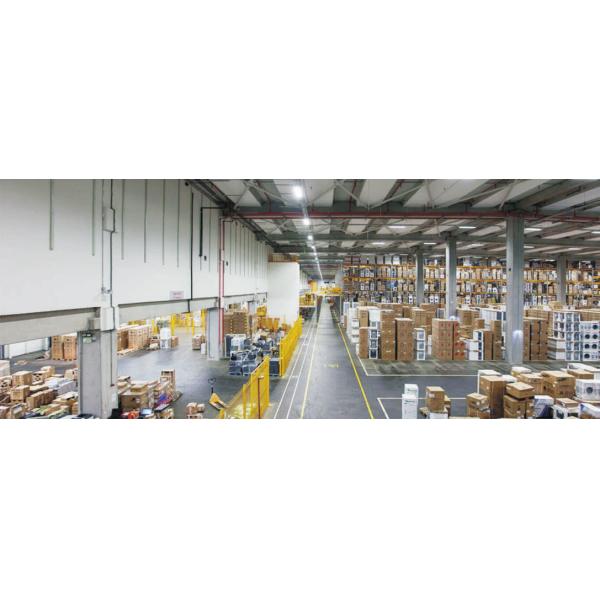

Application:

> Replacement for fluorescent NCF;
> Workshops and warehouse;
> Garage and car parks;
> Sport facility;
> Corridor/Gallery/Corridor;
> Outdoor & Indoor Locations;
2700K-6500K Tri Proof Light For Warehouse Gymnasiums Education Healthcare Parking Lot

Specification:

DUALRAYS D5 LED Triproof Light Spe.pdf

Model No. DR-TP020-EG2XPX DR-TP040-EG4XPX DR-TP050-EG4XPX DR-TP060-EG5XPX DR-TP080-EG5XPX
System Watts/W 20W 40W 50W 60W
80W
System Efficiency/LPW 130LPW / 160LPW Optioanl
Lumen Output/lm 2.600/3.200±5% 5.200/6.400±5% 6.500/8.000±5% 7.800/9.600±5% 10.400/12.800±5%
Rated Input Voltage/V AC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional)
LEDs Light Source SMD2835
SDCM <6
CCT/K 5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra >80Ra (>70Ra for Option)
Power Factor >0.91
THD <10%
Beam Angle(Optional) 120°
UGR <22
LED Driver BOKE Fixed Power/ DIP Switch Power Adjustable Optional
IP Rating IP65
IK Level IK08
Dimming(Optional) 1-10V, DALI,Zigbee
Sensor(Optional) Daylight sensor/Microwave Sensor
Emergency(Optional) 5W@3 Hours or Customized
Protection Class ClassⅠ
Finishing Color(Optional) White RAL9016 Optional
Material AL+PC
Lifespan/hrs 62.000 Hrs (Ta=30℃@L70)
Operation Temp/℃ 40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃ - 40°C to + 65°C(-40°F to 149°F)
Installation(Optional) Suspension / Ceiling Mounting Optional
Certificate CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available
