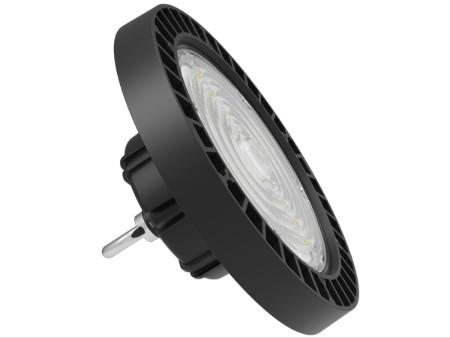

200W HB2.5 UFO Hight Bay Light SMD2835 Corrosive Resistant Powder Coated Finish
200W HB2.5 UFO Hight Bay Light SMD2835 Corrosive Resistant Powder Coated Finish
200W HB2.5 UFO Hight Bay Light SMD2835 Corrosive Resistant Powder Coated Finish
200W HB2.5 UFO Hight Bay Light SMD2835 Corrosive Resistant Powder Coated Finish
Specifications
Brand Name :
DUALRAYS
Model Number :
DR-HB200-BHGXP
Certification :
CE ROHS SAA ISO
Place of Origin :
Shenzhen,China
MOQ :
10pcs
Price :
Please inquiry for updated price
Payment Terms :
L/C, T/T, Western Union, paypal
Supply Ability :
50000PCS/Month
Delivery Time :
5-15 Bussiness Day
Packaging Details :
Netural Package/OEM and ODM Package Available
Rated Input Voltage/V :
AC100~277V, 50/60Hz
LEDs Light Source :
SMD2835 (1W)
CCT/K :
5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra :
>70Ra (>80Ra for Option)
Beam Angle(Optional) :
60°/90°/120° Optional
Dimming :
0/1-10V/Zigbee
Material :
Aluminum+PC (Toughened Glass Cover Optional)
Lifespan/hrs :
56.000 Hrs (Ta=30℃@L70)
Description

200W HB2.5 UFO Hight Bay Light New Design For Wholesale High Performance SMD2835

200W HB2.5 UFO Hight Bay Light SMD2835 Corrosive Resistant Powder Coated Finish

Options:

> Driver: DUALRAYS Non-isolated Driver;
> Controls and Dimming: 1-10V, Motion sensor,Daylight sensor,Zigbee and Emergency;
> Reflector : PC reflector / Al reflector;
> Lens : 60°/90°/120° beam angle optional;
> Installation: Loop Hanging, Ceiling Mounting, Wall Mounting;

Features:

> High Brightness SMD2835 LEDs (1W), DUALRAYS Own-developed Driver;

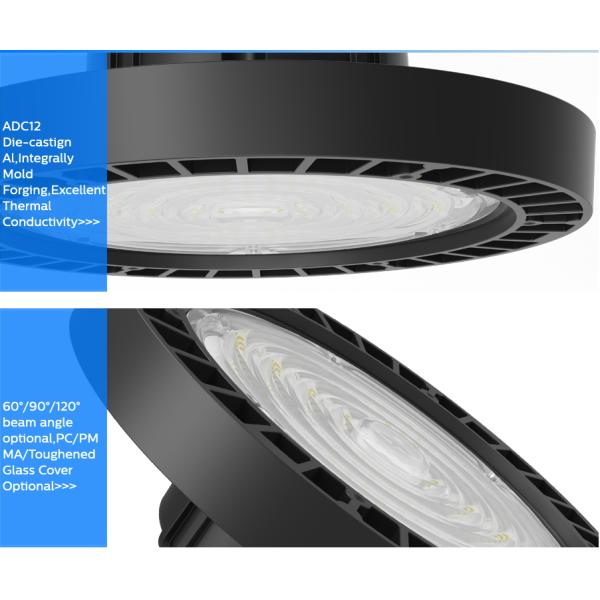

> ADC12 Die-castign Al,Integrally Mold Forging,Excellent Thermal Conductivity；
> IP65 / IK08 Protection;
> 60°/90° /120° beam angle optional;
> Corrosive Resistant Powder Coated Finish;
> Multiple Installations: Loop Hanging, Ceiling Mounting, Wall Mounting;
> Various intelligent control: 1-10V, Motion sensor,Daylight sensor,Zigbee and Emergency;
> L70/B20 @ 56.000h;
> Customized supported for special projects;
Application:
> Factories / Warehouses / Supermarket
> Exhibitions / Showrooms / Animal Farm
> Barns and Riding Halls / Logistic Center
> High Rooms and Halls / Stadium / Chemical Plant
> Traditional lamp replacement
Specification:
Model No.
DR-HB100-BHGXP
DR-HB150-BHGXP
DR-HB200-BHGXP
System Watts/W
100W
150W
200W
System Efficiency/LPW
140LPW / 160LPW Optional
Lumen Output/lm
14.000 / 16.000±5%
21.000 / 24.000±5%
28.000 / 32.000±5%
Rated Input Voltage/V
AC100~277V, 50/60Hz
LEDs Light Source
SMD2835 (1W)
SDCM
<5
CCT/K
5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra
>70Ra (>80Ra for Option)
Power Factor
>0.95
THD
<10%
Beam Angle(Optional)
60°/90°/120° Optional
UGR
<25
Surge Protection
3.75~4KV SPD built in Driver
LED Driver
DUALRAYS Own-developed High PF Non-isolated Driver
IP Rating
IP65
Dimming(Optional)
0/1-10V/Zigbee
Sensor(Optional)
Motion Sensor,Daylight Sensor
Emergency(Optional)
Available (30W @ 3Hrs for Standard)
Protection Class
ClassⅠ
Finishing Color(Optional)
Black RAL9017(Standard) / White RAL9016 Optional
Material
Aluminum+PC (Toughened Glass Cover Optional)
Lifespan/hrs
56.000 Hrs (Ta=30℃@L70)
Operation Temp/℃
40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃
- 40°C to + 65°C(-40°F to 149°F)
Installation(Optional)
Loop Hanging, Ceiling Mounting, Wall Mounting
Certificate
CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

Dimmision:

Character/Power
100W
150W
200W
200W HB2.5 UFO Hight Bay Light SMD2835 Corrosive Resistant Powder Coated Finish
A
φ255mm
φ295mm
φ335mm
B
151mm
163mm
168mm

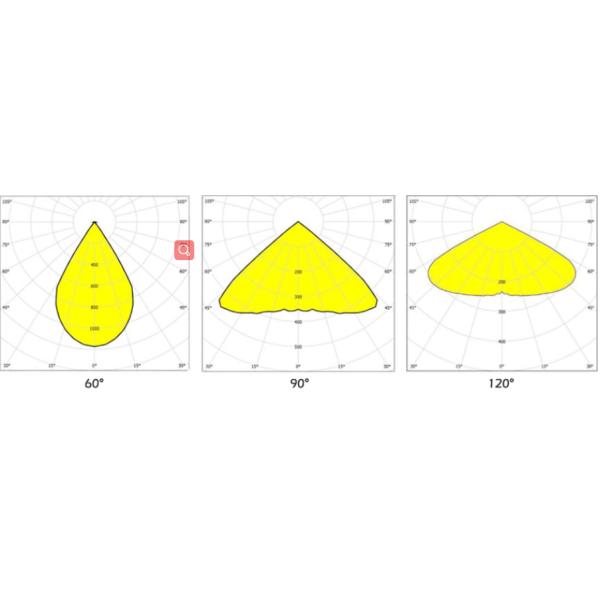

Optical and photometric:

200W HB2.5 UFO Hight Bay Light SMD2835 Corrosive Resistant Powder Coated Finish

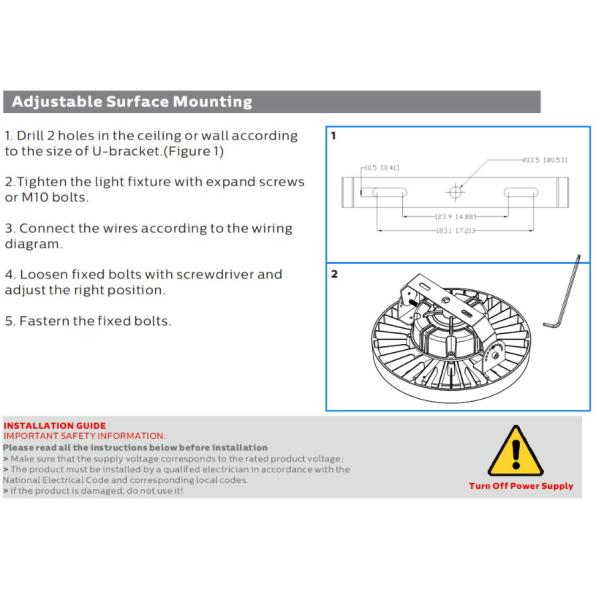

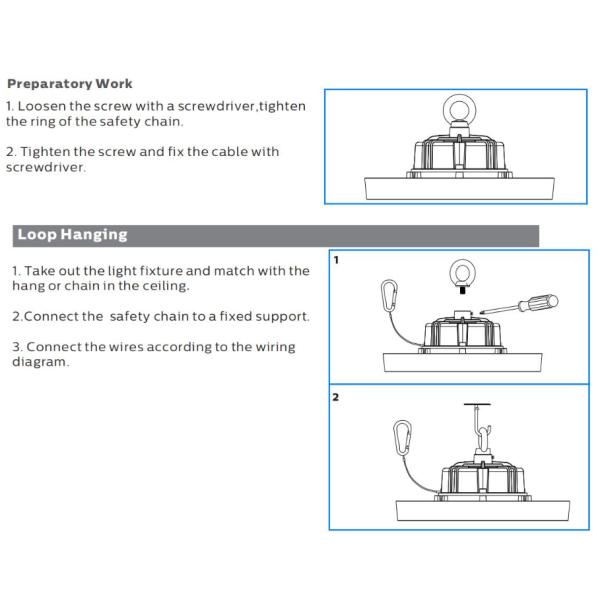

Installation:

200W HB2.5 UFO Hight Bay Light SMD2835 Corrosive Resistant Powder Coated Finish

200W HB2.5 UFO Hight Bay Light SMD2835 Corrosive Resistant Powder Coated Finish

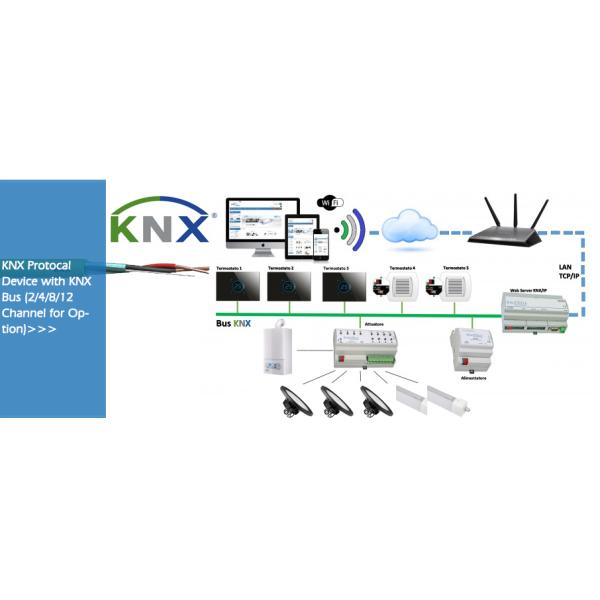

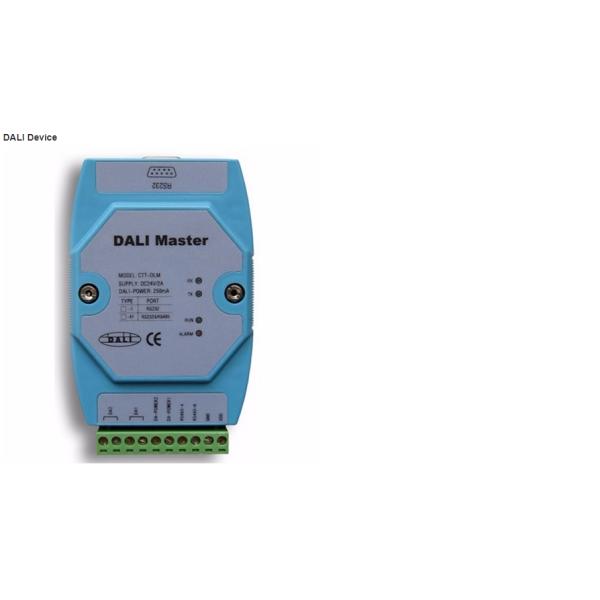

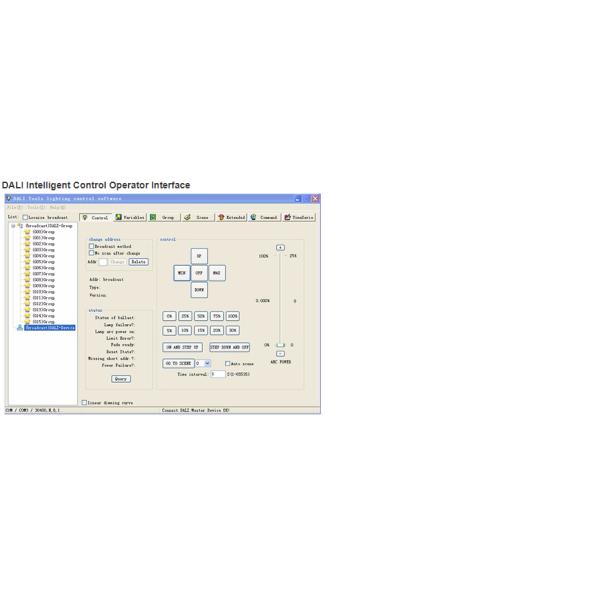

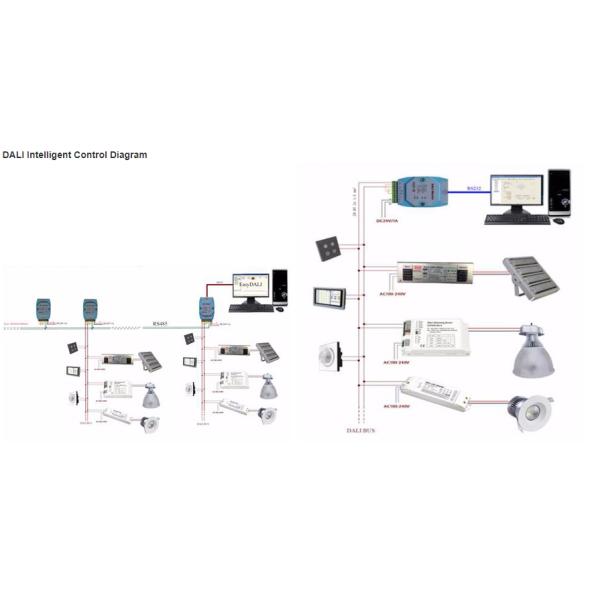

Smart Lighting Introduction:

200W HB2.5 UFO Hight Bay Light SMD2835 Corrosive Resistant Powder Coated Finish

200W HB2.5 UFO Hight Bay Light SMD2835 Corrosive Resistant Powder Coated Finish

200W HB2.5 UFO Hight Bay Light SMD2835 Corrosive Resistant Powder Coated Finish

Details Demo:

200W HB2.5 UFO Hight Bay Light SMD2835 Corrosive Resistant Powder Coated Finish

200W HB2.5 UFO Hight Bay Light SMD2835 Corrosive Resistant Powder Coated Finish

Shipment and Package:

Model No.
Net Weight/Kg
Outer Carton Size/mm
Gross Weight/Kg
QTY”/CTN
DR-HB100-BHGXP
2.1
280*280*130
2.4
1PCS/CTN
DR-HB150-BHGXP
2.5
330*330*130
2.8
1PCS/CTN
DR-HB200-BHGXP
2.8
380*380*170
 3.1
1PCS/CTN
