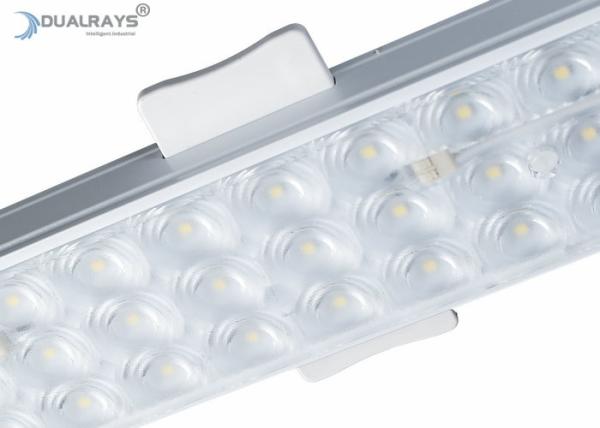

5ft 55W Fixed Power Universal LED Linear light Module for Supermarket
5ft 55W Fixed Power Universal LED Linear light Module for Supermarket
5ft 55W Fixed Power Universal LED Linear light Module for Supermarket
5ft 55W Fixed Power Universal LED Linear light Module for Supermarket
5ft 55W Fixed Power Universal LED Linear light Module for Supermarket
5ft 55W Fixed Power Universal LED Linear light Module for Supermarket
5ft 55W Fixed Power Universal LED Linear light Module for Supermarket
5ft 55W Fixed Power Universal LED Linear light Module for Supermarket
Specifications
Brand Name :
Dualrays
Model Number :
DR-ULM055-DE5C
Certification :
CE, Rohs,
Place of Origin :
China
MOQ :
8pcs
Price :
Standard
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
100000PCS/Month
Delivery Time :
15 business days
Packaging Details :
Neutral Package,color box package,8PCS/CTN,
Rated Power :
55W
Luminous Flux :
8,250±5%
Color Temperature :
3000K~6000K
Color Index :
>83Ra
Switching Cycle before Failure :
100,000
Warranty :
5 years
Description

5ft 55W Fixed Power Universal LED Linear light Module for Supermarket

5ft 55W Fixed Power Universal LED Linear light Module for Supermarket5ft 55W Fixed Power Universal LED Linear light Module for Supermarket

Item Symbol

Description
Model No / DR-ULM055-DE5C
Length mm 1430
Color / White RAL 9003
LEDs source / SMD2835
Driver / BOKE
Efficiency LPW 150
Colo Temperature CCT/K WW:3000±200K NW: 4000±200K DW:5000±200K CW: 6000±200K
Dimming Function / DALI
Protections / Short circuit/Over current/Over voltage/Over temperature
Anti-salty spray / Grade A
Color Index Ra >80Ra
Beam Angle Degree 30°/60°/90°/120°/Double Asy 25°/Single Asy 25°
AC Input Vol V AC220-240V/DC180-264V
Output Vol V DC32V
Power Factor PF PF>0.95
Lumen Maintenance @ 6000 hrs Hours >80%
Switching Cycle before Failure Times 100,000
Life Span Hours 50,000
Warranty Years 5 years
Operation Temperature ℃ -40 ~ +55℃
Storage Temperature ℃ -40 ~ +85℃

Feature

a. Private Mold for PMMA Extrusion lens,much more durable and elegant normal PC Injection lens in the market;

b. This model was used in Germany replacement;

c. Osram adjustable power with switch for more power choice during actual occasions,AC/DC input;

d. BOKE flicker-free driver,with non-dimming,1-10V,DALI dimming, AC/DC input;

5ft 55W Fixed Power Universal LED Linear light Module for Supermarket

5ft 55W Fixed Power Universal LED Linear light Module for Supermarket5ft 55W Fixed Power Universal LED Linear light Module for Supermarket

Advantage

* Powerful production capacity and QC management system;

* Excellent experience for distributors, wholesales and contractor from Western Europe and Oceania;

* All our LED liminaires comply with CE, RoHS standard. TUV, ENEC, VDE, SAA,C-Tick, LM79,LM80 listed for the leading products;

* Supply different version with different configurations for our customers.

Application

* Office

* Workshops and warehouse

* Supermarkets

* Underground parking

5ft 55W Fixed Power Universal LED Linear light Module for Supermarket

5ft 55W Fixed Power Universal LED Linear light Module for Supermarket

5ft 55W Fixed Power Universal LED Linear light Module for Supermarket

5ft 55W Fixed Power Universal LED Linear light Module for Supermarket

5ft 55W Fixed Power Universal LED Linear light Module for Supermarket

5ft 55W Fixed Power Universal LED Linear light Module for Supermarket

5ft 55W Fixed Power Universal LED Linear light Module for Supermarket

5ft 55W Fixed Power Universal LED Linear light Module for Supermarket

5ft 55W Fixed Power Universal LED Linear light Module for Supermarket

In addition,we can provide our customers value added service with Dialux software for lighting design projects free of charge.
5ft 55W Fixed Power Universal LED Linear light Module for Supermarket 5ft 55W Fixed Power Universal LED Linear light Module for Supermarket
