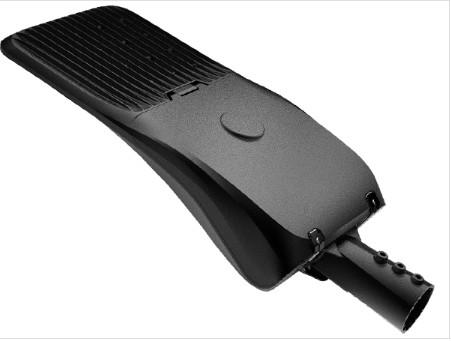

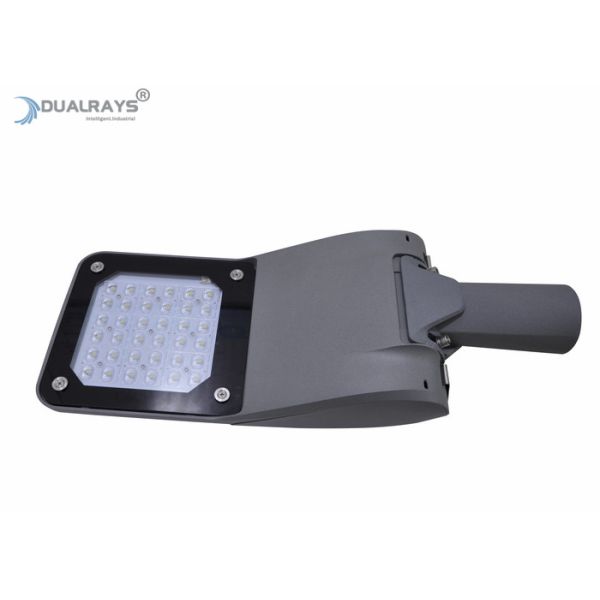

120W Outdoor LED Street Lights Integrated Die Casting Al IP65 IK08 120LPW
120W Outdoor LED Street Lights Integrated Die Casting Al IP65 IK08 120LPW
120W Outdoor LED Street Lights Integrated Die Casting Al IP65 IK08 120LPW
120W Outdoor LED Street Lights Integrated Die Casting Al IP65 IK08 120LPW
Specifications
Brand Name :
Dualrays
Model Number :
DR-ST120-CGXX
Certification :
CE ROHS SAA LM79 ENEC
Place of Origin :
China
MOQ :
50pcs
Price :
Negotiated
Payment Terms :
T/T
Supply Ability :
50000 per month
Delivery Time :
5-8 work days
System Efficiency/LPW :
120LPW/150LPW Optional
System Watts/W :
30W 60W 90W 120W 150W 180W
Rated Input Voltage/V :
AC100~277V 50/60Hz
LEDs Light Source :
SMD3030/SMD5050 Optional
SDCM :
<6
CCT/K :
3000K/4000K/5000K/5700K/6500K
CRI/Ra :
>70Ra (>80Ra for Option)
Power Factor :
>0.95
LED Driver :
Meanwell ELG/HLG,Sosen
IP Rating :
IP65
Dimming(Optional) :
0/1-10V/PWM/DALI/Zigbee
Material :
Aluminum+PC+Toughened Glass
Description

120W Outdoor LED Street Lights Integrated Die Casting Al IP65 IK08 120LPW

120W Outdoor LED Street Lights Integrated Die Casting Al IP65 IK08 120LPW

Options:
> Driver: ELG/HLG,Sosen;
> Controls and Dimming: 1-10V, DALI, PWM,Zigbee Wireless Dimming for option;
> 10KA SPD,20KA Meanwell SPD optional;
> 3-pins photocell controller ON/OFF,and 7-pins NEMA socket smart wireless control available;
> Zigbee module (Single-lamp Controller and centralized manager) with software for option;
> DALI driver and DALI Centralized Manager optional;
> Light pole adapter for different poles optional;
> Customized supported for special projects.
Application:
> Roadways,Sidewalk;
> Fence & Pathway;
> Campus & Garden;
> Farm & Ranch;

> BASELine Version:

> STANDARDLine Version:

> PROLine Version: 120LPW

> PRIMELine Version: 150LPW

> No UV or IR and completely mercury free;

> L70/B20 @ 60.000h;

> Customized supported for special projects;

> LUMILEDS LUXEON SMD3030 LEDs: LM80/TM-21 Available;

> LM79/TM21/ISTMT/LCP and IES/LDT files available;

(150W S4 LED Street Light)

> Europe Market: CE(EMC+LVD),RoHS,TUV/GS,CB Pending,D-Mark;

> North American Market: ETL/CETL,DLC Premium Pending;

> Oceania Market: SAA,C-Tick,RCM

> High brightness LUXEON SMD3030/SMD5050 LEDs,energy efficient - up to 150 LPW;

> Die-casting Al for excellent heat dissipation;

> Superior PC reflector-optic for low glare applications, and toughened glass protection;

> IP66 and IK08 for road lighting application;

> Driver and housing separated by spacers;

> Professional TypeⅠ/TypeⅡ(Long & Medium)/TypeⅢ(Medium)/TypeⅣ/TypeⅤ (Medium) optic

for option;

> ±15°/-90° lamp head adjustable;;

> No UV or IR and completely mercury free;

> L80/B10 @ 60.000h;

> 5 years warranty,7 years warranty negotiated;

120W Outdoor LED Street Lights Integrated Die Casting Al IP65 IK08 120LPW120W Outdoor LED Street Lights Integrated Die Casting Al IP65 IK08 120LPW120W Outdoor LED Street Lights Integrated Die Casting Al IP65 IK08 120LPW

Technical Parameters

Model No.
DR-ST030-DGXX
DR-ST060-DGXX
DR-ST180-DGXX
System Watts/W
30W
60W
180W

Dimming(Optional)
0/1-10V/PWM/DALI/Zigbee
LED Driver
Meanwell ELG/HLG,Sosen
System Efficiency/LPW
120LPW / 150 LPW Optional
LEDs Light Source
SMD3030/SMD5050 Optional
CCT/K
3000K/4000K/5000K/5700K/6500K
CRI/Ra
>70Ra (>80Ra for Option)
Installation Height
4~8m
Material
Aluminum+PC+Toughened Glass

120W Outdoor LED Street Lights Integrated Die Casting Al IP65 IK08 120LPW

120W Outdoor LED Street Lights Integrated Die Casting Al IP65 IK08 120LPW

120W Outdoor LED Street Lights Integrated Die Casting Al IP65 IK08 120LPW120W Outdoor LED Street Lights Integrated Die Casting Al IP65 IK08 120LPW120W Outdoor LED Street Lights Integrated Die Casting Al IP65 IK08 120LPW120W Outdoor LED Street Lights Integrated Die Casting Al IP65 IK08 120LPW120W Outdoor LED Street Lights Integrated Die Casting Al IP65 IK08 120LPW120W Outdoor LED Street Lights Integrated Die Casting Al IP65 IK08 120LPW

In addition,we can provide our customers value added service with Dialux software for lighting design projects free of charge.

120W Outdoor LED Street Lights Integrated Die Casting Al IP65 IK08 120LPW120W Outdoor LED Street Lights Integrated Die Casting Al IP65 IK08 120LPW

Dualrays adheres to independent innovation, Dualraysers try to build a world well-known LED industrial Lighting Brand.　

120W Outdoor LED Street Lights Integrated Die Casting Al IP65 IK08 120LPW
