Specifications
Brand Name :
Intuiit
Model Number :
TPL-125
Certification :
CE&Rohs
Place of Origin :
China
MOQ :
negotiated
Payment Terms :
T/T
Supply Ability :
10000pcs/month
Delivery Time :
30~35 days
Packaging Details :
Carton、flight case
Type :
Stage par light
Light Source :
LED
Lamp Power :
200W
Input Voltage :
AC100V-240V
IP Rate :
IP65
Warranty :
1-year
Description

New Product Dj Light Dmx 200w Rgbw Led Wash Effect Cob Par Stage Lighting For Dj Disco Stage
High brightness stage lighting led COB 200W RGBW 4 in1 Magic Par
Hot sales stable quality 200W COB LED stage par light

With durable and high temperatureresistance aluminium die casting shell and high quality COB. The built-in cooling fanprovides the best heat dissipation, with low power consumption, low noise, high quality.

TPL-125 is the main product in our COB series. It is 200W RGBW LED. Also it had the high CRI WW or CW LED. This character is very good for the theater or television.

The brightness and color mixing are very good for professional market. The reflector cup is 60degree. Customer could choose our optional diffuser with 15degree or 30degree. The accessories also include the barndoor set. There are rich modes like master/slave, sound, built-in problem, auto running, DMX. The very good performance would earn a lot of benefit for the users.

Our product has CE&Rohs certificates. Both 3pin&5-pin DMX in&out, with Seetronic Power in & out, the fixture is very good quality stage par.

Specification

featureproduct name200W RGBW Indoor COB Par
physical featureProduct Dimention269*203.3*437mm
Inner box500*300*270mm
Outer box525mm*625mm*575mm
Qty/ctn4pcs/ctn
Net weight4.8Kg
Gross weight5.9Kg
Housingaluminium die casting
Device ConnectionDMX in/out,power in/out
Heat-dissipating methodFan
electric parameterPower voltage100-240V AC,50-60Hz
Power consumption210W211.5W @110V203.8W @240V
Power factor0.995 @110V0.968 @240V
Input current2.124A @110V0.876A @240V
Power connection3pcs @110V8pcs @240V
optical systemLEDTX 200W RGBW 4-in-1
drive current1.9A
Dimming0-100%
Strobe frequency0-20Hz
Beam angle60°/30°/15°
maximum luminous flux60° is 8308 / 30° is 6744 /15° is 6263
controlContorl protocolDMX512
DMX channel4,6,8 CHs
OperationLCD
Working modeAuto running, built-in program,DMX512, master/slave,static color
safetyIP GradeIP20
Working tempreture-20 ~ +40℃
elseLux data 1m (lux)2m (lux)3m (lux)4m (lux)5m (lux)
R144141020011979
G2627746360216143
B550161754530
W2761803386235153
RGBW64002036960577378
sparesUser Manual , power line
Additional Featurestemperature protection


200W 4ch Dj Disco Light Dmx Rgbw Led Wash Effect Cob Par 4-in-1 Stage Lighting200W 4ch Dj Disco Light Dmx Rgbw Led Wash Effect Cob Par 4-in-1 Stage Lighting200W 4ch Dj Disco Light Dmx Rgbw Led Wash Effect Cob Par 4-in-1 Stage Lighting200W 4ch Dj Disco Light Dmx Rgbw Led Wash Effect Cob Par 4-in-1 Stage Lighting200W 4ch Dj Disco Light Dmx Rgbw Led Wash Effect Cob Par 4-in-1 Stage Lighting
Dimension sheet:

200W 4ch Dj Disco Light Dmx Rgbw Led Wash Effect Cob Par 4-in-1 Stage Lighting200W 4ch Dj Disco Light Dmx Rgbw Led Wash Effect Cob Par 4-in-1 Stage Lighting

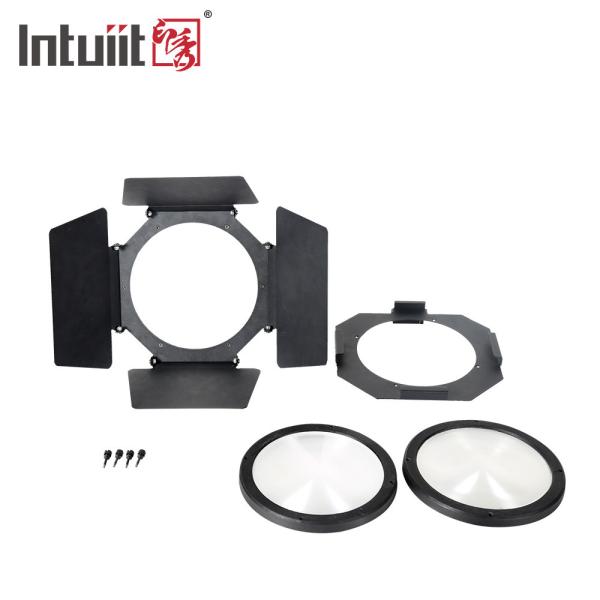

Accessories:

FAQ

Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable


Q2. What about the lead time?
A:Sample needs 5~15 days, mass production time needs 25~35days


Q3. Do you have any MOQ limit for led light order?
A: MOQ20 to 50, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A:Firstly:let us know your requirements or application.
Secondly:We quote according to your requirements or our suggestions.
Thirdly:customer confirms the samples and places deposit for formal order.
Fourthly:We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1, 2 , 5 year warranty to our products.
Q8: How to deal with the faulth?
A: Firstly:Our products are produced in strict quality control system and the defective rate will be less than 2%.
Secondly:during the guarantee period, we will send new spare parts for replacement. For defective batch products, we can discuss with the real situation.
Q9: Do you work a project?

A: Sure. We have more than 50 engineers and a EPC department. We are a national high-tech enterprise which integrates with " Lighting Design, Product R&D and manufacturing, control & programming, installation, Maintenance and upgrading".
