RGBW COB Par Can
RGBW COB Par Can
RGBW COB Par Can
RGBW COB Par Can
RGBW COB Par Can
RGBW COB Par Can
RGBW COB Par Can
RGBW COB Par Can
RGBW COB Par Can
RGBW COB Par Can
Specifications
Brand Name :
Intuiit
Model Number :
YX-022
Certification :
CE&Rohs
Place of Origin :
China
MOQ :
50pcs
Payment Terms :
T/T
Supply Ability :
10000pcs/month
Delivery Time :
30~35 days
Packaging Details :
Carton、flight case
Type :
Stage par light
Light Source :
LED
Lamp Power :
120W
Input Voltage :
AC100V-240V
IP Rate :
IP20
Warranty :
1-year
Description

YX-022

DMX 512 Control Compact Design 120W RGBW COB Par LED Stage Light

YX-022 is 120W RGBW COB LED. The housing is private plastic one which is compact design. About the optical part, it is 70degree reflect cup. There is Fresnel len to make it narrower and brighter.

It is Setronic power con in&out and DMX in&out connector. There are rich modes such as master/slave, sound, built-in problem, auto running, DMX. It is very good item for rental market.

Our COB item would be rich application for stage, event and concert. This item is very hot sale. We believe it would be a good option.

Specification

Item number YX-022
Product Dimension 265*250*195 mm
Inner box 345*245*270 mm
Outer box 515*370*575 mm(4pcs/ctn)
Weight N.W 3kg /G.W 14kg
Connector DMX in/out,power in/out
Power Voltage AC100V ～ 240V,60/50Hz
Power Consumption 130W 130W@110V 125W@240V Power factor 1 　
Current 1.31A@110V 0.578 A@240V
Power linking 9pcs@110V 22pcs@240V
LED 4-IN-1 RGBW Driver current 1.4A
Dimming 0-100%(14-bit) Strobe 0-20Hz
Beam angle 67degree Max Lumen 3276LM
DMX channel 4,6,11CHs
IP IP20
Working Tempreture -20 ～ +45℃
Lux Sheet Distance R(LUX) G(LUX) B(LUX) W(LUX) ALL(LUX)
1(m) 398 927 259 1072 2144
2(m) 113 250 71 290 660
3(m) 58 131 36 150 344
4(m) 37 78 22 90 205
5(m) 25 53 15 60 136

RGBW COB Par Can

RGBW COB Par CanRGBW COB Par CanRGBW COB Par CanRGBW COB Par Can
Optic:

RGBW COB Par Can

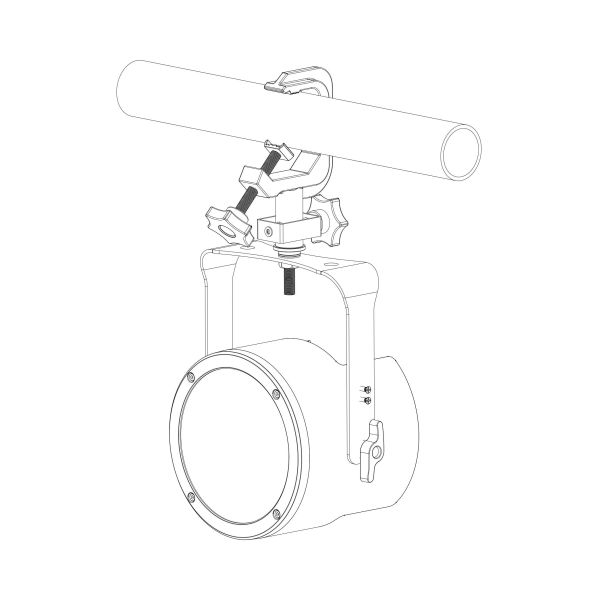

Installation:

RGBW COB Par Can

RGBW COB Par CanRGBW COB Par CanRGBW COB Par CanRGBW COB Par CanRGBW COB Par CanRGBW COB Par CanRGBW COB Par Can

FAQ

Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable

Q2. What about the lead time?
A: Sample needs 5~15 days, mass production time needs 25~35days

Q3. Do you have any MOQ limit for led light order?
A: MOQ20 to 50, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?
A: Firstly:let us know your requirements or application.
Secondly:We quote according to your requirements or our suggestions.
Thirdly:customer confirms the samples and places deposit for formal order.
Fourthly:We arrange the production.

Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 1, 2 , 5 year warranty to our products.

Q8: How to deal with the faulth?
A: Firstly:Our products are produced in strict quality control system and the defective rate will be less than 2%.
Secondly:during the guarantee period, we will send new spare parts for replacement. For defective batch products, we can discuss with the real situation.

Q9: Do you work a project?

A: Sure. We have more than 50 engineers and a EPC department. We are a national high-tech enterprise which integrates with " Lighting Design, Product R&D and manufacturing, control & programming, installation, Maintenance and upgrading".
