Specifications
Brand Name :
Intuiit
Model Number :
YX-200P
Certification :
CE&Rohs
Place of Origin :
China
MOQ :
50pcs
Payment Terms :
T/T
Supply Ability :
10000pcs/month
Delivery Time :
30~35 days
Packaging Details :
Carton、flight case
Type :
Stage par light
Light Source :
LED
Lamp Power :
170W
Input Voltage :
AC100V-240V
IP Rate :
IP65
Warranty :
1-year
Description

Outdoor COB LED stage lighting, YX-200P DMX512 Zoom Par RGBW 200W:

200W RGBW LED Par Lights - The DMX LED stage light, which can create a 10-55 degree lighting effect. The DMX LED light provide red, green, blue and white (RGBW) colors, which can be blended together to create almost any color, provides pure and full vibrant colors.

Color change is natural, with better color mixing.meanwhile, it also have single white LED type optional.

DMX512 protocol and RDM function.

This fixture can be widely used in theme parktheme town and other places.

Specification

Product name 200W COB ZOOM Stage LED Par
Item Number YX-200P

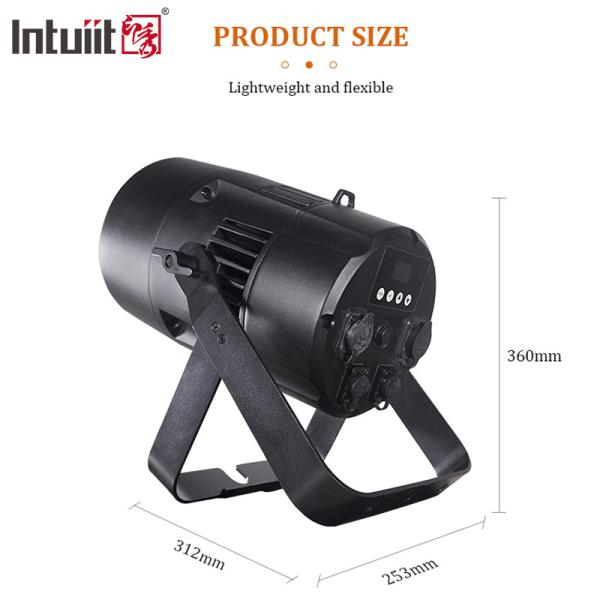

size of the product 312*253*360MM
size of the inner box 525*375*300MM
size of the master carton 555*405*640MM
QTY 2PCS/CTN
NW 5.7Kg
GW 7KG
housing die casting magnesium
connectors DMX in/out(5pin),power in/out
cooling with fan
voltage AC100-240V/60-50HZ
max power 170W/AC100V 160W/AC240V
PF 0.972/AC100V 0.778/AC240V
input currect 1.756A/AC100V 0.852A/AC240V
power linking 7pcs/AC100V 14pcs/AC240V
LED 200W 4-in-1 RGBW COB
driver current 2.3A
dimmer 0-100%
strobe 0-20Hz
beam angle beam angle 10 - 33degree spot angle 23 - 57degree
flux 1865 - 2511(lm)
protocol DMX512
DMX channel 5/6/7/11 CH
display OLED display
IP rate IP65
working temperature -15℃~45℃
distance W color temperature F R G B W
1m 5226 39500 5950 13530 2180 15520
2m 5213 9770 1330 3333 550 5134
3m 5214 4161 555 1435 232 2213
4m 5202 2250 307 800 132 1220
5m 5194 1405 185 450 82 756
distance W color temperature F R G B W
1m 5454 5600 800 1980 320 2840
2m 5431 1580 205 560 96 824
3m 5435 736 92 263 46 386
4m 5430 424 52 152 27 223
5m 5420 285 38 108 18 151

IP65 DMX Led Cob 200w Par Lighting Outdoor Christmas Lights RGBW

Optic:

IP65 DMX Led Cob 200w Par Lighting Outdoor Christmas Lights RGBW

Installation:

IP65 DMX Led Cob 200w Par Lighting Outdoor Christmas Lights RGBW

IP65 DMX Led Cob 200w Par Lighting Outdoor Christmas Lights RGBWIP65 DMX Led Cob 200w Par Lighting Outdoor Christmas Lights RGBWIP65 DMX Led Cob 200w Par Lighting Outdoor Christmas Lights RGBWIP65 DMX Led Cob 200w Par Lighting Outdoor Christmas Lights RGBWIP65 DMX Led Cob 200w Par Lighting Outdoor Christmas Lights RGBWIP65 DMX Led Cob 200w Par Lighting Outdoor Christmas Lights RGBWIP65 DMX Led Cob 200w Par Lighting Outdoor Christmas Lights RGBW

FAQ

Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable

Q2. What about the lead time?
A: Sample needs 5~15 days, mass production time needs 25~35days

Q3. Do you have any MOQ limit for led light order?
A: MOQ20 to 50, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?
A: Firstly:let us know your requirements or application.
Secondly:We quote according to your requirements or our suggestions.
Thirdly:customer confirms the samples and places deposit for formal order.
Fourthly:We arrange the production.

Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 1, 2 , 5 year warranty to our products.

Q8: How to deal with the faulth?
A: Firstly:Our products are produced in strict quality control system and the defective rate will be less than 2%.
Secondly:during the guarantee period, we will send new spare parts for replacement. For defective batch products, we can discuss with the real situation.

Q9: Do you work a project?

A: Sure. We have more than 50 engineers and a EPC department. We are a national high-tech enterprise which integrates with " Lighting Design, Product R&D and manufacturing, control & programming, installation, Maintenance and upgrading".
