10w 4in1 RGBW Mini LED Moving Head Beam Light DMX512 LED Beam Light

TECHNICAL SPECIFICATIONS

Power Supply: AC100-240V, 50-60Hz

Power Consumption: 20W

Light Source: PL-60 1pcs*10W 4in1 RGBW high brightness leds

PL-60A 1pcs*8W White high brightness leds

Features: Full Master/Slave operation in any operational mode
Low heat and long life LEDs(100,000hrs)
Smooth RGBW color mixing
Electronic Dimming, color strobe effect
Stand Alone
Linkable via 3-pin XLR cable
General dimming and blackout for all colors
Mini and compact housing,only 1.8kg
Flicker free
Sharpy and powerful Beam

Beam Angle: 6 degrees
Dimmer: 0-100% smooth linear dimming

Strobe: High speed electronic strobe reaches 1-25 times/second and pulse effect

Pan: 540 degree
Tilt: 270 degree
Preset program: 8 built in programs can be called up via DMX controller

Control mode: DMX512, master-slave and sound activated controllable or auto operation
DMX Channel: 11/15DMX Channels

Connectors: 3 -pin XLR signal connector input and output
Control Panel: LCD display

Protection: Fan cooling ,over heat protection
Work environment: indoor-15°C-40°C

Cooling System: Low noise and efficient FAN cooling system

Carton Package:
Net Weight 2KG

Gross Weight 3KG
Packing Size: 30*22*32cm (1pcs/CTN);510*510*220mm(4pcs/CNS)

Accessories

Moving Head Light..................1pcs

Signal cable.........................1pcs

Omega Clamp.......................2pcs

Power Cable.........................1pcs

User Manual..........................1pcs

Consumables

Description:

LED MINI BEAM is designed for small to medium night clubs, Mobile DJ's and Banquet halls. Create excitement in your venue by using this small but powerful unit. Full X/Y Pan and Tilt movement, solid white beam that can be fully dimmed via DMX, This unit has very fast and precise PAN/TILT movement available. It's a fixture producing an outstanding BEAM effect. The fixture comes with 8 internal programs for easy operation and great stabd alone operation.

Applicable: The Mini LED Moving head beam light is great for Bars, KTV, dance bars, performace, wedding, ect.

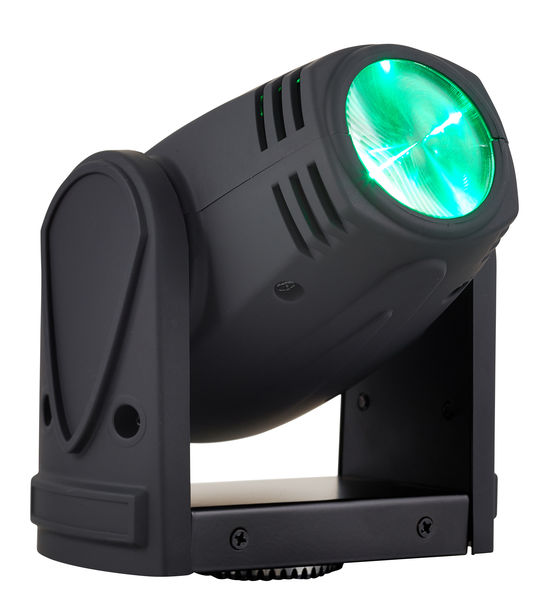

Product Picture

Package
