120lm/W Efficiency 50/60Hz Frequency 80W cri 70 waterproof street lamp

Product Description

*ZHSL-19 family is a high-performance street light available in three size

*ZHSL-19-80 is the middle one

*The luminous will be at least 120lm/w

*Product Size:627*271*103mm

*Finish:power coating,general colour will be :double grey/sandy black/matt silver

Product Specification

*Item No.:ZHSL-19-80

*Input Wattage:80W

*Color Temperature:3000-6500K

*Color Rendering Index:Ra≥70

*Led Lifetime:50000h

*Protection Grade:IP66

*Installation Pipe Diameter:∅60mm

*NW/GW:6.0/6.5kgs

*Packing Size:62*31*15.5cm

Product Material

*Die casting aluminum body

*Ultra clear tempered glass and PC lens

SL-19 Family Product Specification

Photometric Data

Line Drawing

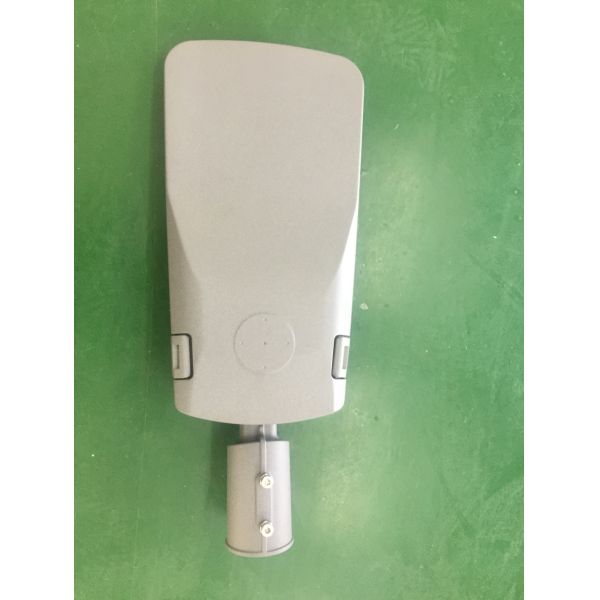

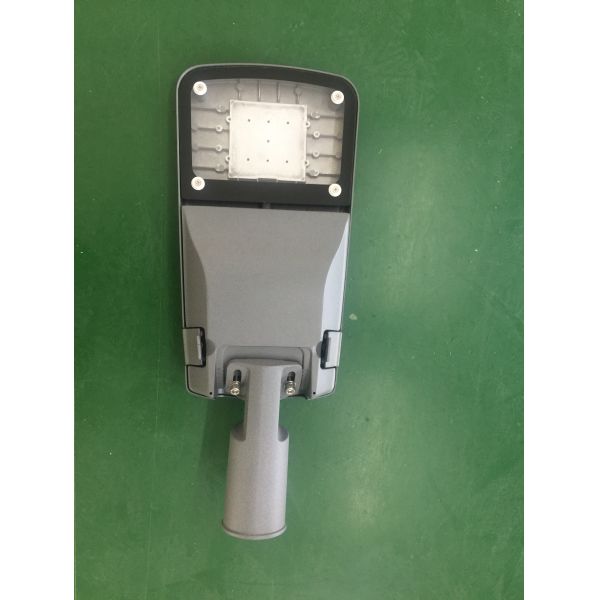

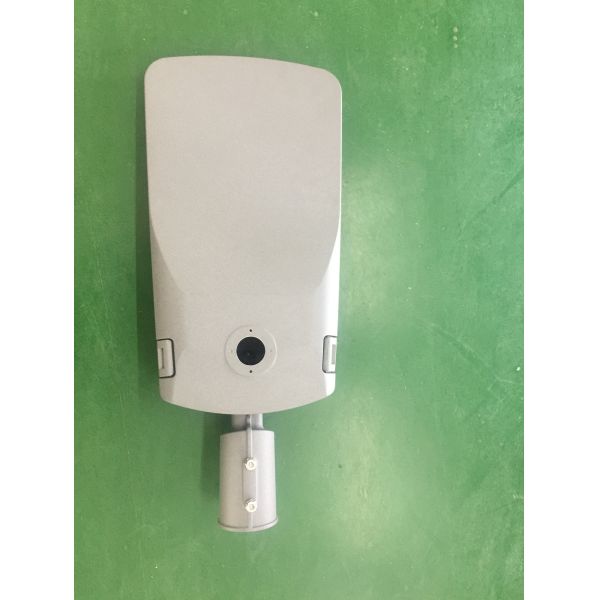

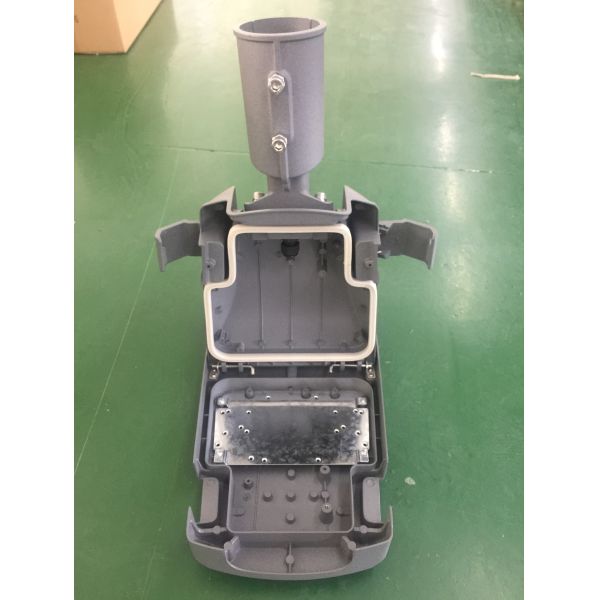

Product Pictures

Equipment

Company profile

* A professional origin die casting manufacturer of led outdoor light.

* With more than 2 decades years experience.

* 10000+ square meter plant, 120 employees, located in China Ninghai Mould City

* Completed lighting production equipment & workshop: semi-automatic die casting machines, CNC drilling treatment, Sandblast machine, Powder spraying line, Lamps assembly line, Aging test line.

* Full facilities of outdoor lighting testing for IP/ IK/ Salt Spray / Thermal / IES files, etc.

* Offering led complete-set lamp and empty housing, including led street light / led solar street light /led high bay light / led high pole light / led garden light / led urban light.

* 6 elite designers & engineers, developing 8-12 new styles every year.

* ISO9001 quality control system.

* CE, RoHS, TUV certificates.

* 5-7years guarantee

* ODM and OEM service are both available to customers domestic and overseas.
