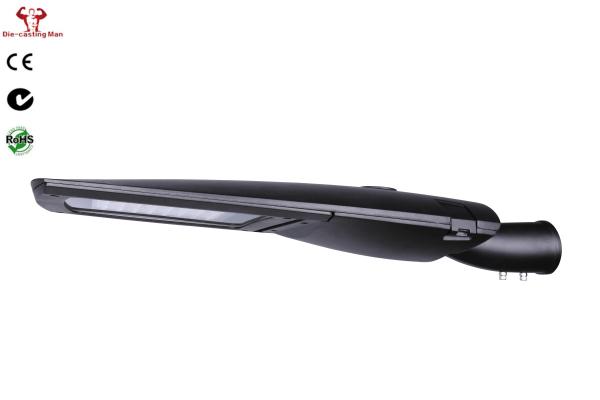

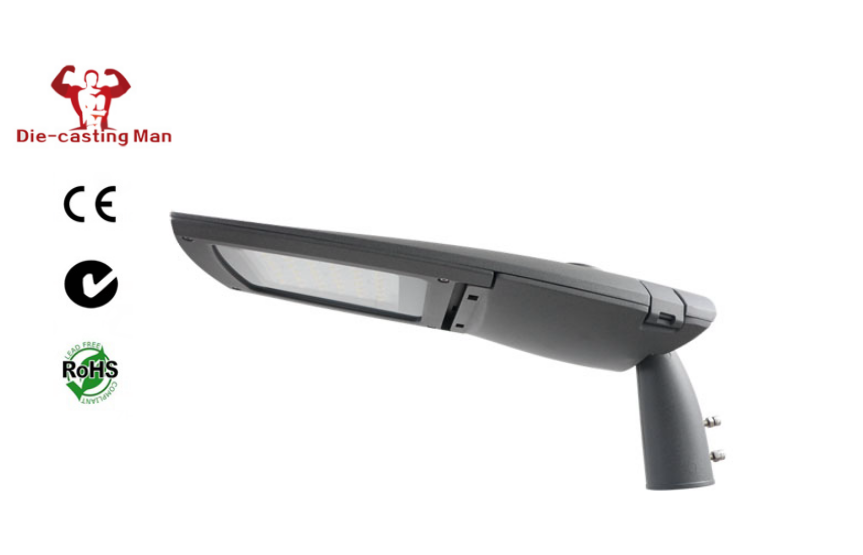

40-180W Engery Saving Outdoor Street Light Fixtures 120Lm/W IP66 Die - Casting Aluminium Shell
40-180W Engery Saving Outdoor Street Light Fixtures 120Lm/W IP66 Die - Casting Aluminium Shell
40-180W Engery Saving Outdoor Street Light Fixtures 120Lm/W IP66 Die - Casting Aluminium Shell
40-180W Engery Saving Outdoor Street Light Fixtures 120Lm/W IP66 Die - Casting Aluminium Shell
40-180W Engery Saving Outdoor Street Light Fixtures 120Lm/W IP66 Die - Casting Aluminium Shell
40-180W Engery Saving Outdoor Street Light Fixtures 120Lm/W IP66 Die - Casting Aluminium Shell
40-180W Engery Saving Outdoor Street Light Fixtures 120Lm/W IP66 Die - Casting Aluminium Shell
40-180W Engery Saving Outdoor Street Light Fixtures 120Lm/W IP66 Die - Casting Aluminium Shell
40-180W Engery Saving Outdoor Street Light Fixtures 120Lm/W IP66 Die - Casting Aluminium Shell
40-180W Engery Saving Outdoor Street Light Fixtures 120Lm/W IP66 Die - Casting Aluminium Shell
40-180W Engery Saving Outdoor Street Light Fixtures 120Lm/W IP66 Die - Casting Aluminium Shell
40-180W Engery Saving Outdoor Street Light Fixtures 120Lm/W IP66 Die - Casting Aluminium Shell
Specifications
Brand Name :
Die Casting Man
Model Number :
ZHSL-14-120
Certification :
CE
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiation
Payment Terms :
By T/T 30% in advance and 70% after shipment EXW/FOB NINGBO, Western Union, L/C
Supply Ability :
10000PCS/Month.
Delivery Time :
7-30 days base on order quantity
Packaging Details :
Carton box
Manufacturer :
Ninghai Zhouhua Die Casting Co.,Ltd
Material :
ADC12 Aluminum
CRI :
>70
Fixture Color :
Grey
Input Voltage :
AC85 - 265V
Working Ambient Temperature :
-30℃ - 50℃
IP :
65
Lamp Power :
50W
Description

180W Engery Saving LED Street Lighting Fixtures 120Lm/w IP66 Color Gray Silver White

ZHSL-14 Family

BothHorizontalandVerticalavailable andadjustableangle-15°to 15°

Material:

Diecasting body tempered glass

Guarantee:

5Years

Code ZHSL-14-50 ZHSL-14-50 ZHSL-14-50 ZHSL-14-50 ZHSL-14-50 ZHSL-14-120 ZHSL-14-120
Power 30W 40W 50W 80W 100W 120W 150W
Color 4000K 4000K 4000K 4000K 4000K 4000K 4000K
Tem perature
Efficiency ＞120LM/W ＞120LM/W ＞120LM/W ＞120LM/W ＞120LM/W ＞120LM/W ＞120LM/W
Voltage AC100-240V AC100-240V AC100-240V AC100-240V AC100-240VAC100-240VAC100-240V
PowerFactor PF≥0.95 PF≥0.95 PF≥0.95 PF≥0.95 PF≥0.95 PF≥0.95 PF≥0.95
CRI(Ra) Ra≥70 Ra≥70 Ra≥70 Ra≥70 Ra≥70 Ra≥70 Ra≥70
Am bient -40-50℃ -40-50℃ -40-50℃ -40-50℃ -40-50℃ -40-50℃ -40-50℃
Tem perature
Am bientHum idity20% -90% RH20% -90% RH 20% -90% RH 20% -90% RH 20% -90% RH20% -90% RH20% -90% RH
Lifetim e(hrs) 50000 50000 50000 50000 50000 50000 50000
Installation Pipe Φ60mm Φ60mm Φ60mm Φ60mm Φ60mm Φ70mm Φ70mm
Diam eter
Installation Height 6-8m 6-8m 6-8m 6-8m 8-10m 8-10m 8-10m
NetW eight 5.0kg 5.1kg 5.2kg 5.3kg 5.4kg 8.2kg 8.4kg
GrossW eight 6.1kg 6.2kg 6.3kg 6.4kg 6.5kg 10.1kg 10.3kg
Packing Size(m m ) 780*350*185 780*350*185 780*350*185 780*350*185 780*350*185 965*420*195 965*420*195

40-180W Engery Saving Outdoor Street Light Fixtures 120Lm/W IP66 Die - Casting Aluminium Shell

Code ZHSL-14-50 ZHSL-14-50 ZHSL-14-50 ZHSL-14-50 ZHSL-14-50 ZHSL-14-120 ZHSL-14-120
L (m m ) 738 738 738 738 738 922 922
W (m m ) 289 289 289 289 289 362 362
H (m m ) 118 118 118 118 118 140 140

Product Description

Thisseriesisa high-perform ance streetlighting available in tw o sizes. The lum inaire ism anufactured from high pressure die-casting alum inum . Itshallhave a led efficacy up to 120 lm /w and w illbe capable ofproducing

up to 18000 lum inaire lum ensat4000K finished in Grey orblack asstandard.

40-180W Engery Saving Outdoor Street Light Fixtures 120Lm/W IP66 Die - Casting Aluminium Shell

40-180W Engery Saving Outdoor Street Light Fixtures 120Lm/W IP66 Die - Casting Aluminium Shell
