OEM Super Bright LED Street Light Housing Die Casting with ADC12 Aluminum
OEM Super Bright LED Street Light Housing Die Casting with ADC12 Aluminum
OEM Super Bright LED Street Light Housing Die Casting with ADC12 Aluminum
OEM Super Bright LED Street Light Housing Die Casting with ADC12 Aluminum
Specifications
Brand Name :
Die Casting Man/OEM
Certification :
Roth
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiation
Payment Terms :
By T/T 30% in advance and 70% after shipment EXW/FOB NINGBO, Western Union, L/C
Supply Ability :
10000PCS/Month.
Delivery Time :
7-30 days base on order quantity
Packaging Details :
Carton box
Model Number :
ZHSL-04-80
Material :
die casting Aluminum
Wattage :
80W
CCT :
3000-6500K
Lumen :
9600lm
Installation Pipe Dia. :
φ60mm
IP :
66
Description

ADC12 Die Casting 80W Outdoor LED Street Light Housing / Street Lighting Fixture

Product Specification:

Product Code ZHSL-04-80 ZHSL-04-120 ZHSL-04-180
Input Wattage 80W 120W 180W
Color Temperature 3000-6500K 3000-6500K 3000-6500K
Luminous Flux 8800-9600lm 13200-14400lm 19800-21600lm
Input Voltage AC90-305V AC90-305V AC90-305V
Frequency Range 50/60Hz 50/60Hz 50/60Hz
Power Factor PF≥0.95 PF≥0.95 PF≥0.95
Color rendering index Ra≥70 Ra≥70 Ra≥70
Temperature of working condition -40-50℃ -40-50℃ -40-50℃
Humidity of working condition 20%-90%RH 20%-90%RH 20%-90%RH
LED Lifetime 50000h 50000h 50000h
Protection Grade IP66 IP66 IP66
Installation Pipe Diameter Φ60mm Φ60mm Φ60mm
Installation Height 6-8m 8-12m 10-14m
Net Weight 5.0kgs 7.5kgs 11.5kgs
Gross Weight 5.4kgs 8.0kgs 12.5kgs
Packing Size(mm) 705*290*160 860*330*160 1005*400*185
Product Size(mm) 650*237*121 800*291*131 950*347*155

Applications:

Motorways,Major roads,minor roads,roundabouts,crossing and industrial areas.

OEM Super Bright LED Street Light Housing Die Casting with ADC12 Aluminum

OEM Super Bright LED Street Light Housing Die Casting with ADC12 Aluminum


OEM Super Bright LED Street Light Housing Die Casting with ADC12 Aluminum

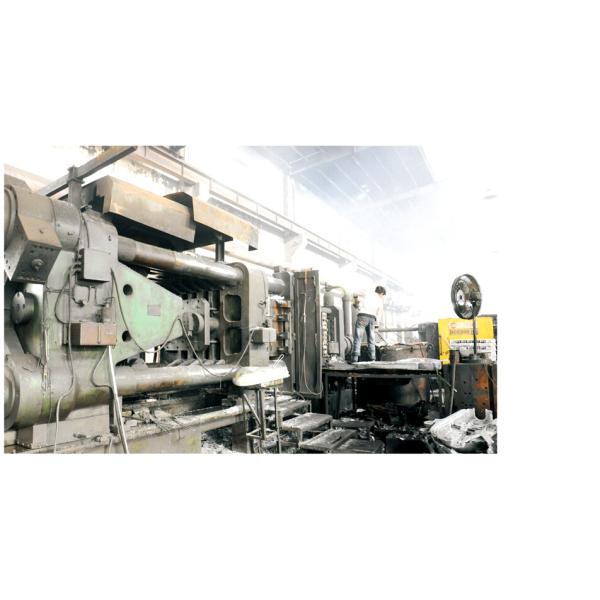

We are a professional Die casting factory for around 30years.

If you are importing lighting fixture,of sure our company will be a good option for you since:
1)we can use the material according to your component request.
2)we are die-casting manufacturer for around 30year, we are professional on lighting design and the quality and cost control.
3)we have profession engineer to make sure the design of the housing or the technical date of the product is meet your requirement.
make your idea/drawing to be truth.
4)we are a lighting industrial park,so we can offer the best delivery for you.
5)we have good experience on assembling and exporting lighting fixture for around 10 years,so can offer you very good service.
