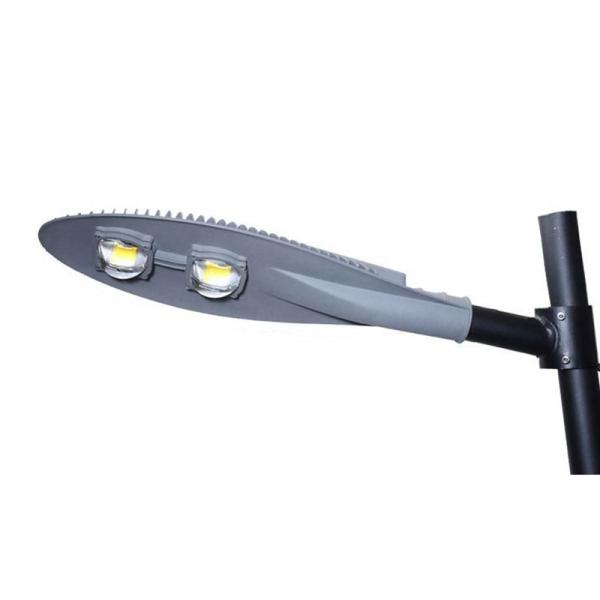

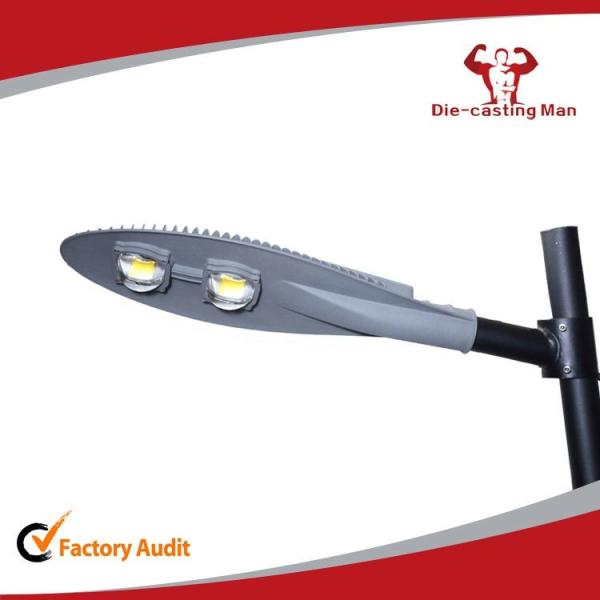

Gold Grey 150 Watt Led Street Light Fixtures AC85 - 265v Led Road Light
Gold Grey 150 Watt Led Street Light Fixtures AC85 - 265v Led Road Light
Gold Grey 150 Watt Led Street Light Fixtures AC85 - 265v Led Road Light
Gold Grey 150 Watt Led Street Light Fixtures AC85 - 265v Led Road Light
Gold Grey 150 Watt Led Street Light Fixtures AC85 - 265v Led Road Light
Gold Grey 150 Watt Led Street Light Fixtures AC85 - 265v Led Road Light
Specifications
Brand Name :
Die Casting Man/OEM
Model Number :
ZHSL-10-150 (150W)
Certification :
CE,ROHS, UL,SAA
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiation
Payment Terms :
By T/T 30% in advance and 70% after shipment EXW/FOB NINGBO, Western Union
Supply Ability :
10000PCS/Month.
Delivery Time :
7-30 days base on order quantity
Packaging Details :
Carton box with foam
Manufacturer :
Ninghai Zhouhua Die Casting Co.,Ltd
Material :
Aluminum GB102
Wattage :
150W
Fixture Color :
gold grey
LED Color :
WW/NW/CW
CRI :
>70
Input Voltage :
AC85 - 265V
Frequency Range :
50 - 60Hz
Working Ambient Humidity :
10% - 90%
Working Ambient Temperature :
-30℃ - 50℃
Description

Gold Grey 150 Watt Led Street Light Fixtures AC85 - 265v Led Road Light

Part Number:

ZHSL-10-150W

Unit Price:

US$38

Production Lead Time*:

7-30 Days

Shipping:

EXW / FOB NINGBO

Quantity:

10pcs

Finish Color: Light Gray (Standard) , White, Black.

Product Description:

LED Engine Module

· LED life time of 30,000+ hours

· High power integrated packaging LED chips, 120° beam spread available

· Minimum CRI of 70, custom CRI available

· Operating temp: -30º C to +60º C

· No toxic chemicals / ROHS compliant

· Low Tj for long life, low lumen depreciation

· CE certified, meets ROHS standards

· Eligible for Rebates, Design Lights Consortium® Qualified*

· 50-80% energy savings

· Manufactured in the China

· Standard distribution is Type V, others distributions available

Electrical

· Standard AC input of 85-265v VAC, up to 480v available

· EMI filter: 47CFR, part 2, part 15

· Power factor: >0.9

· Total harmonic distortion: <20%

· Surge protection: IEC/EN 61000-4-5 EMC test standard

· Licensed electrician required for installation

Housing

· Rugged, fully sealed, die-cast aluminum housing

· UV-resistant, multi-layer, architectural color, powder coat finish

· High impact, heat resistant, tempered lens

Energy Control Options

· Motion detection available

· Photo sensors available

Technical Specifications

Code YASL-10-50 YASL-10-100 YASL-10-110 YASL-10-120 YASL-10-150 YASL-10-180
Power 50W Max 100W Max 110W Max 120W Max 150W Max 180W Max
Color Temperature 3000-6500K 3000-6500K 3000-6500K 3000-6500K 3000-6500K 3000-6500K
Efficiency ＞120LM/W ＞120LM/W ＞120LM/W ＞120LM/W ＞120LM/W ＞120LM/W
Voltage AC90-305V AC90-305V AC90-305V AC90-305V AC90-305V AC90-305V
Power Factor PF≥0.95 PF≥0.95 PF≥0.95 PF≥0.95 PF≥0.95 PF≥0.95
CRI(Ra) Ra≥70 Ra≥70 Ra≥70 Ra≥70 Ra≥70 Ra≥70
Ambient Temperature -40-50℃ -40-50℃ -40-50℃ -40-50℃ -40-50℃ -40-50℃
Ambient Humidity 20%-90%RH 20%-90%RH 20%-90%RH 20%-90%RH 20%-90%RH 20%-90%RH
Lifetime(hrs) 50000h 50000h 50000h 50000h 50000h 50000h
IP Rate IP66 IP66 IP66 IP66 IP66 IP66
Installation Pipe Diameter Φ60mm Φ60mm Φ60mm Φ60mm Φ60mm Φ60mm
Installation Height 6-8m 10-12m 10-12m 12-14m 12-14m 12-14m
Net Weight 3.6kg 4.5kg 4.5kg 6.5kg 7kg 8.5kg
Gross Weight 4.2kg 5kg 5kg 7.0kg 7.5kg 9.0kg
Packing Size(mm) 520*195*290/2pcs 640*280*155 640*280*155 745*330*170 745*330*175 865*360*180

Feature

.Die casting aluminum body with anti-corrosion treatment.

.Highly polished aluminum reflector.

.Toughened glass with good light transmition rate.

.IP65 Rated for external use

.Equipped with LG/CREE LED chip, generate high luminous flux

.LED emiiter brand can be varied according to requirement.

.High efficient and power factor LED power supply.

.Longlife span over 50000 Hours.

.Obtain a 50-70% Energy Saving compared with Halogen Lamps.

Application:

Motorways , Major roads, minor roads, roundabouts, crossings and industrial areas.

Available housing colors: Black, Grey, White.

Note: Additional wattages and configurations available upon request. Specifications are subject to change without notice.
