Waterproof IP 66 Newest LED Street light 30W For Industrial Area with 3 item from 20W to 100W
Waterproof IP 66 Newest LED Street light 30W For Industrial Area with 3 item from 20W to 100W
Waterproof IP 66 Newest LED Street light 30W For Industrial Area with 3 item from 20W to 100W
Waterproof IP 66 Newest LED Street light 30W For Industrial Area with 3 item from 20W to 100W
Waterproof IP 66 Newest LED Street light 30W For Industrial Area with 3 item from 20W to 100W
Waterproof IP 66 Newest LED Street light 30W For Industrial Area with 3 item from 20W to 100W
Waterproof IP 66 Newest LED Street light 30W For Industrial Area with 3 item from 20W to 100W
Waterproof IP 66 Newest LED Street light 30W For Industrial Area with 3 item from 20W to 100W
Waterproof IP 66 Newest LED Street light 30W For Industrial Area with 3 item from 20W to 100W
Waterproof IP 66 Newest LED Street light 30W For Industrial Area with 3 item from 20W to 100W
Waterproof IP 66 Newest LED Street light 30W For Industrial Area with 3 item from 20W to 100W
Waterproof IP 66 Newest LED Street light 30W For Industrial Area with 3 item from 20W to 100W
Specifications
Brand Name :
Die Casting Man
Model Number :
ZHSL-11-30
Certification :
CE
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiation
Payment Terms :
By T/T 30% in advance and 70% after shipment EXW/FOB NINGBO, Western Union, L/C
Supply Ability :
10000PCS/Month.
Delivery Time :
7-30 days base on order quantity
Packaging Details :
Carton box
Manufacturer :
Ninghai Zhouhua Die Casting Co.,Ltd
Material :
ADC12 Aluminum
CRI :
>70
Fixture Color :
Grey
Input Voltage :
AC85 - 265V
Working Ambient Temperature :
-30℃ - 50℃
IP :
65
Lamp Power :
30W
Description

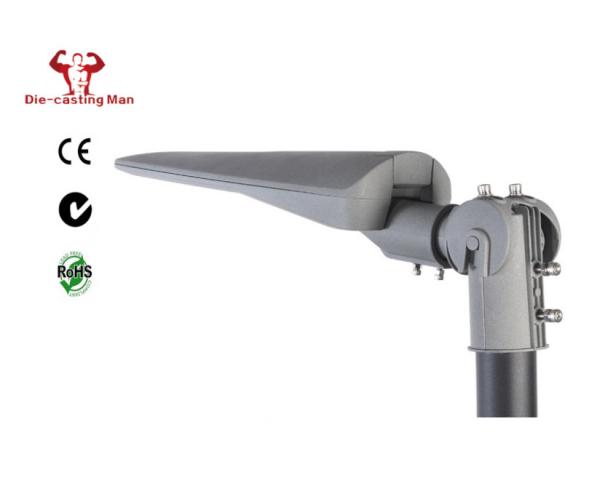

IP 66 Waterproof New Led Street Light Fixtures 30W

Product Specification

Input Voltage: 100-240V 50/60Hz

Max Watt:30W

Power Factor:＞0.95

Beam Angle:150*70°

Material: Die-casting aluminium ADC12

IP Rating:IP 65

Luminous Flux:3300Lm

LED color:2700-7000K (choice)

Color rendering index:Ra＞70

Working Ambient Temperature:﹣35°～50°

Quality Guarantee:5years

with exposed :0.5M H05RN-F 3G1.0m㎡ rubble cable

Driver:INVENTRONICS EUC-035S

Chipsset Brand: 3030

LED quantity:48PCS

Code ZHSL-11-30 ZHSL-11-40 ZHSL-11-50 ZHSL-11-120
Power 40W Max 40W Max 60W Max 120W Max
Color Temperature 3000-6500K 3000-6500K 3000-6500K 3000-6500K
Efficiency ＞120LM/W ＞120LM/W ＞120LM/W ＞120LM/W
Voltage AC100-240V AC100-240V AC100-240V AC100-240V
Power Factor PF≥0.95 PF≥0.95 PF≥0.95 PF≥0.95
CRI(Ra) Ra≥70 Ra≥70 Ra≥70 Ra≥70
Ambient Temperature -40-50℃ -40-50℃ -40-50℃ -40-50℃
Ambient Humidity 20%-90%RH 20%-90%RH 20%-90%RH 20%-90%RH
Lifetime(hrs) 50000 50000 50000 50000
IP IP66 IP66 IP66 IP66
Installation Pipe Diameter Φ50/60mm Φ50/60mm Φ50/60mm Φ60mm
Installation Height 6-8 m 6-8m 8-10m 10-12m
Net Weight 2.5kg 2.5kg 6.0kg 9.0kg
Gross Weight 2.7kg 2.7kg 7.0kg 9.2kg
Packing Size(mm) 600*270*155 600*270*155 680*290*170 795*370*210

Product Size

L(mm) W(mm) H(mm)
ZHSL-11-30 519 220 117
ZHSL-11-40 519 220 117
ZHSL-11-50 590 256 131
ZHSL-11-120 738 320 164

Photometric Data

Waterproof IP 66 Newest LED Street light 30W For Industrial Area with 3 item from 20W to 100W

Waterproof IP 66 Newest LED Street light 30W For Industrial Area with 3 item from 20W to 100W
