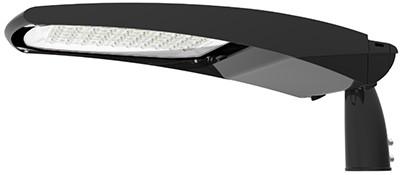

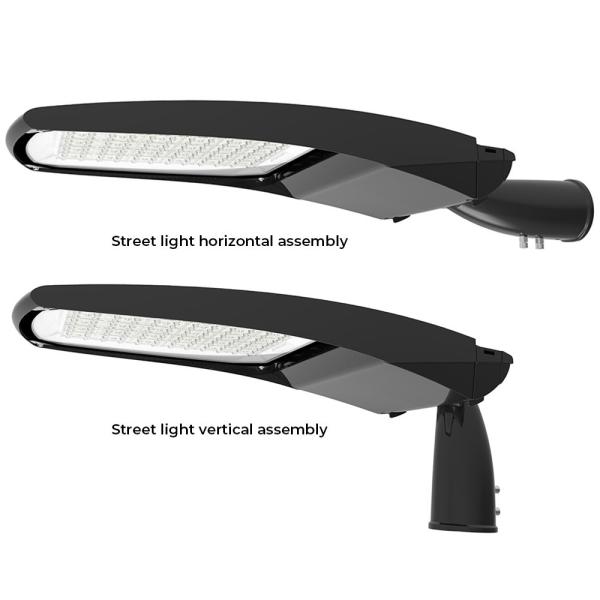

130 - 170lm Smart Outdoor LED Street Lighting Photocell 100W 16500lm Output
130 - 170lm Smart Outdoor LED Street Lighting Photocell 100W 16500lm Output
130 - 170lm Smart Outdoor LED Street Lighting Photocell 100W 16500lm Output
130 - 170lm Smart Outdoor LED Street Lighting Photocell 100W 16500lm Output
Specifications
Brand Name :
Die Casting Man
Model Number :
SL-25-100M
Certification :
CE, RoHs, ENEC, CB
Place of Origin :
Ningbo China
MOQ :
1pc
Price :
Negotiation
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10000pcs/month
Delivery Time :
7-40 days base on order quantity
Packaging Details :
Carton box with styrofoam package
Model :
SL-25-100M
Power :
100Watt
Installation Pipe Diameter :
60mm
CCT :
3000K, 4000K, 6500K
Dimming :
Smart control management system
Driver :
Inventronics,
Description

Smart Outdoor LED Street Lighting 100W 16500lm output 165lm/w high efficiency

Product Series:

型号 Model SL-25-40M SL-25-100M SL-25-150M SL-25-240M
输出功率 Input Wattage (W) 30/40/50/60 80/100/120 150/180/200 240/300
安装杆径 Installation Pipe Diameter φ45/60mm φ45/60mm φ45/60mm φ60/70mm
安装高度 Installation Height (m) 3-8 6-10 8-12 10-14
输入电压 Input Voltage 90~305Vac
频率范围 Frequency Range 50/60Hz
功率因素 Power Factor ≥0.9
光源 Light source LED
电源 Driver Inventronics
Meanwell (optional)
other brand of driver(upon request)
发光效率 Luminaire efficacy (lm/W) 130-170
色温 Color Temperature 4000
显色指数 Color rendering index ≥70
调光方式 Diming Dali (optional)
1-10V (optional)
PWM (optional)
Smart control management system (upon request)
环境温度 The environment temperature -40～45℃
环境湿度 Humidity of Working Condition 20%～90%RH
防护等级 Protectin Grade IP66
IK等级 Protection level IK08
认证Standards & Certifications ENEC
CB
CE
Rohs
可选配件Options Photocell
Surge protection
External cable (length upon request)
Smart control device
材质Meterials Housing: ADC12 die-cast aluminum
Cover: Toughened Glass
External Screws: 304 stainless screws
外观颜色Color Grey/Black ( other upon request)

Product Specification:

Model Product size (mm) Packing size (mm) G.W N.W
L W H L W H (kgs) (kgs)
YSSL-25-40 555 210 143 600 260 165 2.9 3.4
YSSL-25-40M
YSSL-25-100 645 257 147 680 270 160 3.8 4
YSSL-25-100M
YSSL-25-150 790 305 147 820 320 160 5.7 6
YSSL-25-150M
YSSL-25-200 890 361 163 970 370 180 7.2 7.5
YSSL-25-200M

130 - 170lm Smart Outdoor LED Street Lighting Photocell 100W 16500lm Output

Die Casting Man set up a new joint venture company named Ningbo Die Casting Man Energy Co., Ltd.

We are moving into our new big factory on Dajiahe Industrial Zone, Ninghai Town.

Office still available in our old factory No.225 Tanshu Road Ninghai.

130 - 170lm Smart Outdoor LED Street Lighting Photocell 100W 16500lm Output

Dajiahe Factory covers an area of over 90000 square meter which is 100 kilometer from Ningbo Sea port

and 70 kilometer from Ningbo Airport.

It will a complete lighting industrial zone specialized in design, mold making, production, marketing and service.

New company focused on supply illumination and electrical products not only street light and die casting OEM,

but also floodlight, highbay, tunnel light and plant light

130 - 170lm Smart Outdoor LED Street Lighting Photocell 100W 16500lm Output

We are moving all our facilities since beginning of this year and here comes some photos of our factory now.

Till now die casting ejection, CNC machinning, punching and assembling are already on line now.

New painting system will be put into use during this July.

New painting system have auto clearning and pretreatment system which will improve our pretreatment level.

We could make painting level from C3, C4 upto C5 now. This will be very helpful on our finish treatment.

130 - 170lm Smart Outdoor LED Street Lighting Photocell 100W 16500lm Output

Let’s wait and see. We will keep you updated.
