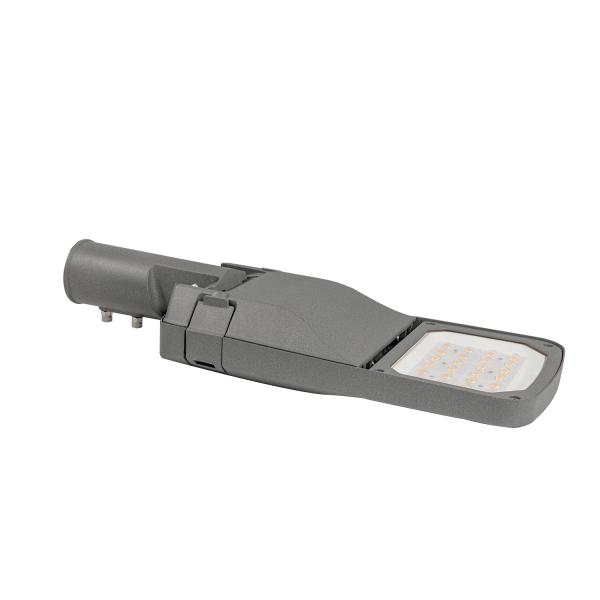

High-performance Street Lighting Available in Four SizesItem NO.: YASL-19Production Description:- The luminaire is manufactured from high pressure die-casting aluminum.Technical Datas:

Product Code

YASL-19-30

YASL-19-50

YASL-19-80

YASL-19-150

Input Wattage

30W

50W

80W

150W

Color Temperature

3000-6500K

3000-6500K

3000-6500K

3000-6500K

Luminous Flux

3300-3750 lm

5500-6250 lm

9200-10400 lm

17250-19500 lm

Input Voltage

AC90-305V

AC90-305V

AC90-305V

AC90-305V

Frequency Range

50/60Hz

50/60Hz

50/60Hz

50/60Hz

Power Factor

PF≥0.95

PF≥0.95

PF≥0.95

PF≥0.95

Color rendering index

Ra≥70

Ra≥70

Ra≥70

Ra≥70

Temperature of Working Condition

-40-50℃

-40-50℃

-40-50℃

-40-50℃

Humidity of Working Condition

20%-90%RH

20%-90%RH

20%-90%RH

20%-90%RH

LEDLifetime

50000h

50000h

50000h

50000h

Protection Grade

IP66

IP66

IP66

IP66

Installation Pipe Diameter

⌀60mm

⌀60mm

⌀60mm

⌀60mm

Installation Height

4-6m

4-6m

6-10m

8-12m

Net Weight

3.0Kg

3.7Kg

6.0Kg

7.4Kg

Gross Weight

3.5Kg

4.2Kg

6.5Kg

8.0Kg

Packing Size(mm)

510×236×150

620×270×155

670×310×155

810×340×155

Photometric Data : lnstalling Ways:Both Horizontal and Vertical available, and adjustable angle-15°to+15°

Why choose us

1.Die-casting Man has more than 21 years experience in manufactuering the outdoor lighting.

2.We have our own die-casting machine,CNC machine,spray line,assembling line.In this way,will be easy to control the quality.

3.And we also have our own tooling shop and develop department,can help customer develop their own products.

FAQ

Q1. What is your terms of payment?
A:Usually,we accept T/T,irrevocable L/C at sight.For regular orders,we prefer 30% in advance,70% against the of B/L.For long term business relations, we have more advantage terms for payment.
Q2. What is your terms of delivery?
A: We accept FOB,CIF,etc. You can choose the one which is the most convenient or cost effective for you.
Q3: What is the lead time?
A:It usually takes 25 to 35 days after sample confirmation and receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. If the item was non standard, we have to consider extra 10-15days for tooling/mould made.
Q4: How about tooling Charge?
A: Tooling charge only charge once when first order, all future orders would not charge again even tooling repair or under maintance.
Q5. What is your sample policy?
A: We are glad to send ip65 led light samples for your inspection.Standard samples can be free, but the clients need to cover the freight cost.
Q6. Can you produce according to the samples or drawings?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q7: How to confirm the quality with us before starting to produce?
1) We can provide ip65 led light samples and you can choose one or more, and then we make the quality according to that. 2) Send us your samples, and we will make it according to your quality.
Q8: How to solve the quality problems after sales?
A: Take photos of the problems and send to us. We will make a satisfied solution for you within three days after we confirm the problems.
Q9. What is your terms of packing?
A: Generally, we pack our goods in neutral cartons. If you have legally registered patent, we can pack the goods by your logo after getting your authorization letters.
Q10. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. We have QC team comply with TQM,each step is in compliance tothe standards.
