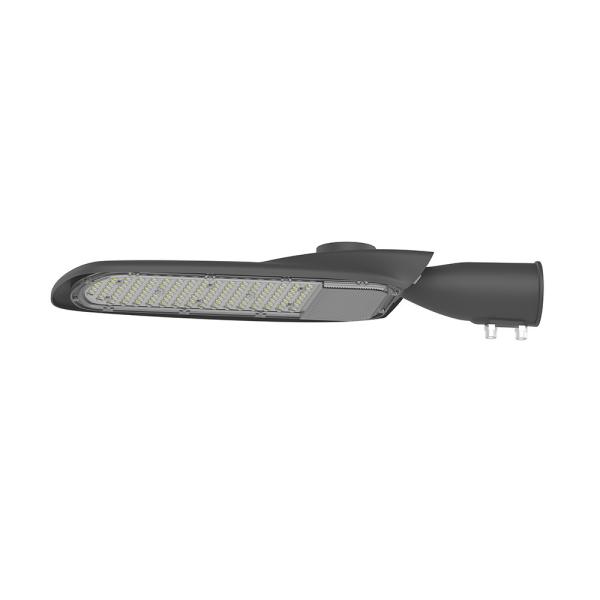

High Quality Outdoor Waterproof Ip66 Urban Lighting Parking Lot Housing 20w 30w 3030 SMD Led Street Light
High Quality Outdoor Waterproof Ip66 Urban Lighting Parking Lot Housing 20w 30w 3030 SMD Led Street Light
High Quality Outdoor Waterproof Ip66 Urban Lighting Parking Lot Housing 20w 30w 3030 SMD Led Street Light
High Quality Outdoor Waterproof Ip66 Urban Lighting Parking Lot Housing 20w 30w 3030 SMD Led Street Light
Specifications
Brand Name :
Die-casting Man
Model Number :
YASL-32-50
Certification :
CE, RoHs, ENEC, CB
Place of Origin :
CHINA
MOQ :
1pc
Price :
Negotiable
Payment Terms :
T/T, 30% T/T as deposit, 70% T/T balance before delivery(EXW) or against shipping documents(FOB Ningbo), L/C
Supply Ability :
30000pcs/month
Delivery Time :
7-10 days based on order QTY
Packaging Details :
1pc/bag/foam/carton, pallet optional
Material :
Die Casting Aluminium
Power :
20/30W
Optical Effect :
110~150 lm/w(Optional)
Working conditions range :
-40～45℃ 20%～90%RH
Power Factor :
PF≥0.95
Input Voltage :
220-240Vac
Protection level :
IK08
Color rendering index :
Ra≥70
Frequency Range :
50/60Hz
Protectin Grade :
IP66
Size :
515x190x135 mm
Description

Product Description:

Economic street light available in three sizes from 30W to 200W.
Nice appearance, simple structure, high reliability.
Enough space in house for small size drivers.

Features:

  • Product Name: LED Street Light Housing
  • Warranty: 3 Years
  • Application:
    • Highway Roads
    • Streets
    • Parking Lots
    • Residential Areas
  • CRI: Ra>70, 80
  • Working Temperature: -40℃~+50℃
  • Beam Angle: 120°
  • Street LED Light Shell
  • Solar Street Lights Outdoor Waterproof
  • IP66 Lora Sensor Waterproof Led Lamp

Product structure:

Bracket installation direction:

Bracket installation direction 180°

High Quality Outdoor Waterproof Ip66 Urban Lighting Parking Lot Housing 20w 30w 3030 SMD Led Street Light

Bracket installation direction 90°

High Quality Outdoor Waterproof Ip66 Urban Lighting Parking Lot Housing 20w 30w 3030 SMD Led Street Light

Bracket installation direction:

Installation Angle-5°~ +15° adjustable

High Quality Outdoor Waterproof Ip66 Urban Lighting Parking Lot Housing 20w 30w 3030 SMD Led Street Light

Installation Angle -5°~ +15° adjustable

High Quality Outdoor Waterproof Ip66 Urban Lighting Parking Lot Housing 20w 30w 3030 SMD Led Street Light

Technical Parameters:

Model SL-32-50 SL-32-100 SL-32-150
Input Wattage (W) 20/30 40/50/60/80 100/120/150
Installation Pipe Diameter φ48mm φ60mm φ60mm
Installation Height (m) 3-8 6-10 8-12
Input Voltage 220-240Vac
Frequency Range 50/60Hz
Power Factor ≥0.9
Light source 2835/3030 LED
LED Quantity *1 72 144 224
Driver integrated
Luminaire efficacy (lm/W) 100-150
Color Temperature 4000K (3000K/5000K/5700K upon request)
Color rendering index ≥70
Diming 无
The environment temperature -40～45℃
Humidity of Working Condition 20%～90%RH
Protectin Grade IP66
Protection level IK08
Standards & Certifications CE
Rohs
Options External lightning protection
External cable (length upon request)
Meterials Housing: ADC12 die-cast aluminum
Cover: Toughened Glass
External Screws: 304 stainless screws
Color Grey/Black ( other upon request)

Die-casting Man YASL-32 LED Street Light Housing is an ideal lighting solution for roadway and street lighting, which is designed and manufactured in Ningbo, China. It is waterproof and dustproof with IP66 grade, featuring high CRI (Ra>70, 80) and excellent color rendering, perfect for a wide range of applications. It is equipped with a Lora sensor, allowing for longer range, greater security and easier operation. The light is powered by 220-240Vac and has an ultra-wide 120° beam angle, providing an even distribution of illumination. The light has a working temperature range of -40℃~+50℃, and the lamp efficiency is up to 150lm/W, making it an energy-efficient choice for roadway and street lighting manufacturers.

Packing and Shipping:

Packaging and Shipping

LED Street Light Housing is shipped in a cardboard box filled with foam to ensure the product arrives in perfect condition. The box is labeled with product information including weight, size, model number, and destination address.

The box is then placed in a larger box that is filled with packing materials such as bubble wrap and Styrofoam peanuts. This additional layer of protection ensures that the product is well protected during transit.

The box is shipped via a reliable courier service and is tracked throughout the entire delivery process.

FAQ:

Q&A about LED Street Light Housing
Q1: What is the brand name of LED Street Light Housing?
A1: The brand name of LED Street Light Housing is Die-casting Man.
Q2: What is the model number of LED Street Light Housing?
A2: The model number of LED Street Light Housing is YASL-28.
Q3: Where is the place of origin of LED Street Light Housing?
A3: The place of origin of LED Street Light Housing is Ningbo, China.
Q4: What is the material of LED Street Light Housing?
A4: The material of LED Street Light Housing is aluminum alloy.
Q5: What is the application of LED Street Light Housing?
A5: LED Street Light Housing is mainly used for outdoor lighting, such as public squares, roads, parks, etc.
