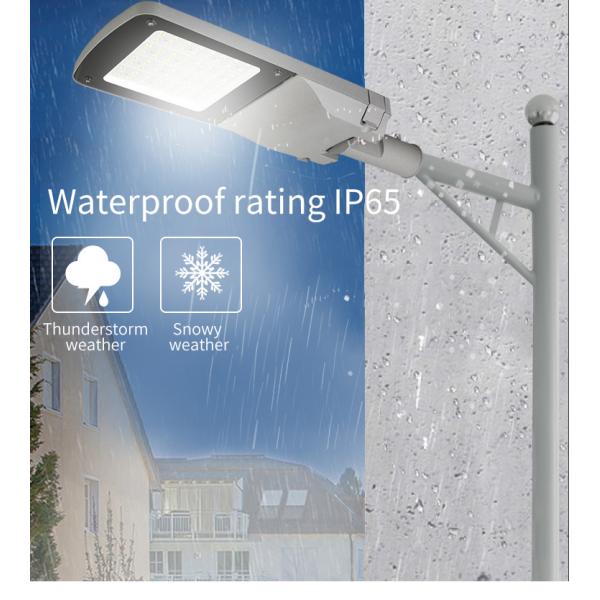

excellent dissipation black color coated Led Street Light Fixtures for Major roads
excellent dissipation black color coated Led Street Light Fixtures for Major roads
excellent dissipation black color coated Led Street Light Fixtures for Major roads
excellent dissipation black color coated Led Street Light Fixtures for Major roads
Specifications
Brand Name :
Die casting man
Model Number :
ZHSL-19-80
Certification :
CE, RoHs, ENEC, CB
Place of Origin :
CHINA
MOQ :
10pcs
Price :
Negotiation
Supply Ability :
10000PCS/Month.
Delivery Time :
7-30 days base on order quantity
Packaging Details :
foam filing/pc
material :
Aluminum
wattage :
100W
IP :
66
CRI :
>70
LED Color :
WW/NW/CW
Input Voltage :
AC85 - 265V
Frequency Range :
50 - 60Hz
Working Ambient Temperature :
-30℃ - 50℃
Working Ambient Humidity :
10% - 90%
IK :
08
Description

80w tempering glass LED street light Middle size ZHSL-19-80 with IP66, IK08

Product Description:

1. With entire aluminium housing structure , the led contact the heatsink closely, optimize heat dissipation.
2. Specially designed for outdoor using , with self-cleaning mechanism lead to less dust and water accumulation ,

reducing maintenance.
3. Tool-free design and disconnector device, enables easy, safe and minimal cost for maintenance.

4. Effcient system aslo to reduce energy consumption and to create a more attractive urban living environment

and visual comforts for public and residential areas.
5. It has a diameter of 70mm standard poles, cover for broader ,IP66 ,anti-17 wind.

Item no. SL-19-80
Rated Power 80W 100W 120W
Luminous Flux: 9600~12000LM 12000~15000LM 14400~18000LM
Input Voltage 90-305VAC, 277-528VAC, DC24V,DC14V,50-60Hz
LED Type Lumileds chip
Color Temperature: 2700k-7000K
Conversion Efficiency: 92%
Power Factor: >0.98
Beam Angle: Type I/ Type II/ Type III/ Type IV
Diffuser: PMMA Lens
IP grade: IP66
Operate Temperature: -20℃~+50℃
Storage Temperature: -20℃~+50℃
Color Rendering Index: >80
Life Span: 50000 hrs
Housing Color: Grey/Black/White/So on
Luminance decrease: Keep lighting 1000hours decrease 1%
Shape: Rectangle
Material: Aluminum + PMMA Lens
Application: urban trunk roads, residential roads and sidewalk lighting, bridge, high way,etc.

Product Code ZHSL-19-30 ZHSL-19-50 ZHSL-19-80 ZHSL-19-150
Input Wattage 30W 50W 80 W 150W
Color Temperature 3000-6500K 3000/4000/6500 3000/4000/6500 3000/4000/6500
Luminous Flux 3300-3750 lm 5500-6250 lm 9200-10400 lm 16500-19500 lm
Input Voltage AC90-305V AC 90-305 V AC 90-305 V AC 90-305 V
Frequency Range 50/60Hz 50/60 Hz 50/60 Hz 50/60 Hz
Power Factor PF≥0.95 PF≥0.95 PF≥0.95 PF≥0.95
color rendering index Ra≥70 Ra≥70 Ra≥70 Ra≥70
Temperature of Working Condition -40-50℃ -40--50℃ -40--50℃ -40--50℃
Humidity of Working Condition 20%-90%RH 20%-90%RH 20%-90%RH 20%-90%RH
LED Lifetime 50000h 50000 h 50000 h 50000 h
Protectin Grade IP66 IP 66 IP 66 IP 66
Installation Pipe Diameter φ60mm φ60 mm φ60 mm φ70 mm
Installation Height 4-6m 4-6 m 5-8 m 10-12 m
Net Weight 3 kgs 3.5 kgs 5 kgs 6.4 kgs
Gross Weight 3.5 kgs 4 kgs 6 kgs 7.4 kgs
Packing Size 51*23.6*15 cm 63*28*15.5 cm 67*31*16 cm 82.5834*16 cm

Applications:

Motorways,Major roads,minor roads,roundabouts,crossing and industrial areas.

excellent dissipation black color coated Led Street Light Fixtures for Major roads

excellent dissipation black color coated Led Street Light Fixtures for Major roads

Why choose us

1.Die-casting Man has more than 21 years experience in manufactuering the outdoor lighting.

2.We have our own die-casting machine,CNC machine,spray line,assembling line.In this way,will be easy to control the quality.

3.And we also have our own tooling shop and develop department,can help customer develop their own products.

FAQ

Q1. What is your sample policy?
A: We are glad to send ip65 led light samples for your inspection.Standard samples can be free, but the clients need to cover the freight cost.

Q2. Can you produce according to the samples or drawings?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q3: How to confirm the quality with us before starting to produce?
1) We can provide ip65 led light samples and you can choose one or more, and then we make the quality according to that. 2) Send us your samples, and we will make it according to your quality.

Q4: How to solve the quality problems after sales?
A: Take photos of the problems and send to us. We will make a satisfied solution for you within three days after we confirm the problems.
