6500k 60mm Pipe Dia 5500lm 60w die casting housing alloy led aluminium adc12
6500k 60mm Pipe Dia 5500lm 60w die casting housing alloy led aluminium adc12
6500k 60mm Pipe Dia 5500lm 60w die casting housing alloy led aluminium adc12
6500k 60mm Pipe Dia 5500lm 60w die casting housing alloy led aluminium adc12
Specifications
Brand Name :
Die Casting Man
Model Number :
YASL-19-50
Certification :
CE, RoHs, ENEC, CB
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiation
Payment Terms :
By T/T 30% in advance and 70% after shipment EXW/FOB NINGBO, Western Union, L/C
Supply Ability :
10000PCS/Month.
Delivery Time :
7-30 days base on order quantity
Packaging Details :
Carton box
Wattage :
50w
Material :
ADC12 Aluminum
Color Temeperature :
3000-6500k
Input Voltage :
AC90 - 305V
Pipe Diameter :
Φ 60MM
Luminous Flux :
5500-6250lm
Description

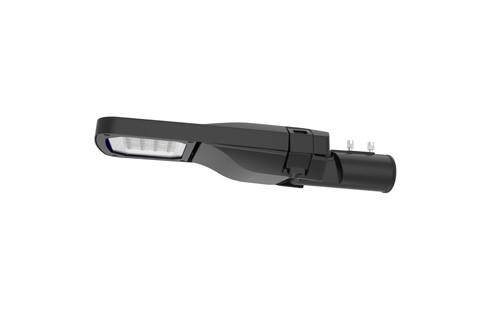

YASL-19-50 50W ALUMINIUM OUTDOOR LED STREET LIGHT HOUSING IP66 IK08

Product Description

* YASL-19 family is a high-performance street light available in three size

* Product Size:577*233*103mm

* Finish:power coating color :double grey, white, black

Product Specification

* Item No.:YASL-19-50

* Input Wattage:50W

* NW/GW:3.7/4.2kgs

* Packing Size:62*27*15.5cm

ZHSL-19 Family Product Specification

Product Code ZHSL-19-50 ZHSL-19-80 ZHSL-19-150
Input Wattage 50W 80W 150W
Color Temperature 3000-6500K 3000-6500K 3000-6500K
Luminous Flux 5500-6250lm 9200-10400lm 17250-19500lm
Input Voltage AC90-305V AC90-305V AC90-305V
Frequency Range 50/60Hz 50/60Hz 50/60Hz
Power Factor PF≥0.95 PF≥0.95 PF≥0.95
Color rendering index Ra≥70 Ra≥70 Ra≥70
Temperature of working condition -40-50℃ -40-50℃ -40-50℃
Humidity of working condition 20%-90%RH 20%-90%RH 20%-90%RH
LED Lifetime 50000h 50000h 50000h
Protection Grade IP66 IP66 IP66
Installation Pipe Diameter Φ60mm Φ60mm Φ60mm
Installation Height 4-6m 6-10m 8-12m
Net Weight 3.7kgs 6.2kgs 7.4kgs
Gross Weight 4.2kgs 6.5kgs 8.0kgs
Packing Size(mm) 620*270*155 670*310*155 810*340*155
Product Size(mm) 577*233*103 627*271*103 768*301*104

6500k 60mm Pipe Dia 5500lm 60w die casting housing alloy led aluminium adc12

Product Picture

Line Drawing

6500k 60mm Pipe Dia 5500lm 60w die casting housing alloy led aluminium adc12

Equipment

6500k 60mm Pipe Dia 5500lm 60w die casting housing alloy led aluminium adc12

6500k 60mm Pipe Dia 5500lm 60w die casting housing alloy led aluminium adc12

FAQ:

A: Are manufacturing work instructions available at working area?

B: yes.our technical department will make a instruction for all of our models. and it will stick on the machines when they produce the model.

A:can we change the hole position in housing?

B: of course you can.

A:can we watch the painting workshop?

B:due to the time is 7pm in China.the workers got off work.we will show you next time. please pay attention to our Live.

A: let us introduce the painting workshop simply?

B: sure...

A: what are the procedures of painting will we do?

B: we will polish the die casting part firstly. remove the burrs and make the surface smoothly. then keep the parts in oven for 15minutes under 185 degree to make it solidify. then the workers will spray powder on it and hung it on spray line.

A: what colors can we choose?

B: gray.black and silver is our regular color. you can choose any other color.but there might have MOQ requirement.

Why choose us

1. Die-casting Man has more than 21 years experience in manufactuering the outdoor lighting.

2. We have our own die-casting machine,CNC machine,spray line,assembling line.In this way,will be easy to control the quality.

3. And we also have our own tooling shop and develop department,can help customer develop their own products.
