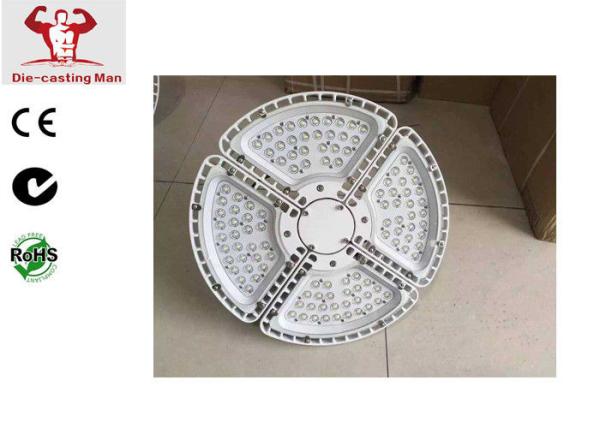

Outdoor Area Lighting Led Outdoor Garden Lights,150W / 300W / 540W.
Outdoor Area Lighting Led Outdoor Garden Lights,150W / 300W / 540W.
Outdoor Area Lighting Led Outdoor Garden Lights,150W / 300W / 540W.
Outdoor Area Lighting Led Outdoor Garden Lights,150W / 300W / 540W.
Outdoor Area Lighting Led Outdoor Garden Lights,150W / 300W / 540W.
Outdoor Area Lighting Led Outdoor Garden Lights,150W / 300W / 540W.
Specifications
Brand Name :
Die Casting Man/OEM
Model Number :
ZHHB-03C
Certification :
CE,ROHS, UL,SAA
Place of Origin :
CHINA
MOQ :
10PCS
Price :
Negotiation
Payment Terms :
By T/T 30% in advance and 70% after shipment EXW/FOB NINGBO, Western Union, L/C
Supply Ability :
10000PCS/Month
Delivery Time :
7-30 days base on order quantity
Packaging Details :
Carton box with foam
Description


Outdoor Area Lighting Led Outdoor Garden Lights,150W / 300W / 540W.Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: Negotiation
Packaging Details: Carton box
Delivery Time: 7-30 days base on order quantity
Payment Terms: By T/T 30% in advance and 70% after shipment EXW/FOB NINGBO, Western Union, L/C
Supply Ability:

10000PCS/Month.

LED Engine Module

· LED life time of 30,000+ hours

· High power integrated packaging LED chips, 120° beam spread available

· Minimum CRI of 70, custom CRI available

· Operating temp: -30º C to +60º C

· No toxic chemicals / ROHS compliant

· Low Tj for long life, low lumen depreciation

· CE certified, meets ROHS standards

· Eligible for Rebates, Design Lights Consortium® Qualified*

· 50-80% energy savings

· Manufactured in the China

· Standard distribution is Type V, others distributions available
Electrical

· Standard AC input of 85-265v VAC, up to 480v available

· EMI filter: 47CFR, part 2, part 15

· Power factor: >0.9

· Total harmonic distortion: <20%

· Surge protection: IEC/EN 61000-4-5 EMC test standard

· Licensed electrician required for installation
Housing

· Rugged, fully sealed, die-cast aluminum housing

· UV-resistant, multi-layer, architectural color, powder coat finish

· High impact, heat resistant, tempered lens
Energy Control Options

· Motion detection available

· Photo sensors available

Product Specification

Item No ZHHB-03-150 ZHHB-03-300 ZHHB-03-540
LED Quantity 56pcs 96pcs 144pcs
Rated Power 100W 200W 360W
Standard Color Temperature 2700-5500K 2700-5500K 2700-5500K
Luminous Flux 13500Lm(5500k) 27000Lm(5500k) 45900Lm(5500k)
Input Voltage AC100-270V AC100-270V AC100-270V
Frequency Range 50/60Hz 50/60Hz 50/60Hz
Power Factor PF>0.9 PF>0.9 PF>0.9
Color rendering index 70-80Ra 70-80Ra 70-80Ra
Tmpreturoe of Working Condition -35℃-50℃ -35℃-50℃ -35℃-50℃
LED Life time 50000h 50000h 50000h
Humidity of Working condition 10%-90% 10%-90% 10%-90%
Protaction Grade Ip65 Ip65 Ip65
Net Weight 5.5kg 6.9kg 11.5kg
Gross Weight 7.5kg 9.2kg 14.5kg
Packing Size 525*525*370 635*635*370 740*740*370

Outdoor Area Lighting Led Outdoor Garden Lights,150W / 300W / 540W.
