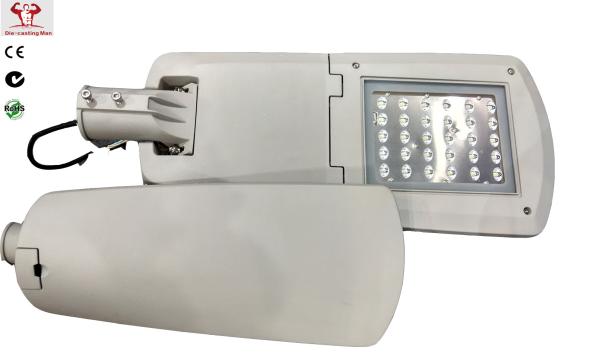

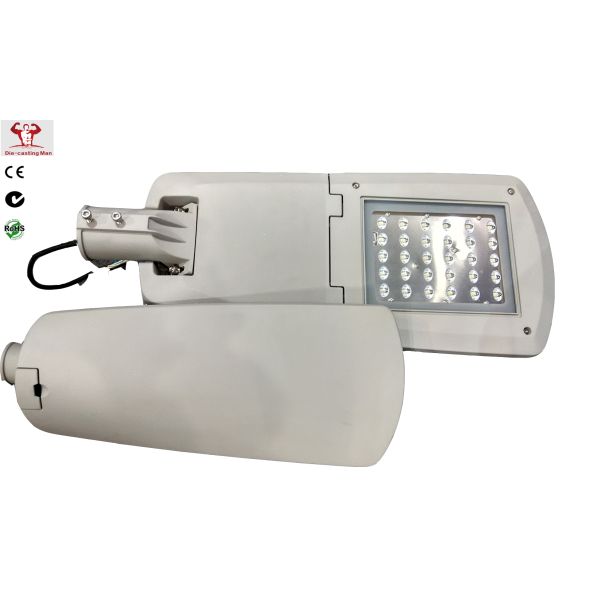

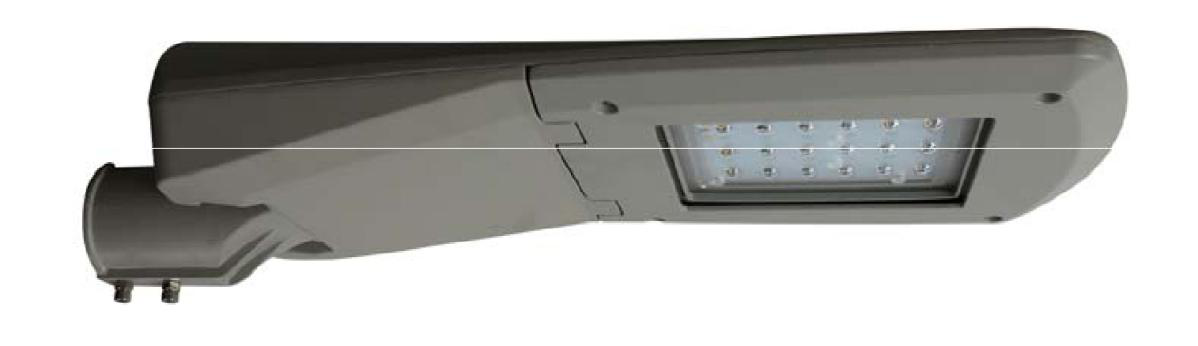

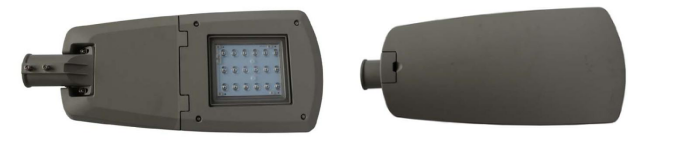

30w 60w 120w Led Street Light Fixtures SMD IP65 Energy Saving
30w 60w 120w Led Street Light Fixtures SMD IP65 Energy Saving
Specifications
Brand Name :
Die casting man
Model Number :
ZHSL-11
Certification :
CE
Place of Origin :
CHINA
MOQ :
10pc
Price :
Negotiation
Supply Ability :
10000Pcs/Month
Delivery Time :
7-30 work days
Packaging Details :
1pc/polybag/foam/carton
Description

LED Street Light ZHSL-11 Series Specification

Description:

30w 60w 120w Led Street Light Fixtures SMD IP65 Energy Saving30w 60w 120w Led Street Light Fixtures SMD IP65 Energy Saving30w 60w 120w Led Street Light Fixtures SMD IP65 Energy Saving30w 60w 120w Led Street Light Fixtures SMD IP65 Energy Saving

High intensity die-casting aluminum body,impact grade reaches IK09.

Tempered glass with 94% light transmittance ensures lamp reaches IK08.

Modular optical lens design,easy to improve in future.

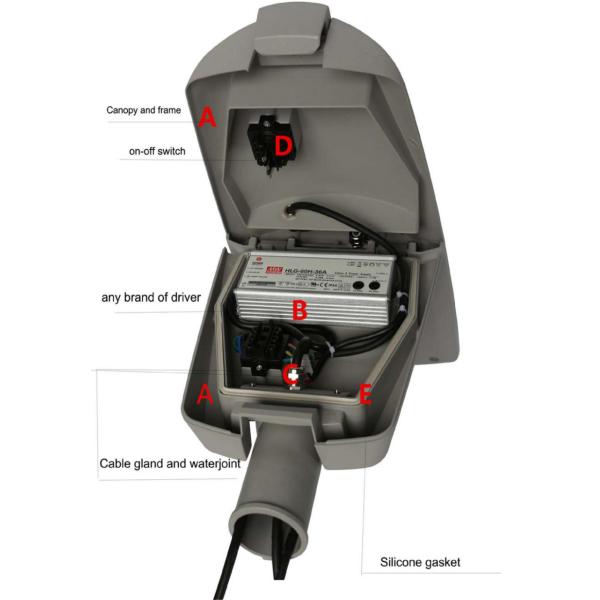

Chip on board design makes lamps easy to install.maintain and replace.

Detechable design,use fast turn off power protecter makes lamp convenience.

With surge protector lamp can reaches Class I I(10KV)or Class II II(5-9KV)

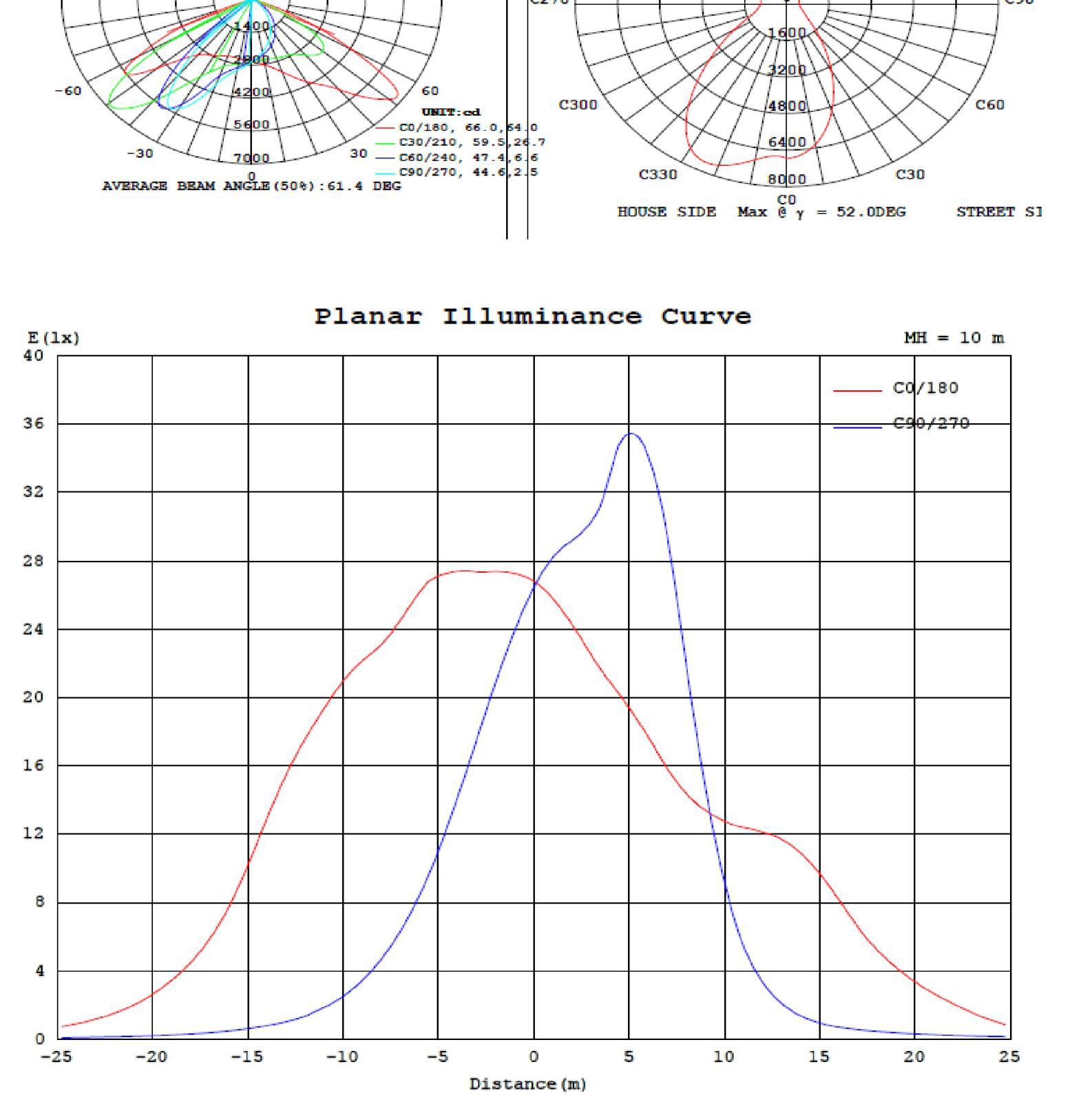

Graph - Meridian plane light distribution Curve(ZHSL-11-50)

30w 60w 120w Led Street Light Fixtures SMD IP65 Energy Saving

Spercification:

Item NO. ZHSL-11-30 ZHSL-11-50 ZHSL-11-120
Electric current 800mA 1500mA 2500mA
LED Quantity 24pcs 30pcs 60pcs
Rated Power 30W 60W 120W
Color Temperature 3000K/4000K/6500K 3000K/4000K/6500K 3000K/4000K/6500K
Initial Luminous Flux 3600LM 7200LM 14400LM
Input Voltage AC85-265V AC85-265V AC85-265V
Frequency Range 50-60Hz 50-60Hz 50-60Hz
Power Factor PF>0.9 PF>0.9 PF>0.9
Color Rendering Index Ra>70-80 Ra>70-80 Ra>70-80
Temperature Working Condition -35℃ - 50℃ -35℃ - 50℃ -35℃ - 50℃
Humidity of Working Condition 20-90% 20-90% 20-90%
LED Lifetime 50000h 50000h 50000h
Protection Grade IP67 IP67 IP67
Installation Pipe Diameter Φ50-60mm Φ50-60mm Φ50-60mm
Installation Height 10-12m 10-12m 10-12m
Packing size 565*265*161.4 mm 635*175*305 mm 795*210*365 mm
