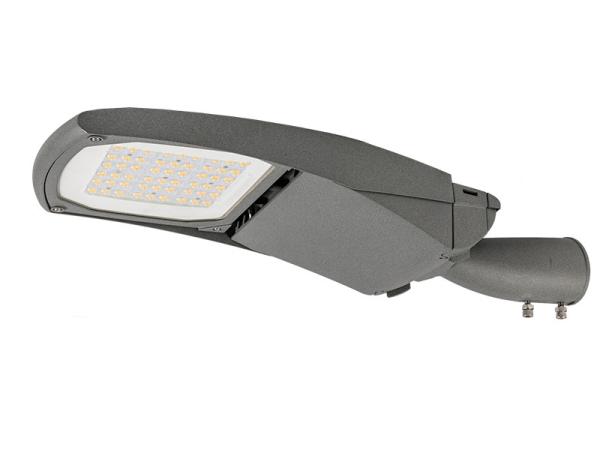

Smart LED Street Light Fixtures Die Casting Aluminum 100W 160lm/W
Smart LED Street Light Fixtures Die Casting Aluminum 100W 160lm/W
Smart LED Street Light Fixtures Die Casting Aluminum 100W 160lm/W
Smart LED Street Light Fixtures Die Casting Aluminum 100W 160lm/W
Specifications
Brand Name :
Die Casting Man
Model Number :
SL-25-100
Certification :
CE, RoHs, ENEC, CB
Place of Origin :
Ningbo China
MOQ :
1pc
Price :
Negotiation
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10000pcs/month
Delivery Time :
7-40 days base on order quantity
Packaging Details :
Carton box with styrofoam package
Model :
SL-25-100
Power :
60w 80w 100w
LED Lifetime :
50000h / Luxon 5050
CCT :
3000K, 4000K, 5700K, 6500K
Luminous Flux :
19500-22500lm
Warranty :
5 years
Description

Smart Outdoor LED Street Lighting 100W 16500lm output 165lm/w high efficiency

Product Specification

Product Code YASL-25-100
Input Wattage 60W 100W
Installation Pipe Diameter φ45/60mm
Luminous Flux 7800-9000lm 13000-15000lm
Color Temperature 2700～6500K
Input Voltage AC90～305V
Frequency Range 50/60Hz
Power Factor PF≥0.95
color rendering index Ra≥70
Temperature of Working Condition -40～50℃
Humidity of Working Condition 20%～90%RH
LED Lifetime 50000h
Protectin Grade IP66
Protection level IK08/09/10
Installation Height 4-8m 6-10m
Net Weight 3.8kgs 3.8kgs
Gross Weight 4.0kgs 4.0kgs
Packing Size(mm) 680*270*160


LED Street Light YASL-25

Product Description

This series is a high-performance street lighting available in three sizes.

The lunimaire is manufactured from high pressure die-casting aluminum.

lt shall have a led efficiency up to 130 lm/w and will be capable of producing.

Up to 26000 luminaire lumens at 4000K finished in Grey or black as standard.

Smart LED Street Light Fixtures Die Casting Aluminum 100W 160lm/W

Photometric

DH-T1 DH-T3-M DH-T4-M DY-T3-M GY-T2-M01 GX-T2-M GX-T4-L HX-T2-S
DH-T2-L DH-T3-MA DH-T5-M GY-T1-M GY-T3-M01 GX-T3-M HY-T2-M HX-T2-M
DH-T2-M DH-T3-MB DY-T2-M GY-T2-M GX-T2-S GX-T4-M HY-T3-M HX-T3-M

Product Size

Product Code YASL-25-100M
L(mm) 645
W(mm) 257
H(mm) 147

Company Profile:

Die Casting Man set up a new joint venture company named Ningbo Die Casting Man Energy Co., Ltd.

We are moving into our new big factory on Dajiahe Industrial Zone, Ninghai Town.

Office still available in our old factory No.225 Tanshu Road Ninghai.

Smart LED Street Light Fixtures Die Casting Aluminum 100W 160lm/W

Dajiahe Factory covers an area of over 90000 square meter which is 100 kilometer from Ningbo Sea port

and 70 kilometer from Ningbo Airport.

It will a complete lighting industrial zone specialized in design, mold making, production, marketing and service.

New company focused on supply illumination and electrical products not only street light and die casting OEM,

but also floodlight, highbay, tunnel light and plant light

Smart LED Street Light Fixtures Die Casting Aluminum 100W 160lm/W

We are moving all our facilities since beginning of this year and here comes some photos of our factory now.

Till now die casting ejection, CNC machinning, punching and assembling are already on line now.

New painting system will be put into use during this July.

New painting system have auto clearning and pretreatment system which will improve our pretreatment level.

We could make painting level from C3, C4 upto C5 now. This will be very helpful on our finish treatment.

Smart LED Street Light Fixtures Die Casting Aluminum 100W 160lm/W

Things you should know about the buying skills of high-power LED lights
1. Look at the overall "power factor of lamps": a low power factor means that the driving power supply and circuit design used are not good, which will greatly reduce the service life of the lamps. The power factor is low, and the lamp life of the lamps will not be long. .

2. Look at "lamp heat dissipation conditions - material and structure": heat dissipation of high-power lamps is also very important. Lamps with the same power factor and lamp beads of the same quality, if the heat dissipation conditions are not good, the lamp beads work at high temperatures, and the light decay will occur. Very large, the lamp life will be reduced.

Various color effects

3. Look at the light effect: the same lamp bead power, the higher the light effect, the higher the brightness, the same lighting brightness, the lower the power consumption, the more energy-saving.

4 Look at the power efficiency. The higher the power efficiency, the better. The higher the power, the smaller the power consumption of the power supply itself, and the greater the output power.
