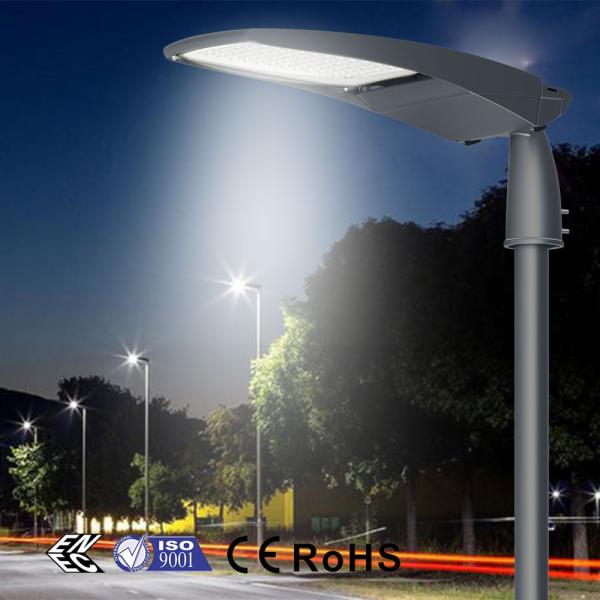

SKD Die Casting Housing 30W - 200W Outdoor LED Street Lights With Optics Types
SKD Die Casting Housing 30W - 200W Outdoor LED Street Lights With Optics Types
SKD Die Casting Housing 30W - 200W Outdoor LED Street Lights With Optics Types
SKD Die Casting Housing 30W - 200W Outdoor LED Street Lights With Optics Types
Specifications
Brand Name :
Die casting man
Model Number :
SL-25-100M
Certification :
CE, RoHs, ENEC, CB
Place of Origin :
China
MOQ :
5pcs
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1000PCS/Month.
Delivery Time :
35days after deposit
Packaging Details :
foam filing/pc
Input wattage :
80/90/100W
Efficiency :
>150lm/w
IP :
66
IK :
08
Packing details :
with strofoam package
Color :
Grey/Black ( other upon request)
Description

new street light SL-25 series

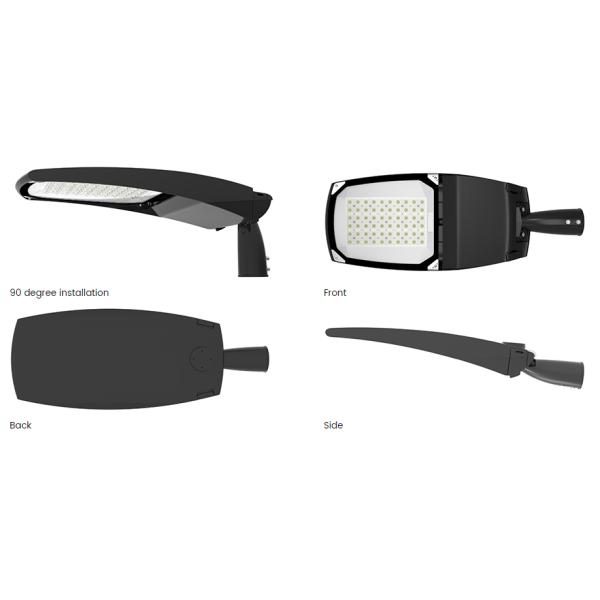

Product size

Item NO. Wattage Product Size Operating Voltage Main Material Protection Grade
SL-25-40M 80W 645*257*147mm AC85-265V Die Cast Aluminum IP65
100W
SL-25-100M 120W 790*305*147mm
150W
180W
200W
SL-25-240M 250W 890*361*163mm
300W
350W
Product Code YASL-25-40M YASL-25-100M YASL-25-150M YASL-25-240M
Input Wattage 30W 40W 50W 60W 100W 120W 150W 200W 240W
Installation Pipe Diameter φ45/60mm φ45/60mm φ45/60mm φ45/60/76mm
Luminous Flux 3900-4500lm 5200-6000 6500-7500lm 7800-9000lm 13000-15000lm 15600-18000lm 19500-22500lm 26000-30000lm 31200-36000lm
Color Temperature 2700~6500K
Input Voltage AC90~305V
Frequency Range 50/60Hz
Power Factor PF≥0.95
color rendering index Ra≥70
Temperature of Working Condition -40~50ºC
Humidity of Working Condition 20%~90%RH
LED Lifetime 50000h
Protectin Grade IP66
Protection level IK08/09/10
Installation Height 3-6m 3-6m 4-6m 4-8m 6-10m 8-12m 8-12m 10-14m 10-14m
Net Weight 2.9kgs 2.9kgs 2.9kgs 3.8kgs 3.8kgs 5.7kgs 5.7kgs 7.2kgs 7.2kgs
Gross Weight 3.4kgs 3.4kgs 3.4kgs 4.0kgs 4.0kgs 6.0kgs 6.0kgs 7.5kgs 7.5kgs
Packing Size(m m) 600*260*165 680*270*160 820*320*160 920*370*180

MAJOR BENEFITS

Extremely long lifetime

Best system efficiency

Connectivity with lighting management and control systems

Optimized energy savings with optimum return on investment

Multiple types of optics provide visual comfort for all road users

Ideal solution for different road configurations

Advantages

1.Patent private mould, integrated die-casting AL.

2.High efficiency, 120lm/w-160lm/w available.

3.Professional glare-free- lens,type2/type3/type4/60°/90°available.

4.0-10V dimming/time control/light sensor/IOT control available.

5.Specilized aluminum sheet design, glue.free for glass fixation.

6.Ingradenter design: easy for harizontal installation.

7.Snap-on type driver housing, tool-free disassembly.

8.Bat wing light shape.

9.Various applications:street light, shoe box light. projector,etc.

10.IP66

ENEC/CB certifications

These certifications, which currently constitute the most important and strict product certification schemes,

ensure compliance with European requirements regarding product quality and electrical safety.

ENEC SCHEME

The ENEC (European Norms Electrical Certifications) certification scheme has high prestige within the global electrical field as a complement to the CE marking in terms of electrical safety and manufacturing quality. This is a complete product certification scheme in accordance with ISO / IEC 17067, originally developed within the CENELEC, European Committee for Electrotechnical Standardization, responsible for European standardization in the areas of electrical engineering, and operating under the authority of the European association of certification of electrical products.
