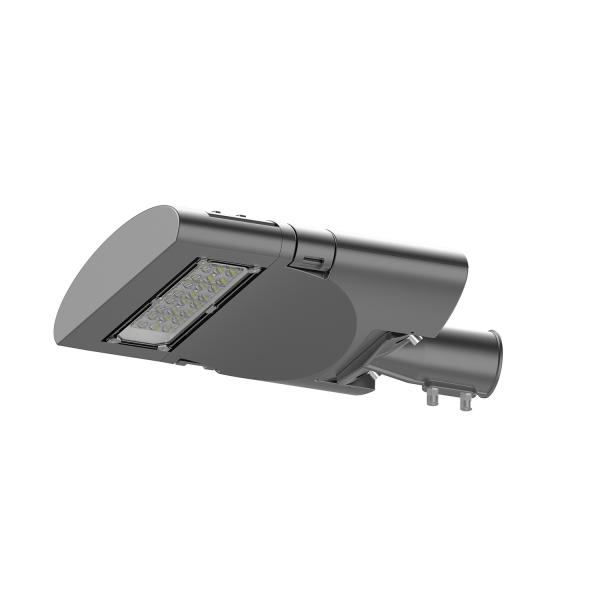

OEM 50W Sreet One Moudle Aluminium Led Light For Park Pole Lights
OEM 50W Sreet One Moudle Aluminium Led Light For Park Pole Lights
OEM 50W Sreet One Moudle Aluminium Led Light For Park Pole Lights
OEM 50W Sreet One Moudle Aluminium Led Light For Park Pole Lights
Specifications
Brand Name :
Die Casting Man
Model Number :
SL-26-50
Certification :
CE, RoHs, ENEC, CB
Place of Origin :
NINGBO,CHINA
MOQ :
5pcs
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
10000PCS/Month
Delivery Time :
7-30days
Packaging Details :
styrofoam package and carton box
Model :
SL-26-50
Installation Pipe Diameter :
φ60mm
Product Size :
449*360*152mm
LED :
Lumileds 3030 or 5050
Color Temperature :
2700K 3000k 400k 5700k
Description

Module Street Light SL-26

Products Description
Model
Installation Pipe Diameter
Product Size(mm)
L
W
H
YSSL-26-50
Φ60
449
360
152
YSSL-26-100
Φ60
529
360
152
YSSL-26-150
Φ60
609
360
152
YSSL-26-200
Φ60
689
360
152
YSSL-26-250
Φ60
769
360
152
YSSL-26-300
Φ60
849
360
152
Materials
Housing:ADC12;Cover:Toughened Glass；Screws:304stainless screws
Color
Other colors can be customized according to the international color card
Led brand
LUMILEDS,OSRAM,CREE option
Led Specifications
3030,5050 option
Optical effect
130～140 lm/w,140～150 lm/w,150～160 lm/w,160～170 lm/w,170～180 lm/w,170～180 lm/w option
Color Temperature
2700K,3000K,3500K,4000K,5000K,5700K,6500K option(Reference:Energy Star)
color rendering index
Ra≥70；Ra≥80；Ra≥90 option
Optics
TYPEI,TYPEII,TYPEIII,TYPEV,TYPEIV option
Driver brand
/OSRAM/TRIDONIC/MEAN WELL/SOSEN/INVENTRONICS
Input Voltage
AC90～305V
Security level
ClassI/ClassII/Class1/Class2 option
Frequency Range
43～63Hz
Power Factor
PF≥0.95
Working conditions Range
-30 to 45℃,20% to 90%RH
Dimming mode
Time control/0-10V/ Opticalcontrol/DALI option
Lightning protection
10KV/15KV/20KV option
Warranty
5/8 year option
Protection
Overcurrent/Short circuit/Over temperature
Protection level
IP66;IK08/09/10
Certifications
ENEC;CE;CB;IEC;RoHs;TUV;Lightning protection;LM-79;LM-80;IP66

Installing Ways: Both Horizontal and Vertical available and adjustable angle-15°to 15°

Material:Die casting Aluminum body
Advantages
Standard modular street lamps Optional Glass Module and PC lens module Adjustable Mounting Direction and angle ± 15 ° Tool-free
detachable construction Top ventilation dust-proof net design Optical effect:130～190 lm/W Optional horizontal installation

FAQ

Q1. What is your terms of payment?
A:Usually,we accept T/T,irrevocable L/C at sight.For regular orders,we prefer 30% in advance,70% against the of B/L.For long term business relations, we have more advantage terms for payment.

Q2. What is your terms of delivery?
A: We accept FOB,CIF,etc. You can choose the one which is the most convenient or cost effective for you.

Q3: What is the lead time?
A:It usually takes 25 to 35 days after sample confirmation and receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. If the item was non standard, we have to consider extra 10-15days for tooling/mould made.

Q4: How about tooling Charge?
A: Tooling charge only charge once when first order, all future orders would not charge again even tooling repair or under maintance.

Q5. What is your sample policy?
A: We are glad to send ip65 led light samples for your inspection.Standard samples can be free, but the clients need to cover the freight cost.
