New stype nice shape led street light Nema Zhaga led street light die casting aluminium
New stype nice shape led street light Nema Zhaga led street light die casting aluminium
New stype nice shape led street light Nema Zhaga led street light die casting aluminium
New stype nice shape led street light Nema Zhaga led street light die casting aluminium
Specifications
Brand Name :
Die Casting Man
Model Number :
SL-25-240
Certification :
CE, RoHs, ENEC, CB
Place of Origin :
Ningbo China
MOQ :
1pc
Price :
Negotiation
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10000pcs/month
Delivery Time :
7-40 days base on order quantity
Packaging Details :
Carton box with styrofoam package
Item No. :
SL-25-240
Power :
250W
Material :
die casting Aluminum body + tempered glass
Efficiency :
140lm/w
led chip :
3030, 5050
IP Grade :
IP66
Description

140lm/w new style led street light fixtures with famous brand led chip and driver

Product Specification:

Product Code YASL-25-240M
Input Wattage 240W
Installation Pipe Diameter φ45/60mm
Luminous Flux 31200-36000lm
Color Temperature 2700～6500K
Input Voltage AC90～305V
Frequency Range 50/60Hz
Power Factor PF≥0.95
color rendering index Ra≥70
Temperature of Working Condition -40～50℃
Humidity of Working Condition 20%～90%RH
LED Lifetime 50000h
Protectin Grade IP66
Protection level IK08/09/10
Installation Height 4-8m
Net Weight 3.8kgs
Gross Weight 4.0kgs
Packing Size(m m) 680*270*160

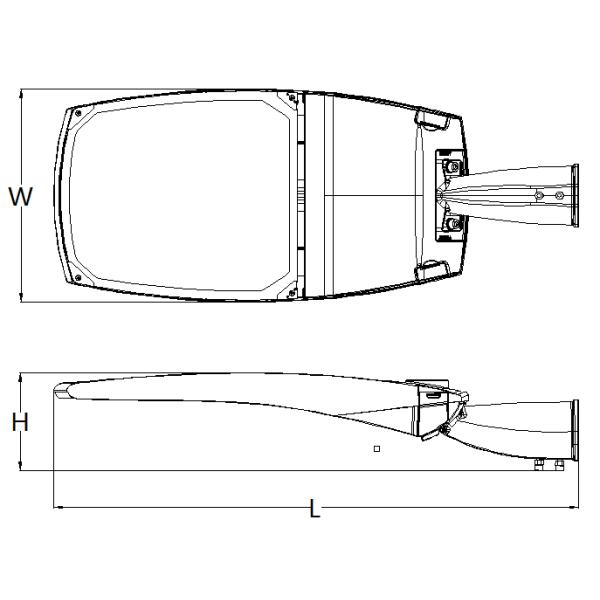

Product Size

Product Code YASL-25-100 YASL-25-150 YASL-25-240
L(mm) 645 790 890
W(mm) 257 305 361
H(mm) 147 147 163

New stype nice shape led street light Nema Zhaga led street light die casting aluminium

This series is a high-performance street lighting available in three sizes.
The lunimaire is manufactured from high pressure die-casting aluminum.
lt shall have a led efficiency up to 130 lm/w and will be capable of producing.
up to 26000 luminaire lumens at 4000K finished in Grey or black as standard.
lnstalling Ways:
Both Horizontal and Vertical available
and adjustable angle-15°to+15°
  • Luminaire made of die-cast aluminum, closed by tempered glass in order to ensure the IP and protect the characteristics of lenses used.
  • Access to electrical components without need of special tools, pressing locking system, which facilitates maintenance. Hidden hinge system.
  • Post top or side entry Ø 60 mm with the possibility of adjusting the inclination. Other fixing needs please
  • consult.
  • Luminaire Class I. Optional Class II
  • Luminaire IP66, IK09
  • LED version available from 20W to 260W.
  • Finished in any RAL color.
  • Characteristics of the optical group:
  • High performance inner aluminium heatsink
  • Number of LED 16-24-32-48-60-80- 96-112
  • Lenses Integrated with several asymmetric or symmetric distributions available according to the project needs.
  • Luminaire efficacy from 100 to 140lm/W .
  • Our advantage

  • 1. Good supply chain management . We have build a good relationship with many international brand ( Bridgelux , San’an , , Osram , Meanwell , , etc). That will help us get high quality led chip, led driver, lens on time.

    2. Professional staffs. We have more than 100 staffs.The workers are skilled.They know the products very well from a screw to the whole product. They know the key point during production process and how to deal with if there is a problem.

    3. Advanced equipments. We have many advanced equipments. That will make sure that our products are produced in high standard and strict process.

    Application

    It is suitable for the street lighting at highways, urban roads and secondary roads, stadiums, sidewalks, residential areas, industrial areas, squares, parks, schools, villas, gardens and other places.

New stype nice shape led street light Nema Zhaga led street light die casting aluminium
