Outdoor Sensor Post Top 50w Wifi Smart Led Lights 220v die-castinting aluminum IP66 waterproof grade light housing new
Outdoor Sensor Post Top 50w Wifi Smart Led Lights 220v die-castinting aluminum IP66 waterproof grade light housing new
Outdoor Sensor Post Top 50w Wifi Smart Led Lights 220v die-castinting aluminum IP66 waterproof grade light housing new
Outdoor Sensor Post Top 50w Wifi Smart Led Lights 220v die-castinting aluminum IP66 waterproof grade light housing new
Outdoor Sensor Post Top 50w Wifi Smart Led Lights 220v die-castinting aluminum IP66 waterproof grade light housing new
Outdoor Sensor Post Top 50w Wifi Smart Led Lights 220v die-castinting aluminum IP66 waterproof grade light housing new
Outdoor Sensor Post Top 50w Wifi Smart Led Lights 220v die-castinting aluminum IP66 waterproof grade light housing new
Outdoor Sensor Post Top 50w Wifi Smart Led Lights 220v die-castinting aluminum IP66 waterproof grade light housing new
Outdoor Sensor Post Top 50w Wifi Smart Led Lights 220v die-castinting aluminum IP66 waterproof grade light housing new
Outdoor Sensor Post Top 50w Wifi Smart Led Lights 220v die-castinting aluminum IP66 waterproof grade light housing new
Specifications
Brand Name :
Die-casting Man
Model Number :
YASL-13
Certification :
CE ROHS ENEC
Place of Origin :
CHINA
MOQ :
1 PCS
Price :
USD28/PCS
Supply Ability :
30pcs/per day
Delivery Time :
25 days
Packaging Details :
PE bag+bubble+carton
Material :
ADC 12 Aluminum
Input Wattaage :
50~150w
Color Temperature :
3000/4000/6500K
Color Rendering Index :
Ra≥70
LED Lifetime :
50000h
Protection Grade :
IP66 IK08
Temperature of working condition :
-40~50℃
Power Factor :
PF≥0.95
Description

Outdoor Sensor Post Top 50w Wifi Smart Led Lights 220v die-castinting aluminum IP66 waterproof grade light housing new
50W 60W 70W 80W 90W 100W 120W 150W
Road Outdoor LED street light housing IP66 Aluminum die-casting housing

Material:ADC12 AluminumWattage:50~150W
IP:65CRI:≥70
Color Temperature:3000/40000/6500KInput Voltage:AC90 - 265V
Frequency Range:50 - 60HzWorking Ambient Temperature:-40℃ - 50℃
Working Ambient Humidity:20% - 90%RHLED Lifetime:50000h

Part Number:YASL-13
Production Lead Time:7-30 Days
MOQ:1 PCS
Shipping:EXW / FOB NINGBO
Finish Color:Double gray;Sandy black;

Prodcut Specification

Prodcut CodeYASL-13-50YASL-13-100YASL-1
Input Wattage30W/40W/50W60W70W80W100W120W/150W
Color Temperature3000/4000/6500K3000/4000/6500K3000/4000/6500K
Luminous Flux5750~6250lm11500~12500lm16500~18750lm
Input VoltageAC90~305VAC90~305VAC90~305V
Frequency Range50/60Hz50/60Hz50/60Hz
Power FactorPF≥0.95PF≥0.95PF≥0.95
Color Rendering IndexRa≥70Ra≥70Ra≥70
Working Temperature-40~50℃-40~50℃-40~50℃
Humidity of Working Condition20%~90%RH20%~90%RH20%~90%RH
LED Lifetime50000H50000H50000H
Protection GradeIP66IP66IP66
Installation Pipe Diameterφ60mmφ60mmφ70mm
Installation Height4~8m6~10m8~12m
Net Weight3.9kgs5.4kgs9.8kgs
Gross Weight4.6kgs6.5kgs11.50kgs

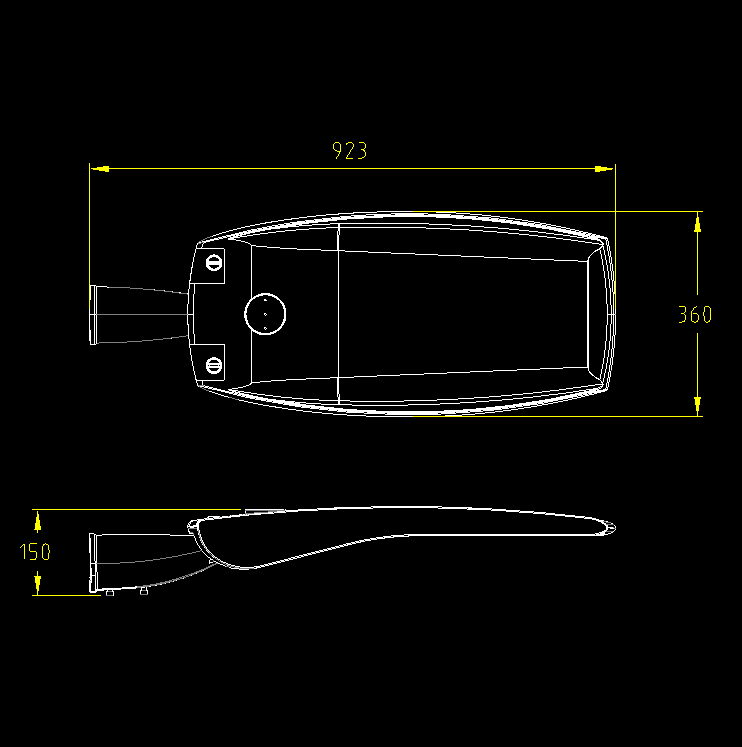

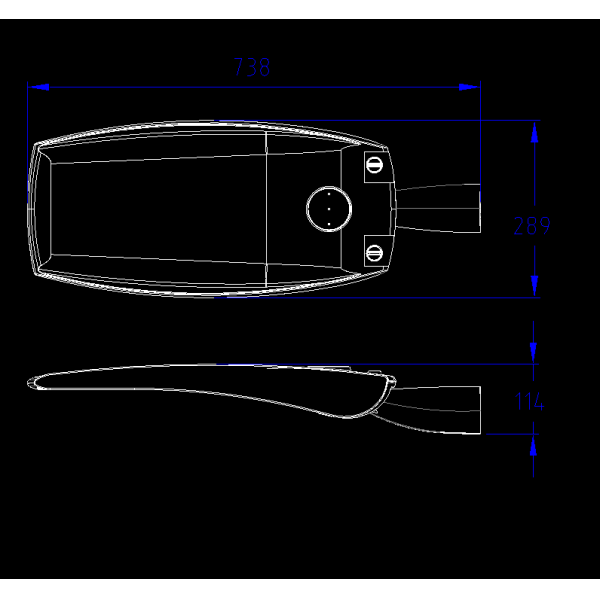

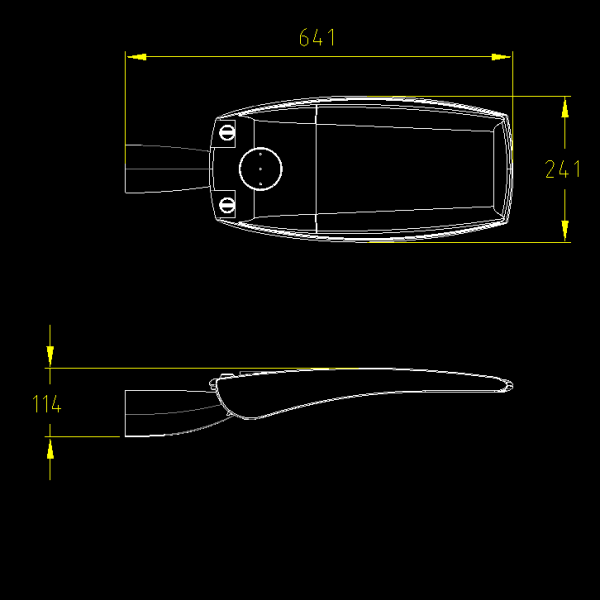

Product Size695x285x130mm790x340x135mm970x415x180mm

YASL-13-50

Outdoor Sensor Post Top 50w Wifi Smart Led Lights 220v die-castinting aluminum IP66 waterproof grade light housing new

YASL-13-100

Outdoor Sensor Post Top 50w Wifi Smart Led Lights 220v die-castinting aluminum IP66 waterproof grade light housing new

Outdoor Sensor Post Top 50w Wifi Smart Led Lights 220v die-castinting aluminum IP66 waterproof grade light housing new

Outdoor Sensor Post Top 50w Wifi Smart Led Lights 220v die-castinting aluminum IP66 waterproof grade light housing new

YASL-13-150

Outdoor Sensor Post Top 50w Wifi Smart Led Lights 220v die-castinting aluminum IP66 waterproof grade light housing new


Outdoor Sensor Post Top 50w Wifi Smart Led Lights 220v die-castinting aluminum IP66 waterproof grade light housing new

Electrical

· Standard AC input of 90-305V,up to 480v available

· EMI filter: 47CFR, part 2, part 15

· Power factor: >0.9

· Total harmonic distortion: <20%

· Surge protection: IEC/EN 61000-4-5 EMC test standard

· Licensed electrician required for installation

Housing

· Rugged, fully sealed, die-cast aluminum housing

· UV-resistant, multi-layer, architectural color, powder coat finish

· High impact, heat resistant, tempered lens

Energy Control Options

· Motion detection available

· Photo sensors available

Outdoor Sensor Post Top 50w Wifi Smart Led Lights 220v die-castinting aluminum IP66 waterproof grade light housing new
