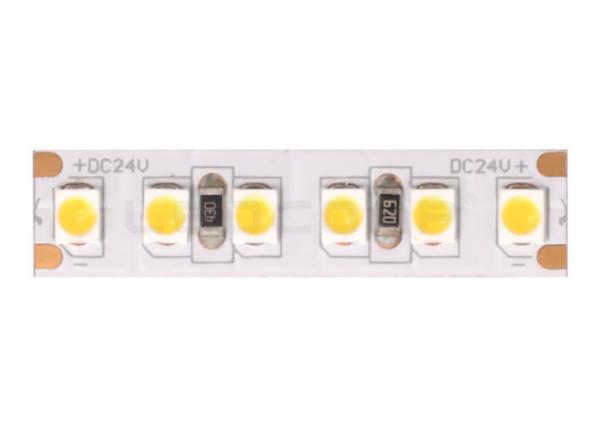

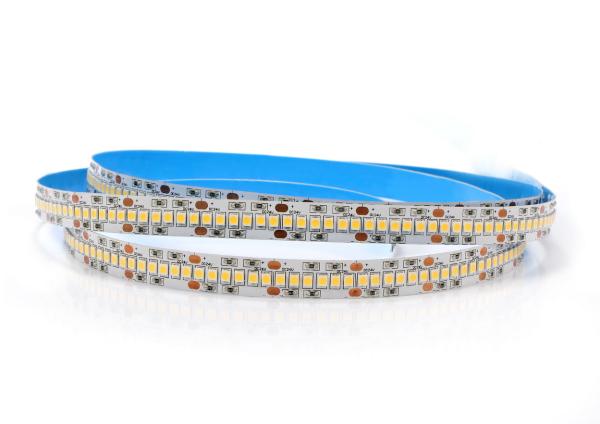

High power Super bright 2835 240LEDs SMD High Lumen LED Strip Lighting 57.6w/m UL CE ROHS 3M tape
High power Super bright 2835 240LEDs SMD High Lumen LED Strip Lighting 57.6w/m UL CE ROHS 3M tape
High power Super bright 2835 240LEDs SMD High Lumen LED Strip Lighting 57.6w/m UL CE ROHS 3M tape
High power Super bright 2835 240LEDs SMD High Lumen LED Strip Lighting 57.6w/m UL CE ROHS 3M tape
High power Super bright 2835 240LEDs SMD High Lumen LED Strip Lighting 57.6w/m UL CE ROHS 3M tape
High power Super bright 2835 240LEDs SMD High Lumen LED Strip Lighting 57.6w/m UL CE ROHS 3M tape
High power Super bright 2835 240LEDs SMD High Lumen LED Strip Lighting 57.6w/m UL CE ROHS 3M tape
High power Super bright 2835 240LEDs SMD High Lumen LED Strip Lighting 57.6w/m UL CE ROHS 3M tape
Specifications
Brand Name :
LEDCORP
Model Number :
LC240-N2835-W
Certification :
ISO9001:2008, ISO9001:2015
Place of Origin :
CHINA
MOQ :
250M
Price :
Welcome to your inquiry
Payment Terms :
T/T,PayPal
Supply Ability :
500,000m per month
Delivery Time :
15 days
Packaging Details :
11kg/ctn
Led :
2835
Qty/m :
240 LEDs
IP :
IP20
Ra :
80-90
Voltage :
24V
Chip :
Epistar/SanAn
CCT :
2700-6500K
Warranty :
3-5 years
Power :
57.6w/m
PCB :
12mm
Angle :
120°
Temp :
-30°C - 60°C
Lifetime :
>35000hours
Weight :
0.1kg/roll
Packing :
5m/roll
Shipping :
100rolls/ctn
Lumen/m :
5068 lm - 5472 lm
Brightness :
90-100lm/w
Description

57.6w/m 2835 High Lumen LED Strip Lighting 240 LEDs/m High power Super bright 2835 240LEDs SMD High Lumen LED Strip Lighting 57.6w/m UL CE ROHS 3M tape 2835 240 High.pdf

High power Super bright 2835 240LEDs SMD High Lumen LED Strip Lighting 57.6w/m UL CE ROHS 3M tape

High power Super bright 2835 240LEDs SMD High Lumen LED Strip Lighting 57.6w/m UL CE ROHS 3M tape

Product advantages:

  • Color Consistency, only one bin
  • High Efficacy, 90-165lm/w
  • High CRI, 80+,90+,95+
  • Color purity: we use quality chip, phosphor golden wires and copper holder, make the SDCM<4
  • Long Lifespan: >35000 Hrs
  • No dark and uninterrupted Led strip
  • High brightness, low decay, low power consumption, LM-80 Tested
  • Be able to give soul space, and increase the dynamics of the space, making the space brighter.

Features:

  • High brightness, low decay, stable quality,
  • PCB color: white, brown, black, customized logo on PCB is available
  • DC12V strips can ben cust every 3 SMDs, DC24 strips can be cut every 6 LEDs
  • Warm white: 2400K / 2700K - 3000K,
  • Natural white: 4000K - 4500K,
  • White: 5000K - 5500K / 6000K - 6500K
  • Different connectors are easy for you to connect the cut parts
  • 3M adhersive tape
  • OEM / ODM are welcomed.
  • Available in IP20, IP44, IP65, IP67, IP68 rating and nano series

Technical details:

Details

Item

Unit

Specification

Physical data

LED type

SMD

2835SMD

LED Qty /meter

LED/m

240

Dimensions

mm

12*2.2*5000 (W*H*L)

Type of protection

IP

IP20 / IP65 / IP66 / IP67 / IP68

Working temperature

°C

-30°C - 60°C

Electrical data

Power

w/m

57.6w

Voltage

VDC

24V

Optical data

Luminous flux

lm/m

5068 - 5472

Beam angle

degrees

120

Light color

　

Warm white/Natural white/White

Color BINs

　

1 BIN

Color temperature

K

Warm white:2400 / 2700-3000

Natural white :4000-4500

White: 5000-5500 / 6000-6500

Color rendering index

CRI

80-90

Order reference

HS code

94054090

Part. no

LC240-N2835-w/ww/nw-IP20-12/24

LC240-W2835-w/ww/nw-IP65-12/24

LC240-W2835-w/ww/nw-IP68-12/24

High power Super bright 2835 240LEDs SMD High Lumen LED Strip Lighting 57.6w/m UL CE ROHS 3M tapeHigh power Super bright 2835 240LEDs SMD High Lumen LED Strip Lighting 57.6w/m UL CE ROHS 3M tape

High power Super bright 2835 240LEDs SMD High Lumen LED Strip Lighting 57.6w/m UL CE ROHS 3M tape

High power Super bright 2835 240LEDs SMD High Lumen LED Strip Lighting 57.6w/m UL CE ROHS 3M tape

High power Super bright 2835 240LEDs SMD High Lumen LED Strip Lighting 57.6w/m UL CE ROHS 3M tape

High power Super bright 2835 240LEDs SMD High Lumen LED Strip Lighting 57.6w/m UL CE ROHS 3M tape

Installation:

High power Super bright 2835 240LEDs SMD High Lumen LED Strip Lighting 57.6w/m UL CE ROHS 3M tape

Packing details:

Items

Packaging unit

meters per box

reels per box

Dimensions(mm) LxWxH

Gross weight(kg)

Volume(cbm)

IP20 Strips

One Pack

5m

1reel

150*150*12

0.11

0.00027

Shipping box

500m

100reel

500*350*250

12

0.04375

IP65 / IP68 Strips

One Pack

5m

1reel

220*220*13

0.22

0.00063

Shipping box

250m

50reel

500*350*250

12

0.04375

High power Super bright 2835 240LEDs SMD High Lumen LED Strip Lighting 57.6w/m UL CE ROHS 3M tape

High power Super bright 2835 240LEDs SMD High Lumen LED Strip Lighting 57.6w/m UL CE ROHS 3M tape

High power Super bright 2835 240LEDs SMD High Lumen LED Strip Lighting 57.6w/m UL CE ROHS 3M tape
