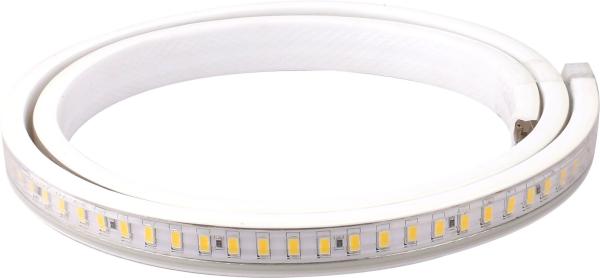

5730 120 LEDs House High Voltage LED Strip Lighting , Decorative Strip Light 14W / M
5730 120 LEDs House High Voltage LED Strip Lighting , Decorative Strip Light 14W / M
Specifications
Brand Name :
LEDCORP
Model Number :
LC120-HV5730-WW/NW/W-110/220
Certification :
ISO9001 , CE , RoHS
Place of Origin :
China
MOQ :
50meters/roll
Price :
Negotiation
Payment Terms :
T/T , PayPal
Supply Ability :
100,000meters per month
Delivery Time :
15-20 working days
Packaging Details :
100meters / carton
LED :
5730
Qty/m :
120 LEDs/m
Voltage :
110V/220V
Power :
14 w/m
CCT :
2700-6500K
Packing :
50 m/roll
CRI :
80
Efficacy :
80 lm/w
Angle :
120°
Dimension :
18mm*50000mm*8mm
Weight :
7 kg/roll
Warranty :
2 yrs
Description

5730 High Voltage LED Decorative Strip 14w/m 5730 120 LEDs House High Voltage LED Strip Lighting , Decorative Strip Light 14W / M 5730 120 HV.pdf

5730 120 LEDs House High Voltage LED Strip Lighting , Decorative Strip Light 14W / M

Product features:

  • 5730SMD Epistar Chip Light source
  • High voltage version, directly connect 110v/220v, no need led power supply
  • High brightness, low decay, stable quality, long lifespan
  • Easy to use and install, 50m/reel, IP67 protection, install with clips or glues
  • Non-dimmable, 4 BINS, 2700-6500K


Application area:

  • Cove lighting using For AC110-220V
  • Architectural lights
  • Backlight or edge lighting for signage
  • DIY lights for home use
  • Path and contour marking
  • Decorative lights for holiday, event, show, exhibition, hotel


Dimension:
5730 120 LEDs House High Voltage LED Strip Lighting , Decorative Strip Light 14W / M
IP rating: IP67


Technical details:

Details

Item

Unit

Specification

Physical data

LED type

SMD

5730SMD

LED Qty /meter

LED/m

120

Dimensions

mm

18mm*50000mm*8mm

Type of protection

IP

IP67

Working temperature

°C

0-40°C

Electrical data

Power

W/m

14W / m

Voltage

VDC

110VAC / 220VAC

Optical data

Luminous flux

LM/m

1835LM / m

Beam angle

degrees

120

Light color

　

Warm white / Natural white / Cool White / Red / Yellow / Green / Blue

Color BINs

　

5 BINs

Color temperature

K

WW : 2700 - 3000K

NW : 4000 - 4500K

CW : 6000 - 6500K

Color rendering index

CRI

70-90

Order reference

HS code

94054090

Part. no

LC120-HV5730-W-110/220

LC120-HV5730-WW-110/220

LC120-HV5730-NW-110/220



Installation details:


5730 120 LEDs House High Voltage LED Strip Lighting , Decorative Strip Light 14W / M


5730 120 LEDs House High Voltage LED Strip Lighting , Decorative Strip Light 14W / M


Packing details:

Items

HS code

Packaging unit

meters per box

reels per box

Dimensions(mm) LxWxH

Gross weight

Volume(cbm)
HV Led Strip

94054090

Shipping carton box

100m

2reels

500*350*250

12kg

0.04375


5730 120 LEDs House High Voltage LED Strip Lighting , Decorative Strip Light 14W / M

5730 120 LEDs House High Voltage LED Strip Lighting , Decorative Strip Light 14W / M

5730 120 LEDs House High Voltage LED Strip Lighting , Decorative Strip Light 14W / M

5730 120 LEDs House High Voltage LED Strip Lighting , Decorative Strip Light 14W / M

5730 120 LEDs House High Voltage LED Strip Lighting , Decorative Strip Light 14W / M
